Description

Intimidator Spot 260X

Unlock Xcellence! Xtreme brightness! Xhilarating colors! Xact control!
Intimidator Spot 260 X is a 75-watt compact moving head packed with features for easy and powerful lighting design. This innovative mover comes equipped with an updated CTO color wheel and a new moving head home position allows smoother programming and eliminates the starting whip-around action that can be triggered by some programming looks. Convenient control options are also on board with a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes that provide an array of control options in the palm of your hand. You can also set, save, and recall one scene manually from the full color LCD display. Project crisp gobos from nearly any distance with the motorized focus and tackle short or long throw applications with the manual zoom. The 3-facet prism splits the beam and covers a larger area and beams always remain on the dance floor using the built-in, innovative Totem mode.

Highlights

    Compact moving head designed for mobile events

    Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

    New home position allows for smoother programming

    ¼-turn hanging bracket allows for quick removal when needed

    Project crisp gobos from nearly any distance with the motorized focus

    Manual zoom for short or long throw applications

    3-facet prism splits the beam and covers a larger area

    Beams always remain on the dance floor using the built-in, innovative Totem mode

    Set, save, and recall 1 scene manually, directly from the full-color LCD display

    Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode

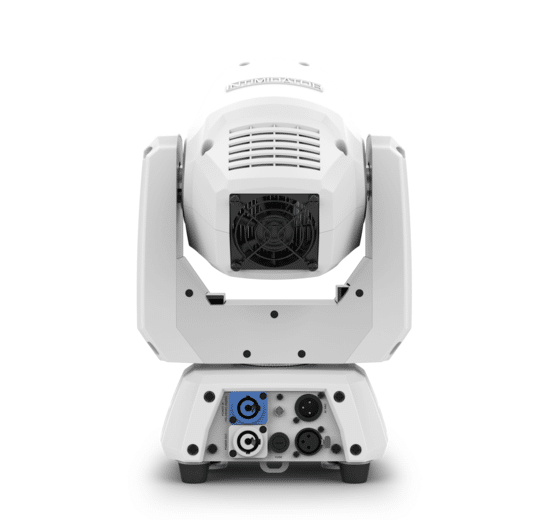

    powerCON®-compatible power input/output connections saves setup time

    Fits best in the CHS-2XX VIP Gear Bag

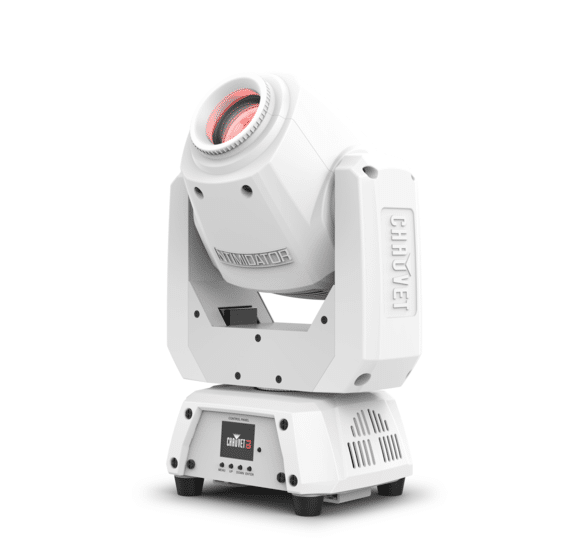

    Available in black or white to fit different applications

Specifications

    DMX Channels: 8 or 14
    DMX Connectors: 3-pin XLR
    Pan and Tilt: 540°/234°
    Pan and Tilt Ranges: 540°, 360°, 180° pan/234°, 180°, 90° tilt
    Colors: 8 + white, split colors, continuous scroll at variable speeds
    Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable
    Light Source: 1 LED (cool white) 75 W, (3.3 A), 50,000 hours life expectancy
    Strobe Rate: 0 to 20Hz
    Power Linking: 7 units @ 120 V; 11 units @ 230 V
    Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    Power and Current:
    124 W, 1.8 A @ 120 V, 60 Hz
    128 W, 1 A @ 230 V, 50 Hz
    Weight: 12.2 lb (5.6 kg)
    Size: 9.1 x 6.4 x 13.8 in (232 x 163 x 351 mm)
    Approvals: CE, UKCA, RoHS
    Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
    Prism: 3-facet round, static
    Zoom angle (manual): 12° to 17°
    Illuminance (12°) : 17,458 lux @ 2 m
    Illuminance (17°) : 12,848 lux @ 2 m
    Color Temperature: 15,000 K
    Bracket Mounting Hole: 13 mm
    Optional Controllers: RFC, RFC-XL

What’s Included

    Fixture
    Power cord
    Hanging bracket
    Quick Reference Guide
