Description

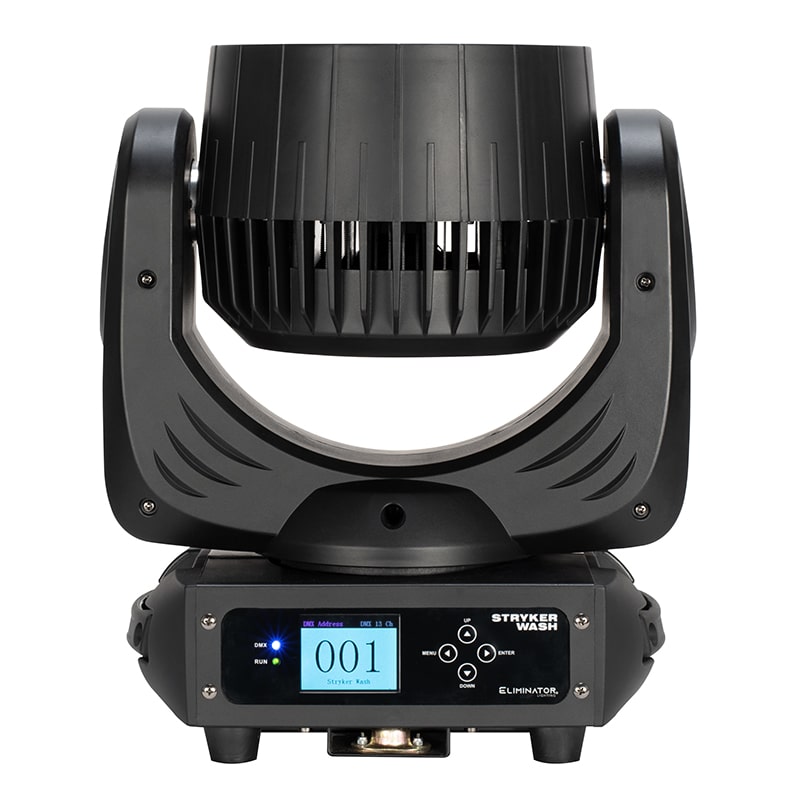

The Eliminator Lighting Stryker Wash is a 228W professional moving head wash featuring nineteen 12W 4-IN-1 (RGBW) LEDs, and motorized zoom (6 ~ 50-degrees) that allows the versatility to use this fixture as a wide wash or tight beam. Along with a massive palette of colors to choose from, the Stryker Wash also has an independent linear white color temperature control channel that can change from 3200K to 10,000K. This allows users to color correct the illumination of different skin tones of people on stage.

The Stryker Wash has motorized focus, variable strobe speeds, a 3-zone control mode with macros, and a large color display that makes navigation of the fixture’s menu system for setup and DMX addressing very easy. The fixture has fast, precise pan and tilt movements, along with fine pan/tilt, allowing for precision performance.

This fixture offers a variety of control modes, including DMX, auto and sound active. Connections include locking power in and out, and 3-pin DMX data in and out. Its compact size, light weight, power and features make the Stryker Beam ideal for venue installations, events and for mobile productions.

Light Source:

• 19x 12W RGBW (4-IN-1) LEDs

• 50,000 Hours Life

Features:

• Full color function display with 4 buttons

• Fast, precise, pan & tilt movements

• Three zone DMX control mode with macros

• Primary / Secondary stand-alone mode

• Motorized Zoom: 6 ~ 50°

• Motorized Focus

• Linear White Color Temperature DMX control channel: 3200K-10000K

• Up to 18 Strobe flashes per second

Construction:

• DMX Data In/Out: 3-pin XLR

• Power In: Blue Locking indoor power connection

• Power Out: White Locking indoor power connection

Control:

• 2 DMX channel modes: 13 & 23 channels

• Protocols: DMX-512, Auto and Sound control modes

• With Wired Digital Communication Network

Pan/Tilt:

• Pan/Tilt: 540-degrees / 210-degrees

• 16-bit Fine Pan

• 16-bit Fine Tilt

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz

• Maximum power draw: 300W

• Power daisy chain: 2 units @120V, 3 units @230V

• On/Off switch

Dimensions & Weight:

• Dimensions (LxWxH): 7.41” x 12.8” x 15.6” / 188x325x396mm

• Weight: 21.4 lbs. / 9.7 kg.

Technical:

• Operating environment: Indoor 5°~104°F (-15º-40ºC)

• Fan Cooled

• Housing: Black Composite Plastic

Approval / IP Rating

• CE | IP20

What’s included:

• Locking power cord

• Omega bracket

Stryker Beam

Powered by an efficient 100W LED light engine, the Eliminator Lighting Stryker Beam is a dedicated beam moving head designed to create dazzling aerial effects. This fast and punchy fixture offers a full complement of beam-shaping tools, allowing it to be used to generate of a wide variety of engaging looks.

Suitable for installation in nightclubs and other entertainment venues, as well as for mobile use by production companies and entertainers, Eliminator Lighting’s Stryker Beam is a potent moving head beam fixture. It focuses the light from a powerful 100W LED light engine through high quality optics to create a razor-sharp output that will punch through background lighting to create piercing mid-air effects.

The Stryker Beam offers fast, precise movement as well as a diverse collection of beam-shaping tools, which provide lighting designers lots of creative potential. A dedicated GOBO wheel features 11 die-cut metal shapes (plus open), which include two beam reducer options alongside a carefully curated selection of patterns designed for generating aerial effects. A motorized focus function allows GOBOs to be kept sharp, while a separate color wheel offers 13 vibrant options (plus white) and an additional 6-color flag allows the creation of multi-colored beam effects, A built-in frost filter allows the fixture to switch from a hard-edge beam to a soft wash of light. Finally, two circular rotating prisms are provided, 8-facet and 16-facet, which can be used to split up the narrow beam into a wider break-apart effect. Both prisms may be layered for an animated effect.

For a fixture of its class, the Stryker Beam is a compact and lightweight moving head, which is easily portable. It features a large full color display screen, providing access to an intuitive menu-driven interface for DMX addressing and customization of the unit’s operating parameters. It features locking power input and output sockets, to allow multiple fixtures to daisy chain from a single outlet, together with both 3-pin and 5-pin DMX sockets for easy integration into any existing DMX system.
LIGHT SOURCE:
• 100W LED Engine
• 6-Degree Beam Angle

FEATURES:
• Full color function display with 4 buttons
• Fast, precise, pan & tilt movements
• Primary / Secondary stand-alone mode
• Motorized Focus
• Frost Filter (50-Degree Wash Effect)

COLOR WHEEL:
• 13 colors + open
• Separate 6-Color flag for multi-color effects

GOBO WHEEL:
• Metal wheel with 11 GOBOS + open (2 are beam reducers)
• GOBO Shake Effect

PRISM WHEEL:
• 8-facet rotating circular prism
• 16-facet rotating circular prism
• Prism layering

CONTROL:
• 2 DMX channel modes: 6 & 19 channels
• Protocols: DMX-512, RDM, Auto and Primary/Secondary control modes
• Electronic Dimmer: 0- 100 %
• Variable Strobe: 0-20HZ
• With Wired Digital Communication Network

CONNECTIONS:
• DMX Data In/Out: 3-pin & 5-pin connections
• Power In: Blue Locking indoor power connection
• Power Out: White Locking indoor power connection

PAN/TILT:
• Pan/Tilt: 540-degrees / 270-degrees
• 16-bit Fine Pan
• 16-bit Fine Tilt

ELECTRICAL:
• Multi-voltage operation: AC 100-24V, 50/60Hz
• Maximum Power Consumption: 150W
• Power daisy chain: 2 units @120V, 3 units @230V

DIMENSIONS & WEIGHT:
• Dimensions (LxWxH): 7.875” x 11.875” x 18.3125” / 200x302x465mm
• Weight: 29 lbs. / 12.8 kg.

WHAT’S INCLUDED:
• Locking power cord
• Omega bracket
