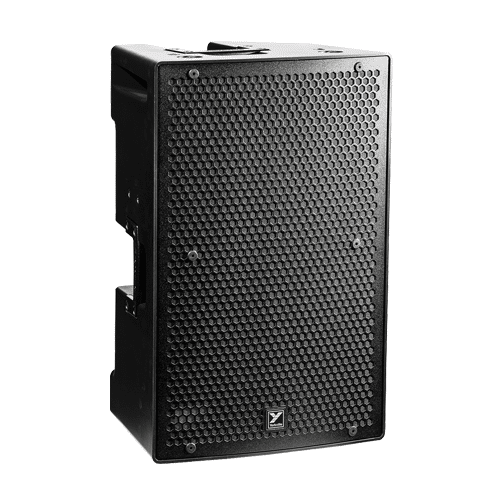

Yorkville PS15P 15″ Powered Speaker display model

$1,359.00

In Stock and ready to Ship!
Orders placed by 2:00 ET ship the same day
(Business days ony)

Free Shipping

-

In stock

SKU: PS15P-U Category: Brand:

Description

Overview

Integrated DSP ensures the PS15P can operate in any application
without complex external processing. A simple one-button high pass
filter switch rolls off low frequency material when PS15P is used with
any Paraline Series or powered élite System subwoofer. Bass boost
delivers remarkably improved bottom end response from the PS15P without
cluttering midrange program or affecting the cabinet’s overall
intelligibility – making it the perfect small speaker solution for
larger events where additional subwoofer support is not available.

Innovative multi-band limiting allows the cabinet to deliver maximum
output and remarkably event frequency response while protecting the
PS15P’s speaker components. Unlike competitive powered cabinets, the
Parasource Series multi-band limiting scheme ensures essential elements
like vocals and solo instruments in the essential midrange band aren’t
being modulated by transient attacks of low frequency material like kick
drums and bass tracks. This delivers an extremely smooth and precise
mix even at the highest output levels the cabinet can produce.

Designed for maximum versatility, the PS15P works equally well as a
Front-of House cabinet, side fill cabinet or floor monitor. Innovative
and highly efficient passive cooling scheme ensures the PS15P will
operate in any environment without need of noisy internal dust
collecting fans. Integrated reinforced flypoints ensure the PS15P can be
flown quickly and easily in any fixed installation.

Rugged yet lightweight ABS cabinet and baffle design ensure unmatched long term reliability in the field.

Specifications

System Type Active Loudspeaker
Active or Passive Active
Program Power (Watts) 1400 watts (4400 watts peak)
Max SPL (dB) 134dB Peak (129dB Continuous)
Frequency Response (Hz +/- 3dB) 45Hz to 26kHz
Crossover Frequency (Hz) 1.0kHz
Driver Configuration 15-inch / 1-inch
HF Driver(s) 38mm Voicecoil w/ 1-inch Exit
HF Dispersion (°H x °V) 85 x 50
HF Protection Thermal/Peak Limiter
LF Driver(s) 15-inch (3 inch voicecoil)
LF Protection Thermal/Multiband Peak Limiter
MF Processing Dynamic Bass Extension
Cooling Scheme Passive
Power Cable Detachable IEC
Power Consumption (typ/max) 2.4A/3.0A @ 120Vac 1.2/2.5 A @230Vac
Inputs 1/4-inch, XLR, RCA
Inputs – 1/4″ Jacks Yes (x2)
Inputs – XLR Yes (x2)
Input Sensitivity (Vrms Sine) 1.23 Vrms +4dBu

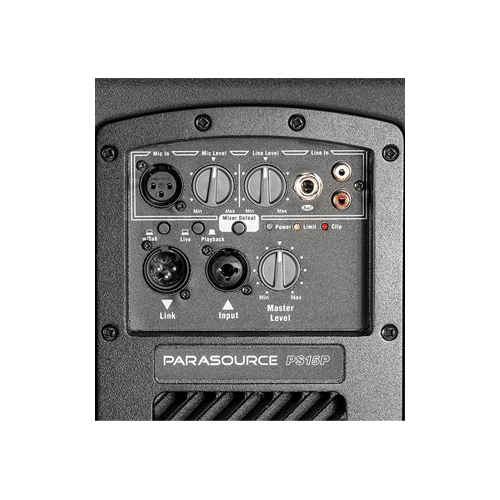

Mixer Controls Sub Mode HPF, Bass Boost, Mixer Enable
Level Controls Master Level, Mic Level, Line Level
LED Indicators Power, Limit, Clip
Bar Handles Yes
Flying Hardware EYEBOLT1/4A
Pole Mount Adapter (1 3/8″-3.5cm) Yes
Enclosure Materials ABS
Baffle Material ABS
Grille Perforated Metal
Dimensions (DWH xbackW, inches) 14.2 x 20.5 x 30.75
Dimensions (DWH xbackW, cm) 36.1 x 52.1 x 78.1
Weight (lbs/kg) 65 / 29.5
