Shure PGAStudioKit4 4-Piece Studio Microphone Kit

$395.00

In Stock and ready to Ship!
Orders placed by 2:00 ET ship the same day
(Business days ony)

Free Shipping

-

In stock

SKU: PGASTUDIOKIT4 Category: Brand:

Description

Shure PGA-Studio Overview

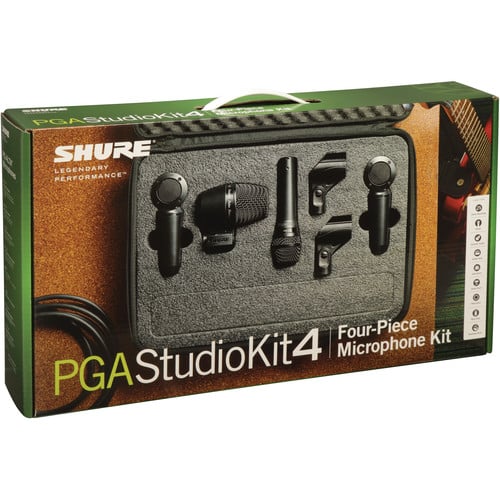

Giving you a flexible solution for a variety of recording scenarios, the PGAStudioKit4 Studio Microphone Kit from Shure
consists of their PGA52 kick drum mic, their PGA57 instrument mic, a
pair of their PGA181 large diaphragm condenser mics, 3 mic clips, 4 XLR
cables, and a carrying case. The mics can be used in any number of
recording scenarios, including drums, guitar, bass, vocals, and more.

Shure PGA-Studio Specs

Type PGA52: Dynamic (moving coil)

PGA57: Dynamic (moving coil)

PGA181: Electret Condenser
Frequency Response PGA52: 50 Hz to 12 kHz

PGA57: 70 Hz to 15 kHz
PGA181: 50 Hz to 20 kHz
Polar Pattern All Mics: Cardioid
Output Impedance PGA52: 150 ohms

PGA57: 150 ohms
PGA181: 120 ohms
Sensitivity PGA52: -55 dBV/Pa (1.75 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
PGA57: -56 dBV/Pa (1.5 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
PGA181: -38 dBV/Pa (12.7 mV), 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
Polarity All Mics: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Output Connector All Mics: 3-pin XLR male
Cable Length 15′ (4.6 m)
Power Requirements PGA52: N/A

PGA57: N/A
PGA181: 48 VDC phantom power (4 mA)
Operating Temperature All Mics: -20 to 165°F (-29 to 74°C)
Operating Humidity All Mics: 0 to 95%
Dimensions Not specified by manufacturer
Weight PGA52: 16.01 oz (454 g)

PGA57: 9.9 oz (280 g)
PGA181: 13.5 oz (383 g)
