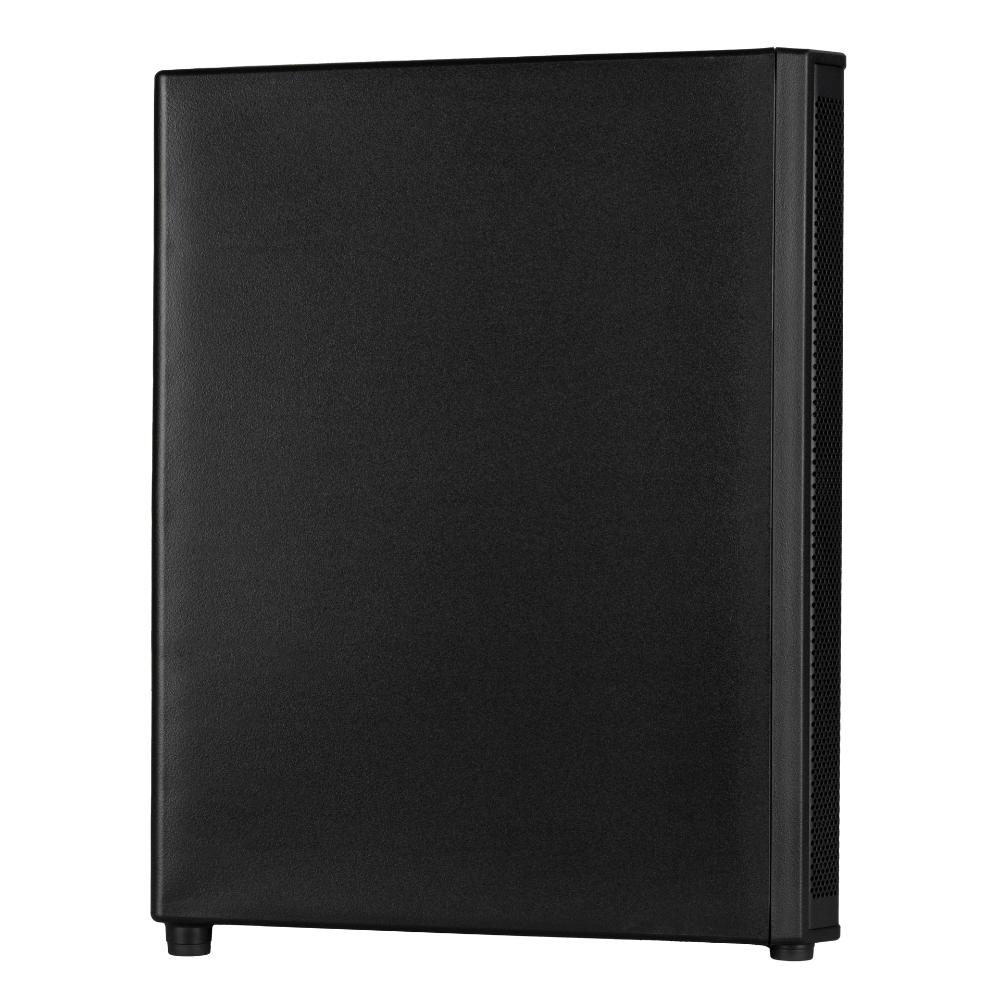

RCF EVOX JMIX9 Active 2100w 12″ Three-way Column Array with 8 Channel Mixer and Bluetooth

Description

Features
8-Ch True-Stereo Digital Mixer w/ Bluetooth®
130 dB Max SPL
2100 W Class-D Amplifier – Built-In DSP
1.75” Neo Compression Driver – 120° X 40° True Resistive Waveguide
6 × 3” Full-Range Neo Transducers
12” High-Power Woofer
Enhanced Coverage And Clarity
Sleek Composite Cabinet With Aluminum Stand Mount
Top Speaker Padded Carrying Bag Included
EVOX JMIX9 is a three-way active portable system with an integrated 8-channel stereo digital mixer featuring a color touch display, encoders, Bluetooth® streaming, and full remote control. Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. A 1.75” compression driver on a 120° × 40° True Resistive Waveguide delivers wide, uniform coverage, while six 3” transducers and a high-power 12” bass-reflex woofer provide articulate mids and deep, controlled lows. Powered by a 2100 W Class-D amplifier for up to 130 dB Max SPL, the system includes combo inputs, stereo/aux out, EQ, reverb, phantom power, and Bluetooth audio. All functions are accessible from the touch interface or the JMixRemote app.

NEW
Part number:

13000930
EVOX JMIX9
220-240V, Black, EAN 8024530024130

13000931
EVOX JMIX9
100-120V, Black, EAN 8024530024178

13000985
EVOX JMIX9 W
220-240V, White – RAL 9003, EAN 8024530024444

13000986
EVOX JMIX9 W
100-120V, White – RAL 9003, EAN 8024530024475

EVOX JMIX9
THE ALL-IN-ONE SOLUTION
ANY VENUE, ANY EVENT
Combining the clarity and power of the J9 with digital mixing, flexible routing, and wireless management, EVOX JMIX9 delivers professional performance across the entire signal chain. It’s the ideal solution when a compact, all-in-one sound system is required. Best-in-class sound, power and reliability, with RCF-engineered components, premium materials, and a studio-quality signal chain.
8-Channel Stereo Digital Mixer.
The JMIX9 model integrates a powerful 8-channel stereo digital mixer, delivering a complete, portable solution for performers, DJs, bands, and presenters. A bright 2.4” color touch display with physical encoders provides fast, intuitive access to all functions, while the JMixRemote app for iOS and Android enables wireless mixing and system management.
Responsive Image
Studio-Quality Input Section
JMIX9 is equipped with four MIC/LINE inputs with combo connectors, high-performance THAT® preamps, (each with individual phantom power) and digital gain control. Inputs 1–4 can be linked as stereo pairs for keyboards, instruments, or playback sources. Inputs 5–8 include a stereo TRS line input and a stereo 3.5 mm input shared with Bluetooth® connectivity for audio streaming. Each input channel offers a high-pass filter, compression, and a 3-band EQ for precise tonal shaping. Internal stereo reverb with individual send levels adds professional polish to vocals and instruments.
Designed for Practical Use
Mono/Stereo operation, with dedicated XLR out for stereo pairing with EVOX J9
High-pass filter and a 3-band EQ on each channel, ch 1-4 add a one-knob compression,
Flexible Audio Ducker, Stereo Reverb send
Main Output with stereo 8-band EQ
AUX Bus with 8-band EQ, pre/post selection, and dedicated XLR output for monitoring, FX or additional output
Quick Workflow
The 2.4” color touch display interface is optimized for clear, efficient control, complemented by high-quality endless encoders and gesture support for accelerated workflow. A dedicated Main Level control ensures straightforward control at all times. EQ Fast Edit provides instant access to EQ curves with automatic zooming for accurate parameter control. A fully assignable MULTI pushbutton gives quick access to essential tasks, including All Mute, Attenuation, FX Mute, Ducker and more. Scene save/load capability allows instant recall of performance setups. A screen-lock function prevents accidental changes during operation.

AUX Send
Mixer View: Main Mix, FX send, AUX send
Gesture-based switching between views for fast access
Full stereo operation when paired with an EVOX J9
(stereo link-pairing)
Output EQ
Access: press MAIN LEVEL encoder
8-band stereo EQ on Main Mix
4 encoders mapped to EQ band parameters

Programmable MULTI KEY button
Path: SETTINGS > UTILITIES > MULTI FUN KEY
Assignable MUTE: All Outputs, AUX Out, FX Return
Input Edit Page
Access: press/click selected input encoder
Input channel edit: HPF, 3-band EQ, Compressor, Pan
Inputs 1–4: MIC/LINE selection, Gain, per-channel +48 V
6-encoders row reassigned per function

WIRELESS CONTROL
JMIXRemote App
The JMixRemote App provides complete wireless control of every function from any iOS or Android smartphone via Bluetooth Low Energy (BLE) link. The App is compatible with both JMIX8 and JMIX9, ensuring a unified control experience across the EVOX series. An optional security PIN prevents unauthorized connections (JMIX9 only).
