RCF EVOX-J9 Active 2100w 12″ Three-way Column Array + Cover + XLRs

Description

Features
130 dB Max SPL
2100 W Class-D Amplifier – Built-In DSP
1.75” Neo Compression Driver – 120° X 40° True Resistive Waveguide
6 × 3” Full-Range Neo Transducers
12” High-Power Woofer
Enhanced Coverage And Clarity
Composite Cabinet With Aluminum Stand Mount
Sleek, Road-Ready Design
Top Speaker Padded Carrying Bag Included

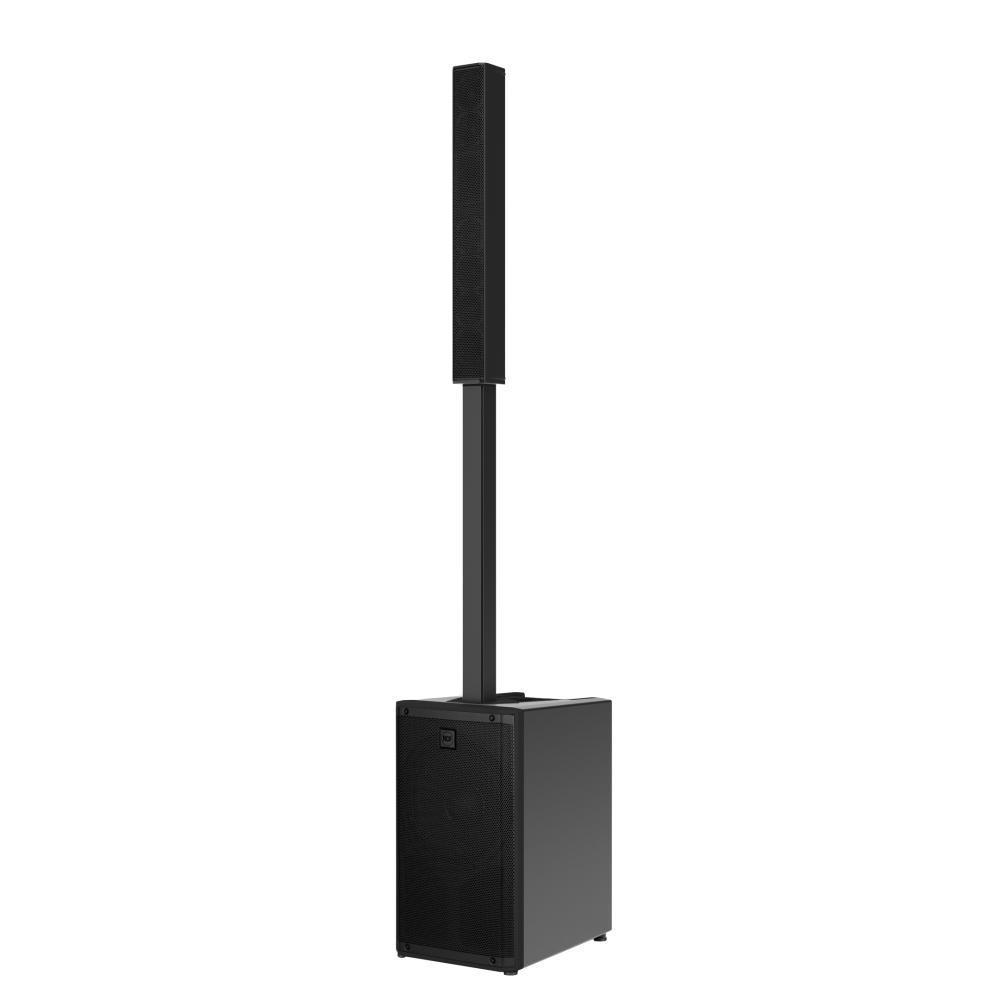

EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

NEW
Part number:

13000928
EVOX J9
220-240V, Black, EAN 8024530024123

13000929
EVOX J9
100-120V, Black, EAN 8024530024161

13000983
EVOX J9 W
220-240V, White – RAL 9003, EAN 8024530024437

13000984
EVOX J9 W
100-120V, White – RAL 9003, EAN 8024530024468

EVOX J9
ELEVATE YOUR SOUND
EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. With a streamlined aesthetic, the premium composite design delivers unparalleled acoustic fidelity, raw power, and ease of deployment. EVOX J9 is the perfect fusion of Italian engineering and sophisticated design, ready to elevate any setting.
2100 W
Fast Transients. Zero Compromise.
Powered by a 2100W onboard Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Three equalization presets are available: Live/Linear for perfectly flat, neutral output; Club for extended lows and crisp highs; and Voice for optimized intelligibility.
Highly energy-efficient, the J9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.

The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal’s character at any level. EVOX J9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.
Responsive Image
True 3-Way Design
Responsive Image
Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant, 120° X 40° coverage.
The forward radiation of the array of 6×3” neodymium drivers, combined with the centered waveguide, delivers a balanced point-source response.
12” RCF transducer provides deep, controlled low frequencies, ideal for bass-heavy music and high-energy performances.
Responsive Image
SUB AX ACE Presets for EVOX J
When extended, impactful low-end is required, simply add an RCF subwoofer. ACE-enabled models, starting from the SUB AX Series, include dedicated integration presets for EVOX systems, ensuring perfect tuning at the touch of a button. RCF’s Advanced Crossover Engine (ACE) precisely adjusts time delay and phase to optimize power and impact of the system.
