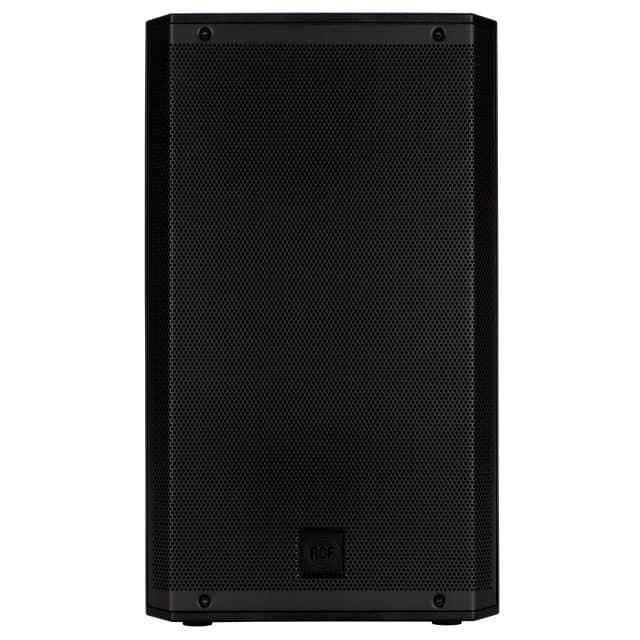

Product Description

ART 912-A is masterfully engineered to deliver
stellar audio performance and versatility for intensive audio
applications. The combination of a 1.75″ compression driver, 12″ woofer,
two-channel 2100W amplifier, and the constant directivity True
Resistive Waveguide produces coherent 100° x 60° coverage for the
listening area with up to 130 dB SPL, distortion-free sound. Used as a
stand-alone speaker for a FOH system, satellite (with subwoofer), stage
monitor, or flown, the ART 912-A packs high-performance and reliability
in a compact enclosure. Designed to be the most flexible loudspeaker in
its class, it also features multiple rigging points for fixed
installation. Merging RCF proprietary FiRPHASE and Bass Motion Control
DSP processing, perfectly tuned for each model, the audience will
experience absolute clarity and deep, powerful bass response. The sleek
cabinet uses a special polypropylene composite material with an M-brace
internal reinforcement, making it easy to carry and secure to install on
a pole, flown-, wall-, or truss-mounted using the multiple rigging
points available.

Specifications

Acoustical specifications
Frequency Response:
50 Hz ÷ 20000 Hz
Max SPL @ 1m:
130 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
60°
Transducers
Compression Driver:
1 x 1.0”, 1.75” v.c
Woofer:
12”, 2.5” v.c
Input/Output section
Input signal:
bal/unbal
Input connectors:
XLR, Jack
Output connectors:
XLR
Input sensitivity:
-2 dBu/+4 dBu
Processor section
Crossover frequencies:
1800 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
Linear, Boost, Stage, Volume
Power section
Total Power:
2100 W Peak
High frequencies:
700 W Peak
Low frequencies:
1400 W Peak
Cooling:
Convection
Connections:
VDE
Standard compliance
CE marking:
Yes
Physical specifications
Cabinet/Case Material:
PP Composite
Hardware:
1 x M10 Top, 1 x M10 each side
Handles:
1 Top , 1 each side
Pole mount/Cap:
Yes
Grille:
Steel
Color:
Black
Size
Height:
642 mm / 25.28 inches
Width:
370 mm / 14.57 inches
Depth:
363 mm / 14.29 inches
Weight:
19 kg / 41.89 lbs
