Pro X 3.28ft (1.00m) Square Truss Segment

The ProX XT-SQ328 Truss
is one the most trusted staging support systems in the industry and is
built to the highest standards of safety and performance. It’s a
rugged and durable trussing solution perfect for live outdoor
productions, nightclubs, and permanent installations.  ProX XT Series
Truss compares favorably to the other major trussing manufacturers. We
manufacture with EN-AWT6 6082 Aluminum for safety and strength.  Our XT

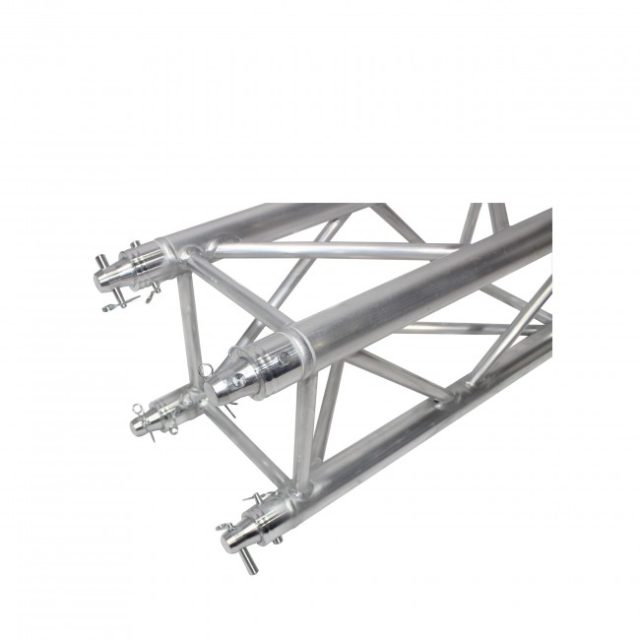

series F34 square truss utilizes a standard conical connector system,
which easily mates with other brands of the truss of the same size and
connector type, and is available in a variety of lengths to suit your
designs —  while our outstanding quality control and manufacturing
techniques assure excellent fitment at every connection. ProX offers a
wide variety of corners, base plates, connectors and accessories that
add stability while expanding on limitless design configurations.

Always know your load weight for your equipment.

• Tolerance Free Standard Conical connector
• Main tube wall thickness of .08in

XT-SQ SERIES DIMENSIONS:

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9,5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness:  .08in / 2mm
• Braces: .75in / 20mm

Actual Height:  3.28 ft (1 Meter) Square Truss Segment
Actual Weight: 19 lbs
Includes connecting hardware set.
