Pro X 100ft 4 Channel CAT6 Audio/DMX Portable Snake System

Description

Pro X 100ft 4 Channel CAT6 Audio/DMX Portable Snake System

 Additional Lengths available up to 300′

Description

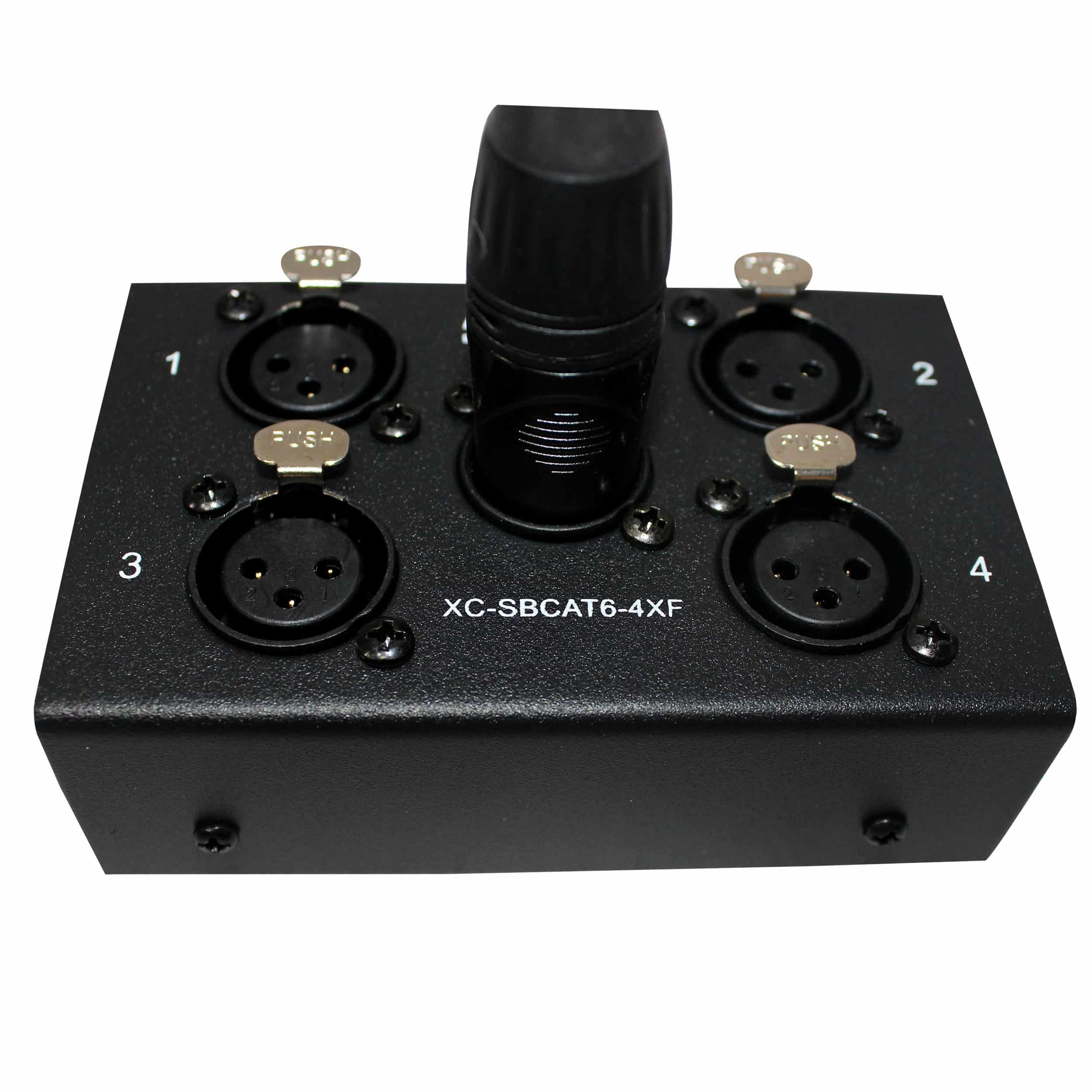

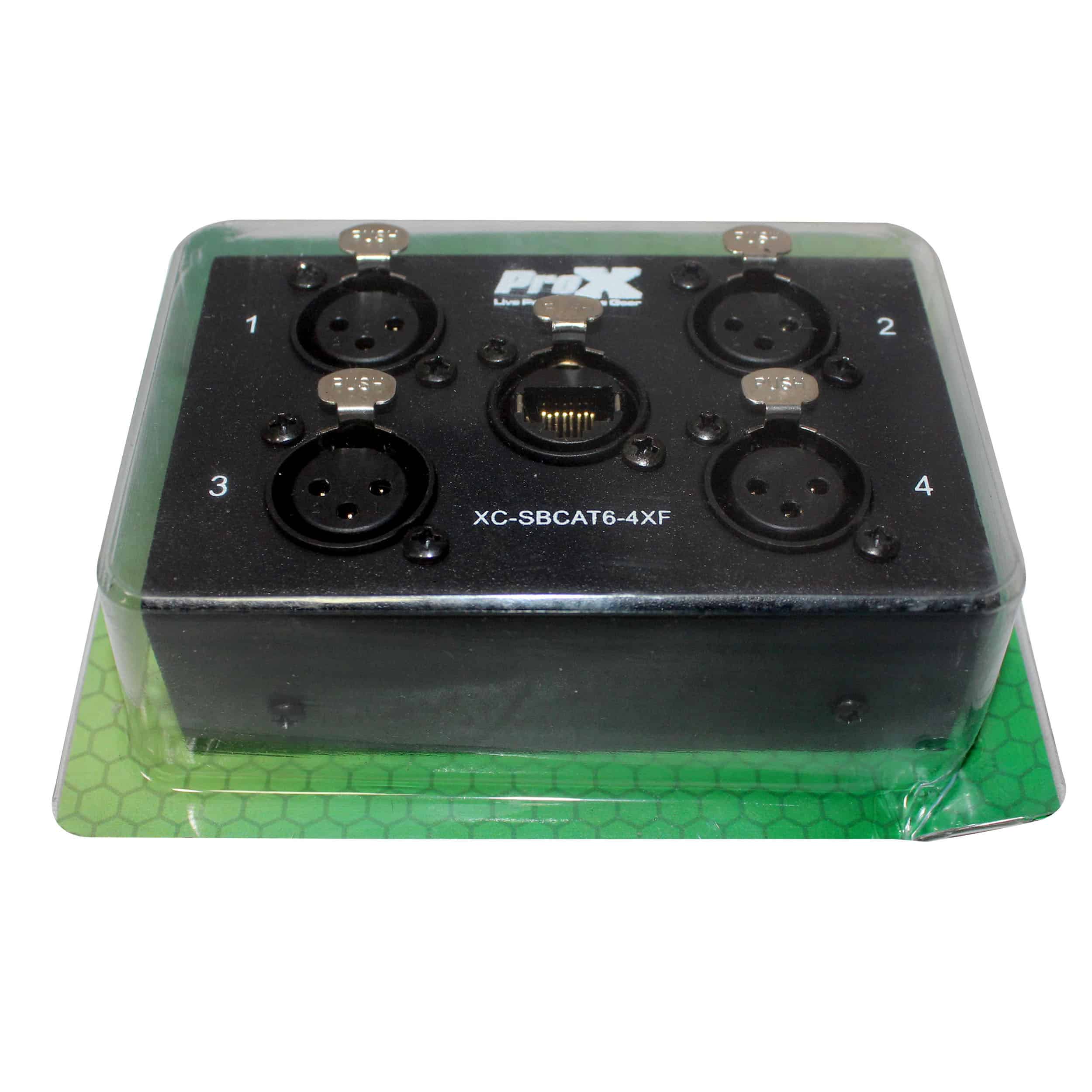

The ProX XC-SBCAT6-4XF Audio Snake Box is half of a pair of metal boxes that are used to send up to four Audio/DMX signals over a single run of CAT-5, CAT-5E or CAT-6 UTP or STP cables. They are low-cost & compact.  Both an XC-SBCAT6-4XF and an XC-SBCAT6-4XM are required for the working pair.

Designed to the highest professional standards the XC-SBCAT6-4XF Snake Box has a wide, flat frequency response

You can mix and match Mic/Line, Line or AES/EBU configurations making the Snake Box a very versatile high-quality means of transporting analog or digital signals. This Snake Box has been factory tested over CAT-5 UTP & CAT-6 STP cables.

Features

    Analogue Audio or Digital DMX
    Gold Plated Contacts
    Mic / Line / AES audio all on the same cable
    Supports 48V Phantom power (needs STP Shielded CAT-x cable
    No Ground Loops
    Add a second unit to increase the number of channels
    Rugged ‘road-ready’ construction
    RoHS Compliant
    Bandwidth: 20 Hz to 20 Khz
    Crosstalk: Better than -95 dB at 20 KHz
    Connectors: PBE-202S Sending end – 4x Female XLR to Ethercon RJ45 jack
    PBE-202R Receiving end – Ethercon RJ45 to 4x Male XLR
    Dimensions: 107mm x 70mm x 45mm
    Weight: 400 grams (0.4 Kg)

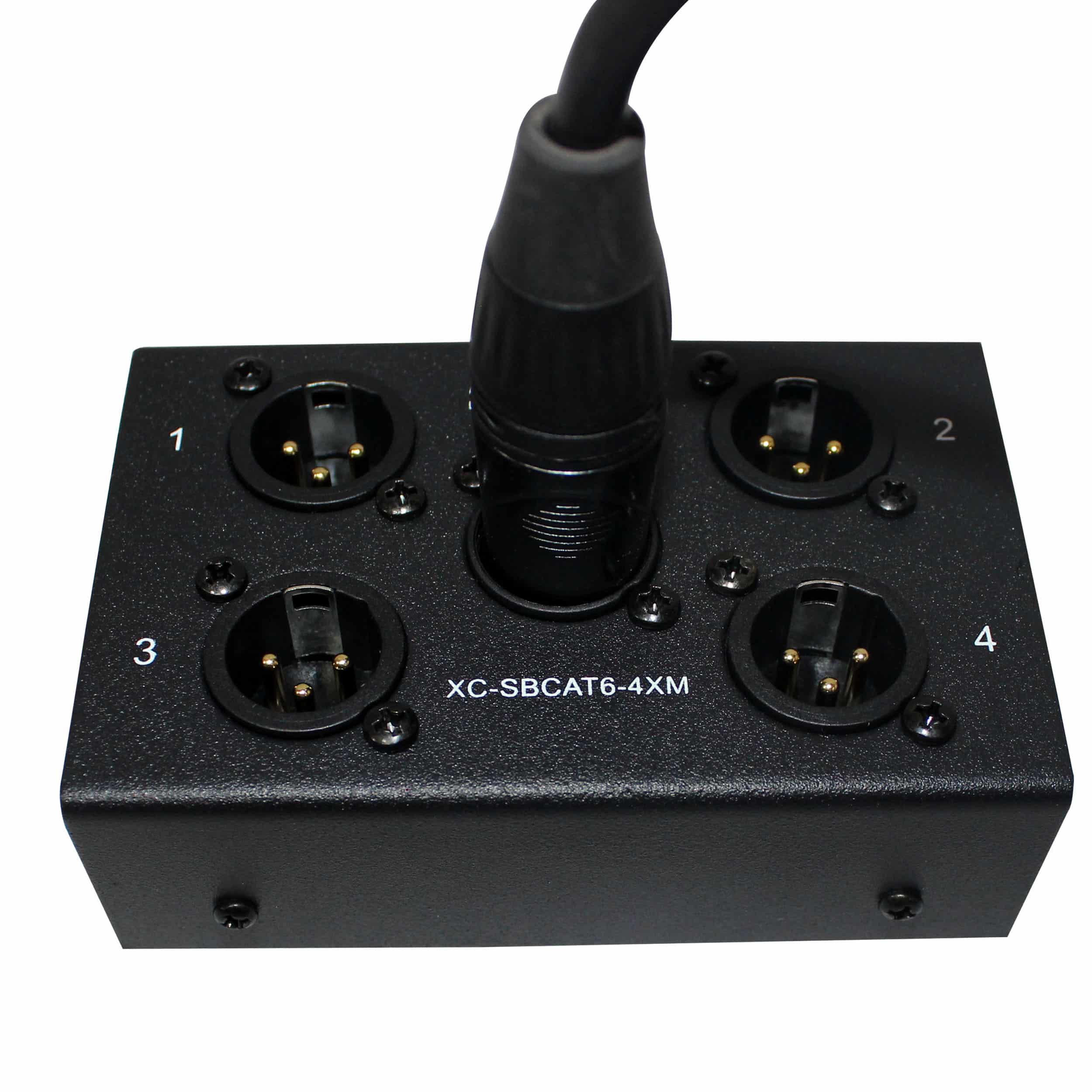

roX XC-SBCAT6-4XM 4 Channel XLR-M CAT6 Audio/DMX Portable Snake Box

Description

The ProX XC-SBCAT6-4XM Audio Snake Box is half of a pair of metal boxes that are used to send up to four audio/DMX signals over a single run of CAT-5, CAT-5E or CAT-6 cables. They are low-cost & compact.  Both an XC-SBCAT6-4XF and an XC-SBCAT6-4XM are required for the working pair.

Designed to the highest professional standards the XC-SBCAT6-4XM Snake Box has a wide, flat frequency response

You can mix and match Mic/Line, Line or AES/EBU configurations making the Snake Box a very versatile high-quality means of transporting analog or digital signals. This Snake Box has been factory tested over CAT-5 UTP & CAT-6 STP cables.

Features

    Analog Audio or Digital DMX
    Gold Plated Contacts
    Mic / Line / AES audio all on the same cable
    Supports 48V Phantom power (needs STP Shielded CAT-x cable
    No Ground Loops
    Add a second unit to increase the number of channels
    Rugged ‘road-ready’ construction
    RoHS Compliant
    Bandwidth: 20 Hz to 20 kHz
    Crosstalk: Better than -95 dB at 20 KHz
    Connectors: PBE-202S Sending end – 4x Female XLR to Ethercon RJ45 jack
    PBE-202R Receiving end – Ethercon RJ45 to 4x Male XLR
    Dimensions: 107mm x 70mm x 45mm
    Weight: 400 grams (0.4 Kg)

Description

ProX XC-CAT6-100 is a Shielded Twisted Pair (STP) Category 6  cable for touring sound and permanent installations, Audio/Video stage technology, and DMX systems, Digital Snake For Stagebox or Data Link Cable.

ProX cables are built with uncompromised quality with excellent performance at each connection – Instrument cables, Speaker cables, RCA cables, DMX cables, Power cables and more. Our cables are made for professionals, by professionals.

Category 6 Cable, commonly referred to as Cat 6, is a standardized twisted pair cable for Ethernet and other network physical layers that is backward compatible with the Category 5/5e and Category 3 cable standards.

Compared with Cat 5 and Cat 5e, Cat 6 features more stringent specifications for crosstalk and system noise. The cable standard also specifies a performance of up to 250 MHz compared to 100 MHz for Cat 5 and Cat 5e.[1]

Category 6 cable has a maximum length of 180 feet (55 meters) when used for 10GBASE-T.

Save time and money making custom Ethernet cables by using fixed-length STP Cat6 Ethernet Network Cables from ProX.  Also available in 3 ft., 5 ft., 10ft., 25 ft., 50 ft., 75 ft., 100 ft., 150 ft., 200 ft., & 300 ft.  CAT6 shielded ethernet / Crossover Cable With ProX RJ45 Male Cable Connector

We know that cables are not just cables, they are what protects your sound, signals, and data from being altered.  Uncompromised signal power, frequency handling, and data reproduction are what we are passionate about.

Features

    Shielded Twisted Pair (STP) Category 6 Ethernet cable
    550MHz bandwidth
    Genuine ProX XC-RJ45M connectors
    19 x 0.12 Copper OFC Copper Inner Conductor
    6 x 16 x 0.12 braided TC shielded system to reduce noise, protect the pure signal transfer and EMI protection
    Aluminum foil shielding for protection against external signal interferences with an overall braided/woven screen
    Compact cable diameter to decrease eddy currents
    Complete Coil™ technology demands consistent wave tolerances to create precise accuracy and detailed clarity.
    Cotton & PP Cross shielding
    Thermoplastic polyolefin insulation no lead jacket
    Outer Diameter (O.D.): 1/4+ In – 6.8mm
    Capacitance:  46 pF/ft.
    Bending Radius: 1″ MINIMUM
    Pulling Tension: 25 ft-lb (110 N) MAXIMUM
    IP65 – Dust and waterproof in mated condition
    Individually tested for performance and quality
    Complies with CAT6 specifications according to TIA / EIA 568B, ISO / IEC 11801, EN 50173

ProX Ethernet Cables are made of 100% pure copper wire, as opposed to copper clad aluminum (CCA) wire, and are therefore fully compliant with UL Code 444 and National Electrical Code TIA-568-C.2 fire and safety standards, which require pure bare copper wire in communications cables.
