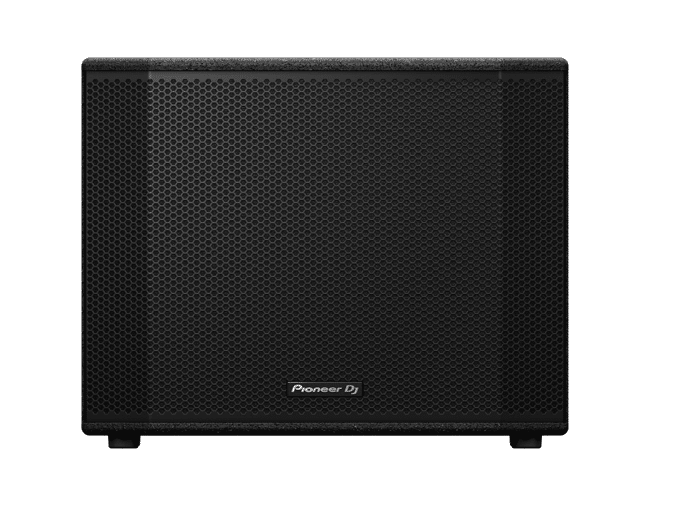

Pioneer DJ XPRS1152S 15” reflex loaded active subwoofer

Description

XPRS1152S
15” reflex loaded active subwoofer

Versatile XPRSion

The XPRS2 Series couples the versatility and mobility of the original XPRS Series with elevated sound-performance and audio intelligibility to deliver a high-caliber speaker system for mobile DJs, live sound, houses of worship, rental and fixed installations.

KEY FEATURES
xprs2 series key feature 1
Powerful Class D Amplification

The XPRS2 Series employs Class D Amplification with high output wattage for a powerful and premiere audio experience for performers and listeners alike. The XPRS102 and XPRS122 full-range speakers feature Class D 2000 W amplification, while the XPRS1152S and XPRS1182S subwoofers offer Class D 4000 W amplification.

xprs2 series key feature 2
High Quality, Robust Build

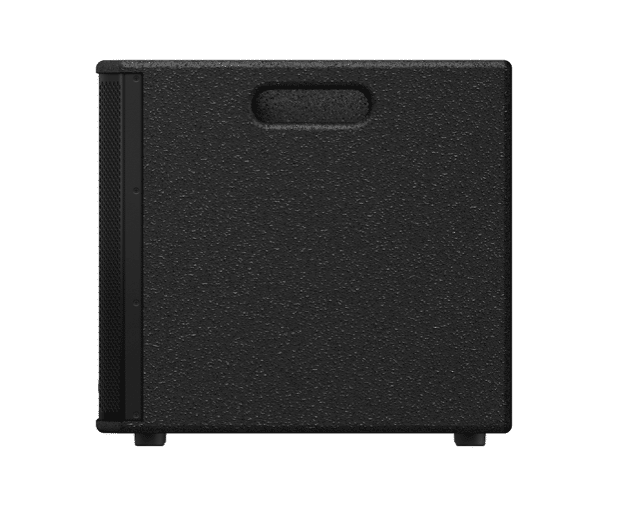

Pioneer DJ’s all-new XPRS2 Series features a sleek all-black, protective pollywood cabinet for performance in harsh outdoor and indoor environments. The series models all come with a durable handle to support system portability and handling during setup and take down. The XPRS2 Series also features rubber feet to create separation and shock absorption between surfaces.

xprs2 series key feature 6
Three DSP Modes

Both of the XPRS2 subwoofers contain three different DSP preset modes—Boost, Extended LF, and Normal—to suit different listening environments.

xprs2 series key feature 7
Accurate Audio Performance / Frequency Response

The XPRS1152S employs a 15” ferrite woofer with a 3” voice coil with long excursion to produce low frequencies with paramount accuracy.

Providing a frequency response of 45 Hz – 120 Hz and a maximum SPL of 129 dB; the subwoofers pack in the performance of a permanent install subwoofer with the compact mobility required by today’s mobile artists, performers and venues.

Main Features
Type
    15 inch active subwoofer
Amplifier Output


    Class D
    4000W peak

What’s in the Box


    XPRS1152S x 1 (not sold as a pair)
    Powerd cord
    Quick start guide
    Important Safety Precautions

Specifications
Power supply
    110 V to 240 V (50 Hz/60 Hz)
Power consumption
    800 W
Frequency Range
    45 – 120 Hz
Width
    580 mm
Height
    450 mm
Depth
    503 mm
Weight
    26.3 kg
System characteristic
DSP modes


    EQ Mode Select (3 DSP Preset Modes(Switch))
    LPF
    POLARITY

DSP presets modes


    BOOST
    EXTENDED LF
    NORMAL

Maximum Sound Pressure
    129 dB
Terminals
Inputs


    Left Mono (Combo)
    Right (Combo)

Outputs


    Left Mono (XLR)
    Right (XLR)

Speaker
Driver
    15 inch ferrite LF cone driver
Finish
    Black paint, Rubber feet
Handle
    2 (on both sides)
Pole socket
    35 mm socket
Enclosure
    Plywood (TSCA)
Protection
Amplifier Protection


    Thermal limiting
    Digital compressor

Driver Protection
    Short circuit protection
Power unit Protection


    Primary AC mains overcurrent protection
    Primary AC mains overvoltage protection
