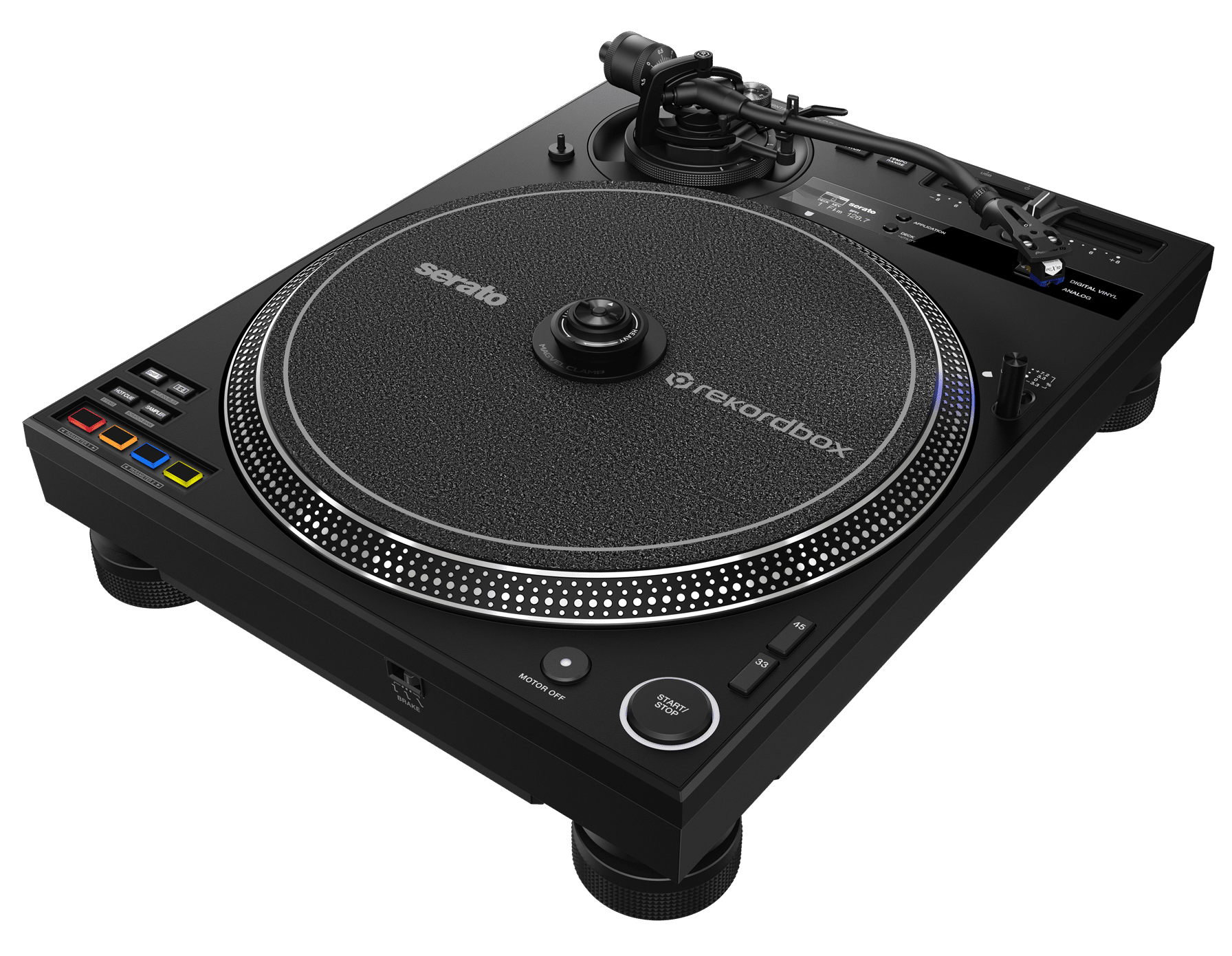

Pioneer DJ PLX-CRSS12 Professional direct drive turntable Display Model

Description

PLX-CRSS12
Professional direct drive turntable with DVS control (black)
HYBRID CREATIVITY
The PLX-CRSS12 is the world’s first turntable that supports both analog record playback and tone-arm-free DVS control, making it the ultimate deck for DJs who want to maximize their creativity.

KEY FEATURES
Tone-arm-free DVS control eliminates skipping in digital playback

No matter how hard you scratch, you’ll never experience needle skipping when you use the PLX-CRSS12 in Digital Vinyl mode, thanks to the tone-arm-free system. The new MAGVEL CLAMP holds a record firmly in place when you touch it, enabling it to directly control the digital music file, giving you the true feeling of vinyl with no need to use the tone arm. When playing analog records, the experience will be just like using the popular PLX-1000 deck.
Customizable setup
Feeling adjustment to suit your style

You can quickly adjust the record’s “weight” with the dial on top of the MAGVEL CLAMP. This means you can effortlessly continue your performance without the hassle of changing slip mats or slip sheets.
Customizable torque level

It’s easy to change the turntable rotation torque level in the utility settings to suit your preference. You can choose from “High” for quick startup when you press PLAY, “Low” for the traditional torque speed that many DJs are familiar with, and “Mid” for a balance between the two.
Adjustable stopping speed

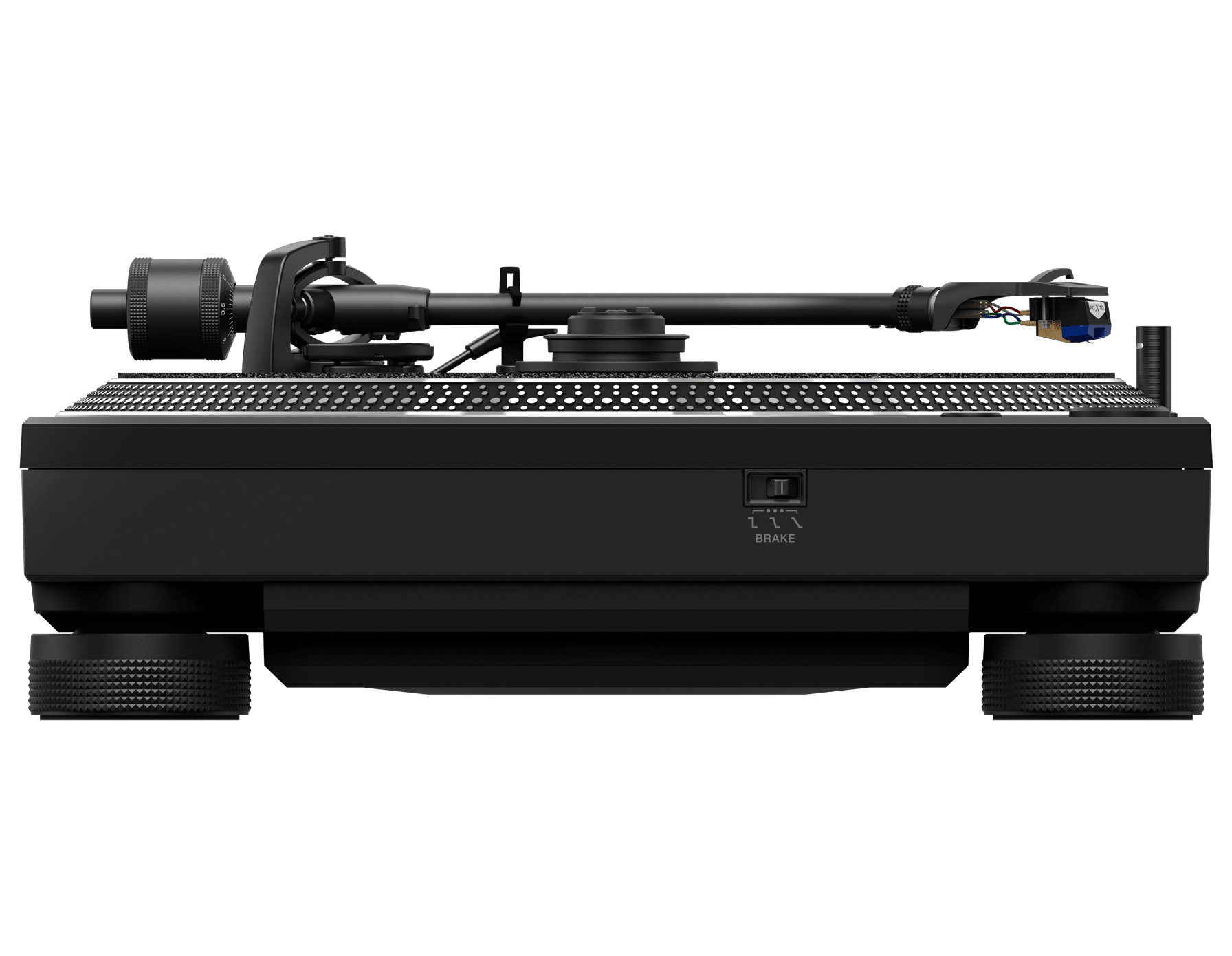

Use the switch on the front of the deck to adjust the time it takes for the turntable to stop when you press STOP. The “Min” is sharp. The “Mid” uses a traditional stopping speed that’s familiar to DJs. And the “Max” creates the longest stopping speed for a gradual and dramatic finish to a track or performance.
Comfortable and intuitive to perform on
Performance Pads for accurate and rapid control

The PLX-CRSS12 inherits classic turntable layout elements, but a new addition is the 4 built-in MIDI-mappable Performance Pads which put your favorite features at your fingertips. They’re right where you need them – just below the platter – so you can fire off Hot Cues and samples quicker than ever, which comes in handy even more if you’re performing on a mixer that has no pads. There’s native support for various pad modes (see below), and a dedicated button enables you to switch control from pads 1-4 to 5-8. The pads are MIDI mappable too, so you can assign them to other features.
OLED display for quick confirmation of track information

The built-in OLED display also helps you focus on the deck. You can keep an eye on the tempo range and key when Step Pitching and, when you connect the PLX-CRSS12 via USB to your PC/Mac running DJ software, you can reference BPM, key, deck number information. The display also gives you quick access to the utility settings – all of which reduces the need to break concentration and look at your laptop or mixer during a performance.
High-quality sound reproduction of analog records, evolved from the PLX-1000

Let your audience enjoy your music the way it was intended to be heard. The PLX-CRSS12 has been carefully built to improve on the sound quality of the PLX-1000 professional DJ turntable, which is highly acclaimed for its accurate sound reproduction.

Main Features
Accessories


    Platter
    Screws for platter
    Screwdriver
    MAGVEL CLAMP
    Slip mat
    Slip sheet
    Dust cover
    Balance weight
    Sub weight
    Headshell
    Shell weight
    Power cord
    Audio cable (with ground wire)
    USB cable
    Quick Start Guide
    Warranty (for some regions)*
    Precautions for Use

*Only products in Europe. Products in North America and Japan include warranty information in the Precautions for Use.
Specifications
Width
    453 mm
Height
    159 mm
Depth
    353 mm
Weight
    12.2 kg
Turntable
Drive Method
    Servo-type direct drive
Turntable
    Aluminium, die-casting diameter: 332 mm
Motor
    3-phase, brushless DC motor
Braking System
    Electronic brake
Rotation Speed
    33⅓ rpm, 45 rpm
Rotation Adjustment Range
    ±8, ±16, ±50 %
Wow and Flutter
    0.15% or less WRMS (JIS WTD)
Signal-to-Noise Ratio
    65 dB (DIN-B)
Starting Torque
    High: 0.45 N·m (4.5 kgf·cm) or more
Mid: 0.32 N·m (3.2 kgf·cm)
Low: 0.2 N·m (2.0 kgf·cm)
Start Time
    0.3 sec (at 33⅓ rpm)
Brake Time
    Max: 3.5 seconds
Mid: 1.0 seconds
Min: 0.5 seconds or less

Tone Arm
Arm Type


    Universal type S-shape tone arm
    Gimbal-supported type bearing structure
    Static balance type

Overhang
    15 mm
Effective Length
    230 mm
Tracking Error
    Within 3°
Height Adjustment Range
    6 mm
Stylus Pressure Variable Range
    0-4 g (1 scale 0.1 g)
Proper Cartridge Weight
    2.5-12 g (includes mounting materials)

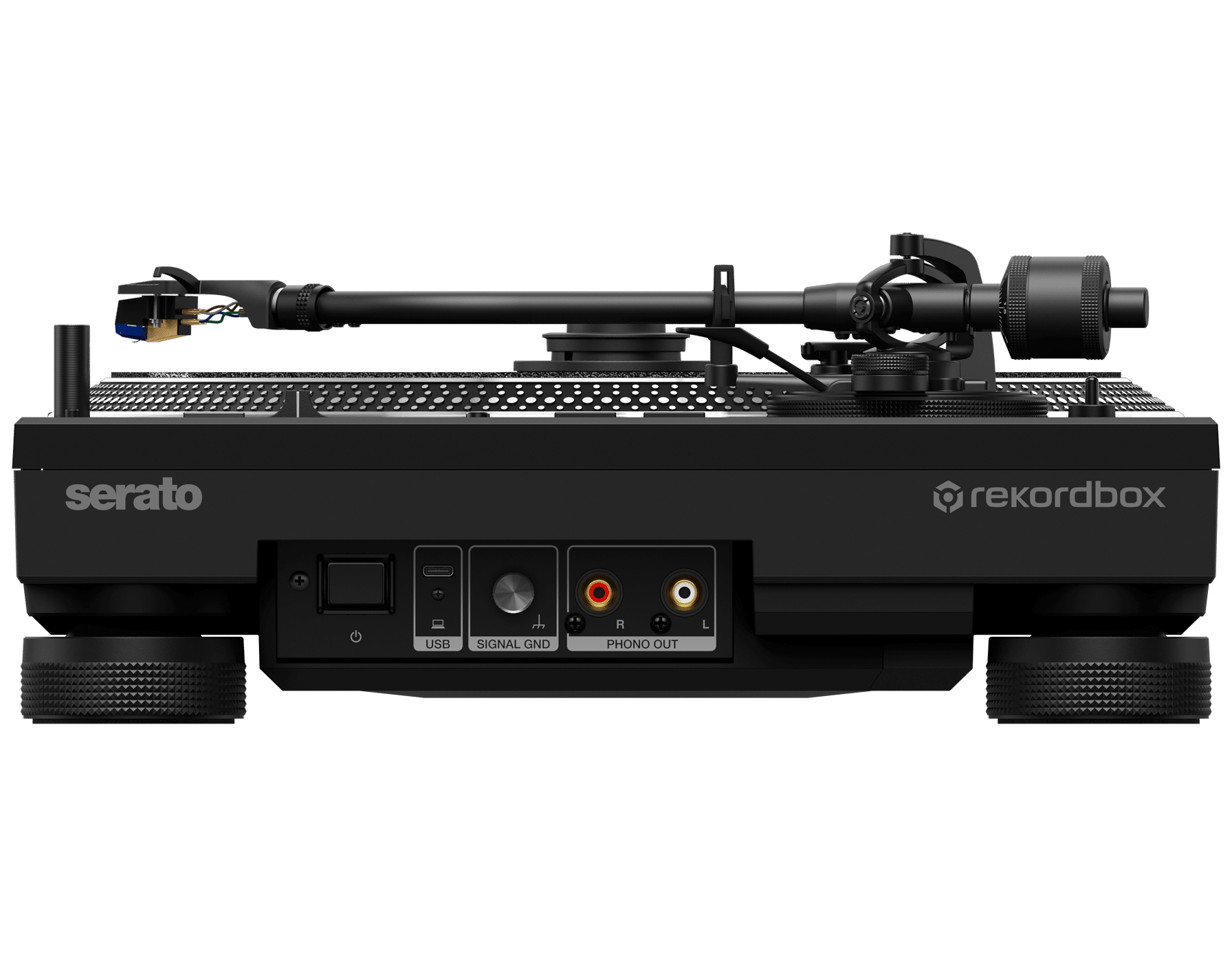

Terminals
USB
    1 USB C port
Outputs
    1 PHONO(RCA)
