Pioneer DJ PLX-500-K High-Torque, Direct-Drive Turntable (Black)
$449.00
Free Shipping-
Out of stock
Out of Stock but more on the way soon
Description
Pioneer DJ PLX-500 Overview

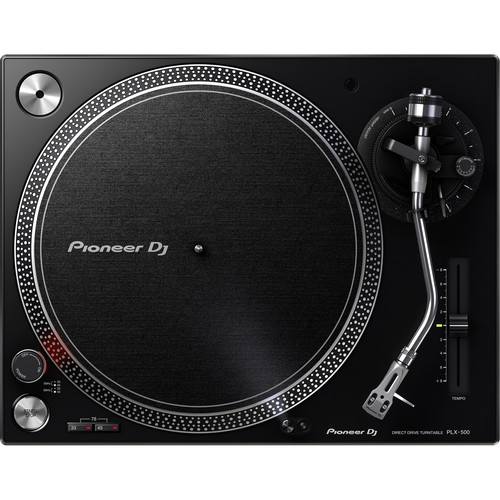

The black Pioneer PLX-500
is a high-quality, direct-drive turntable with a high-torque motor
system that’s designed for personal listening and live performance
applications such as DJing at a party or in a club. The turntable
utilizes a classic layout that DJs are familiar with, including tempo
control, a start/stop button, and a lighted speed guide. The high-torque
motor is capable of at least 1.6 kg/cm of torque and can reach a
rotational speed of 33-1/3 rpm in one second or less. A tempo adjustment
of ±8%, allows you to beat-match two tracks for seamless track
transitions.
The turntable is built to reproduce high-quality
sound and utilizes the shortest possible audio routing, from the stylus
to the outputs, to reduce distortion. A phono/line switch provides
flexible connections to a DJ mixer, directly to a sound system, or to
powered speakers without the need for a turntable preamp. Additionally,
the Pioneer PLX-500 offers a USB port for high-quality digital
recordings to your Mac or PC.
The universal type S-shape tone arm
offers a gimbal-supported bearing structure and a static balance type.
The Pioneer PLX-500 ships with a headshell (cartridge & stylus
included), a slip mat, a dust cover, a balance weight, a shell weight,
an adapter for EP records, a power cord, a USB Cable, and an audio
adapter cable.
Professional Sound Design
PLX-500 is built to produce a high-quality vinyl sound. The shortest
possible audio routing from the stylus to the outputs reduces
distortion, while the phone/line output switch lets you connect directly
to your sound system or to powered speakers with no need for an
external amplifier
Easy Digital Recording
Smooth DJ Play
the PLX-500 to mix and scratch your vinyl records or combine the
turntable with rekordbox dvs, a compatible DJ mixer, and the RB-VS1-K
Control Vinyl to play and perform with your digital files
Cover Art Display
Start from Scratch
turntable comes with all the accessories you need to get started: a
dust cover with jacket stand, a slipmat, and a silver edition PC-HS01-S
headshell (cartridge and stylus included)
rekordbox dvs
you use the rekordbox dj software, you can also purchase the optional
rekordbox dvs “Plus Pack” to get low latency scratch control with music
from your rekordbox library
Pioneer DJ PLX-500 Specs
| Drive Method | Servo type direct drive |
| Motor | 3-phase brushless DC motor |
| Brake | Electronic brake |
| Maximum Rotation Speed | 33⅓, 45, 78 rpm |
| Adjustment Range | ±8% |
| Wow and Flutter | 0.15% or less WRMS |
| S/N Ratio | 50 dB or higher |
| Turntable | Aluminum Die-Casting Diameter: 13.1″ / 332.0 mm |
| Torque | Starting Torque: 3.5 lb / 1.6 kgf-cm or more |
| Start Time | Within 1 sec (at 33⅓ rpm) |
| Arm Type | Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type |
| Effective Arm Length | 9.1″ / 230.5 mm |
| Overhang | 0.6″ / 16.0 mm |
| Tracking Error Angle | Within 3° |
| Height Adjustment | 0.2″ / 6.0 mm |
| Stylus | Stylus Pressure Variable Range: 0 to 0.1 oz / 0 to 4.0 g (1 scale 0.1 g) |
| Cartridge Weight | Single Cartridge: 0.34 oz / 9.50 g or less |
| Output Voltage | Phono: 1.5 mV/1 kHz Line: 150 mV/1 kHz |
| Audio Connector | 2 x RCA (left and right stereo pair) |
| USB | 1 x USB type-B |
| Power Requirements | 110 to 120 VAC or 220 to 240 VAC, 50/60 Hz |
| Power Consumption | 11 W |
| Dimensions (W x H x D) | 17.7 x 6.3 x 14.5″ / 450.1 x 159.0 x 368.0 mm |
| Weight | 23.6 lb / 10.7 kg |
