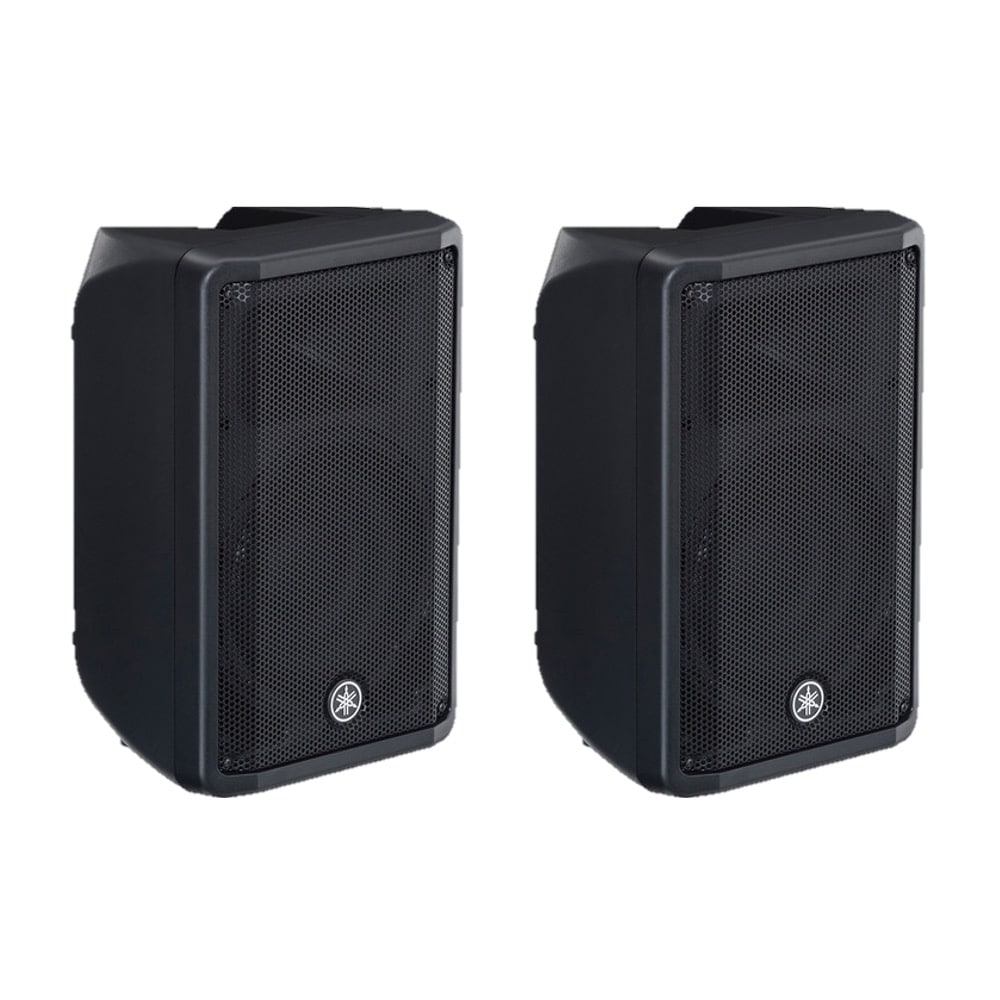

Pair of 2x Yamaha DBR10- 10" 2-Way Powered Loudspeaker
Pair of 2x Yamaha DBR10- 10" 2-Way Powered Loudspeaker - Image 2

Yamaha

Pair of 2x Yamaha DBR10- 10″ 2-Way Powered Loudspeaker

$819.98

In Stock and ready to Ship!
Orders placed by 2:00 ET ship the same day
(Business days ony)

Free Shipping

-

In stock (can be backordered)

SKU: 2xDBR10 Category: Brand:

Description

Yamaha DBR10 Overview

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR10- 10″ 2-Way Powered Loudspeaker from Yamaha
is capable of up to 700W of dynamic output via its Class D amplifier.
The loudspeaker features a 10″ woofer and a 1″ high-frequency driver and
provides a maximum output of 129 dB. An on-board 2-channel mixers
allows you to connect microphone or line level sources via 1/4″, XLR,
and RCA connectors. Thanks to its ergonomic handle and lightweight
design the DBR10 is portable and can be easily transported.

High-Efficiency Class D Amplifier

The
DBR10’s lightweight, high performance Class-D amplifier is capable of
producing up to 700W of power, achieving an SPL of 129 dB, delivered
with clarity and dynamic characteristics

Custom Designed Transducer

The
woofer delivers defined, powerful bass with minimal distortion, while
the 1″ precision compression driver produces accurate mid-range and high
frequencies

Portable Cabinet

DBR
Series speakers feature a compact, lightweight, and durable plastic
cabinet which offers the portability of all Yamaha powered speakers. The
sleek steel grille bolsters cabinet durability and protects the
internal components while an ergonomic handles provide transportation
and system setup

Enclosure Design for Floor Monitoring

DBR Series speakers feature an optimized 50° wedge angle for floor monitoring

On-Board 2-Channel Mixer

DBR
Series speakers have two input channels. Channel 1 has a combo jack
which accepts both XLR and TRS Phone allowing for either Mic or Line
level input signals. Channel 2 offers two input options; a combo jack
that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from
CD players or other stereo line-level sources. The onboard mixer allows
you to select either Channel 1 + 2 MIX to mix the signal of Channel 1
and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only

Rigging Points for Installation Applications

DBR
loudspeakers come equipped with M8 rigging threads, allowing for rigged
applications with optional speaker brackets or standardized eye-bolts

Yamaha DBR10 Specs

PA Speaker
Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker
Total Power Capacity 700 W Peak
325 W RMS
Amplifier Power Rating LF:
500 W Peak
260 W RMS
HF:
200 W Peak
65 W RMS
Drivers
HF Driver 1 x 1″ / 25 mm Compression Driver
LF Driver 1 x 10″ / 25.4 cm Woofer
LF Voice Coil 2″ / 5.1 cm
Magnet HF:
Ferrite
LF:
Ferrite
Performance
Frequency Range 55 Hz to 20 kHz -10 dB
Maximum SPL 129 dB SPL
Coverage Angle 90° H x 60° V
Connectivity
Audio I/O 2 x Combo XLR-1/4″ TRS Input
1 x Stereo RCA Unbalanced Line Input
1 x XLR 3-Pin Output
Signal Processing
Crossover 2.1 kHz
Power
AC Input Power 100 to 120 VAC, 50 / 60 Hz
Power Consumption 60 W (1/8 Power)
18 W (Idle)
Physical
Mounting 1 x 1.38″ / 35 mm Pole Socket (Bottom)
1 x Pole Socket
2 x M8 (Bottom)
Handles 1 x Top
Cooling Fan (Variable Speed)
Construction Material Plastic
Dimensions 12.1 x 19.4 x 11.4″ / 308 x 493 x 289 mm
Weight 23.2 lb / 10.5 kg
