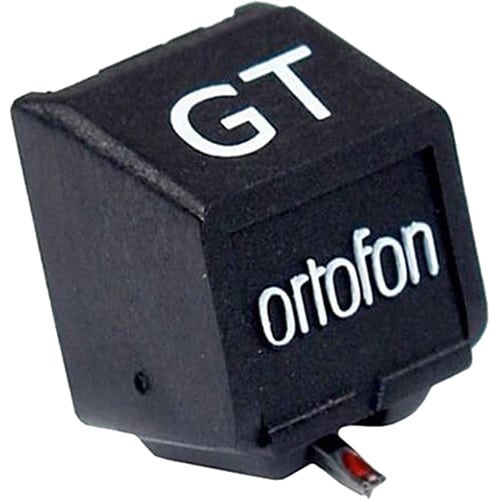

Ortofon GT Replacement Stylus

Ortofon

Ortofon GT Replacement Stylus

$51.99

In Stock and ready to Ship!
Orders placed by 2:00 ET ship the same day
(Business days ony)

Free Shipping

-

In stock

SKU: GT STYLUS Category: Brand:

Description

Designed for the DJ looking for higher resolution and sound image, the Ortofon GT Replacement Stylus is designed to replace the original stylus on the GT cartridge. Developed with SWS Audio GmbH with its construction based on the well-known Series 500 and having robust and reliable parts from the Scratch series, the GT provides an enhanced frequency response and a high 8 mV output.

Tracking ability is decisive for the DJs especially when scratching and back-cuing. The GT is resistant against violent handling such as drop or touch of fingers, thanks to the rubber suspension of the cantilever, which is even more rigid against axial pull.



Ortofon GT STYLUS Specs

Output Voltage 8 mV, at 1 kHz, 5 cm/second
Channel Balance 1.5 dB, at 1 kHz
Channel Separation 1 kHz: 25 dB
15 kHz: 18 dB
Frequency Range 20 Hz to 20 kHz, -3 dB
Frequency Response 20 Hz to 18 kHz (±2 dB)
Tracking Ability 80 μm, at 315 Hz at Recommended Tracking Force
Compliance 6 μm/mN, Dynamic Lateral
Stylus Type Spherical
Tracking Force Range: 3 to 5 g, 30 to 50 mN
Recommended: 4 g, 40 mN
Tracking Angle 20°
Internal Impedance 1000 Ohm, DC Resistance
Internal Inductance 580 mH
Recommended Load Recommended Load Resistance: 47 Kilohms
Recommended Load Capacitance: 200 to 400 pF
