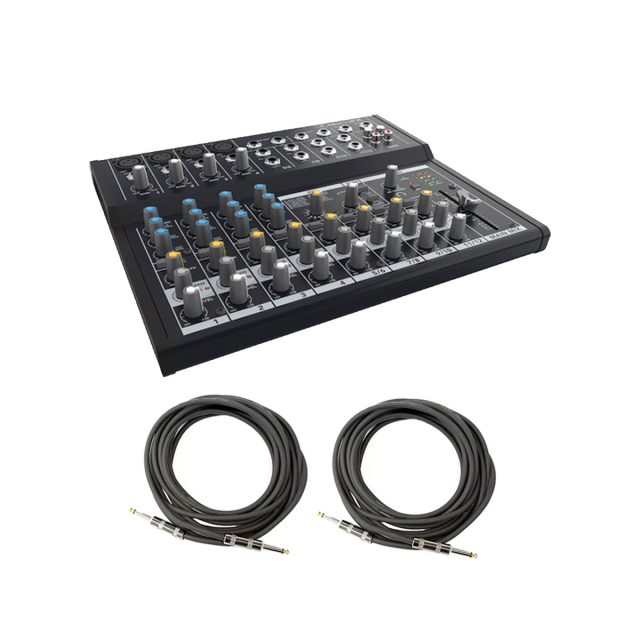

Mackie Mix12FX – 12-Channel Compact Mixer w/ 1/4″ Cables
$159.99
Free Shipping
-
In stock
Description
Mackie MIX12FX Overview
The Mackie Mix12FX
is a 12-channel compact mixer with built-in effects that features high
quality components, a rugged metal chassis, and is designed for a
variety of sound reinforcement applications. The mixer features four
mic/line inputs with 48V phantom power and four stereo 1/4″ line inputs,
capable of accommodating dynamic and condenser microphones, keyboards,
DJ setups, portable music players, and more.
Each of the four mic/line inputs is equipped with XLR and 1/4″
connectors, a dedicated 3-band EQ, high-pass filter at 75 Hz, pan, level
control and an LED overload indicator. The four stereo 1/4″ line inputs
each feature +4/-10dB operation, level control, balance control and
also have an LED overload indicator.
In addition, the Mix12FX features 12 integrated effects for polishing your mix including reverbs, choruses and delays.
- Dedicated stereo RCA inputs/outputs for playback or recording
- 60mm fader for Main L/R outputs
- Headphone and stereo control room outputs
- Rugged, reliable design built to last
- Compact and portable
Mackie MIX12FX Specs
| Noise | (20 Hz – 20 kHz bandwidth, 150 ohm source impedance, EIN)
All outputs, master levels and channel levels off –100 dBu All outputs, master levels unity, all channel levels off –90 dBu All outputs, master levels unity, 1 channel level unity –85 dBu
|
| THD+N | (20 Hz – 30 kHz bandwidth)
Mic input to main output
|
| Attenuation and Crosstalk | (20 Hz – 20 kHz bandwidth)
Inputs to outputs @1 kHz –85 dB Main mix off @1 kHz –75 dB
|
| Frequency Response | Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz
|
| Equivalent Input Noise | –122 dBu, (mic in to insert send out, max gain)
|
| Common Mode Rejection Ratio | 1 kHz better than –70 dB, (mic in to insert send out, max gain) |
| Maximum Level | Mic Inputs (XLR): +19 dBu
All Other Inputs: +21 dBu All Outputs: +21 dBu
|
| Impedance | Mic In: 3.8 kohms
All Other Inputs: 10 kohms or greater Tape Out : 1 kohms Phones: 22 ohms All Other Outputs: 120 ohms unbalanced, 240 ohms balanced
|
| Equalization | High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB @ 2.5 kHz Low Shelving: ±15 dB @ 80 Hz Low Cut Filter: 18 dB/octave, –3 dB @ 75 Hz
|
| Power Requirements | Power Connection: 2-pin DC connector [US], 3-pin DC connector [EU]
Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU] Output: 18 VAC, 1000 mA
|
| Dimensions | 2.1 x 11.7 x 9.6″ (53 x 297 x 244 mm)
|
| Weight | 3.7 lb (1.7 kg) |
