Rogue R2X Wash Color Wash Moving Head (RGBW)

Home/Lighting/Intelligent Lights/Professional Moving Heads/Rogue R2X Wash Color Wash Moving Head (RGBW)

Chauvet Professional

Rogue R2X Wash Color Wash Moving Head (RGBW)

$1,917.29 $1,699.99

Rogue R2X Wash is a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers five zones of LED control to pixel map its 19 (25 W) RGBW quad-LEDs. A standout zoom range of 12° to 49° gives it the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles and powerCON in and out are just some of the other features that make this fixture a standout performer in any setting.

Click here if you have seen it for less than $1699.99 - Or make an offer...

SKU: ROGUER2XWASH Category: Brand:

Product Description

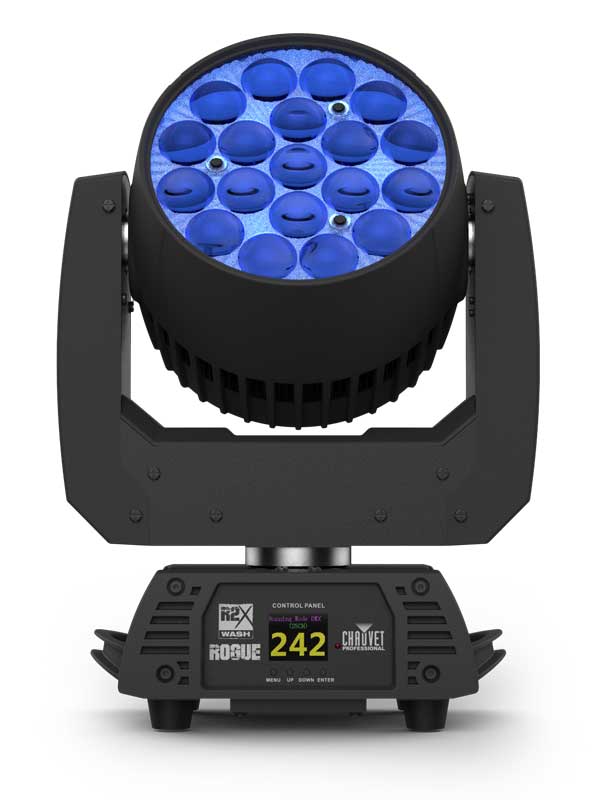

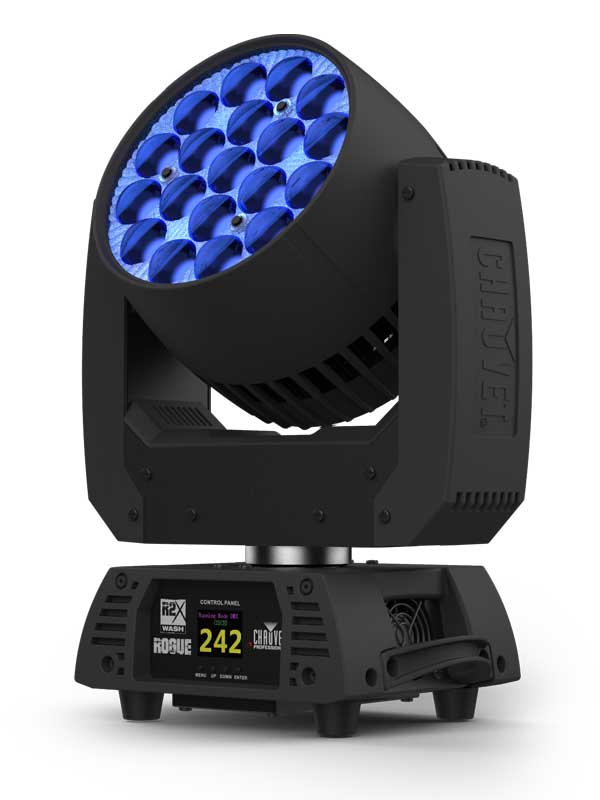

The CHAUVET Professional Rogue R2X Wash
is the moving wash workhorse of the Rogue series fixtures, boasting an
intense output from its 19 quad-color (RGBW) 25W LEDs. It can be used
for theatrical productions and live events to create a broad spectrum of
color washes and effects including motorized zoom, which offers a beam
angle of 8 to 30° and a zoom angle of 12 to 49°. Other notable features
include smooth color mixing, simple and complex DMX channel profiles,
and powerCON in and out, allowing for multiple units to be
daisy-chained. The Rogue R2X ships with an Omega bracket and a powerCON
power cord.

  • Fully featured RGBW LED yoke wash fixture with LED zone control and zoom
  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
  • 19 RGBW LEDs, 25 W each
  • 3- and 5-pin DMX input/output connections
  • 5 zones of LED control for pixel mapping
  • Unique lens design for excellent color blending
  • Fast, smooth pan and tilt movement
  • RDM-enabled for remote addressing and trouble shooting
  • Selectable LED maximum output to match legacy Rogue R2 Washes
  • 6 distinct dimming modes for advanced control
  • Omega mounting bracket fits all Rogue and Maverick fixtures
  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility


Optical Light Source: 19 LEDs (Quad-Color RGBW) 25 W, (1.5 A), 50,000 Hours Life Expectancy
Color Temperature (Range): 2800 to 10000 K
Beam Angle: 8 to 30°
Field Angle: 12 to 49°
Zoom Angle: 12 to 49°
Lumens – Source: 10,300
Lumens – Output: 7300
Illuminance (12°): 10,000 Lux at 16.4′ / 5 m
Illuminance (49°): 840 Lux at 16.4′ / 5 m
PWM Frequency: 1200 Hz
Dynamic Effects Pan and Tilt: 540/230°
Pan and Tilt Ranges: Pan 180, 360, 540°; Tilt 90, 180, 230°
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Curves: 4
Built-in Automated Programs: Yes
Customizable Programs: No
Recall Custom Programs: No

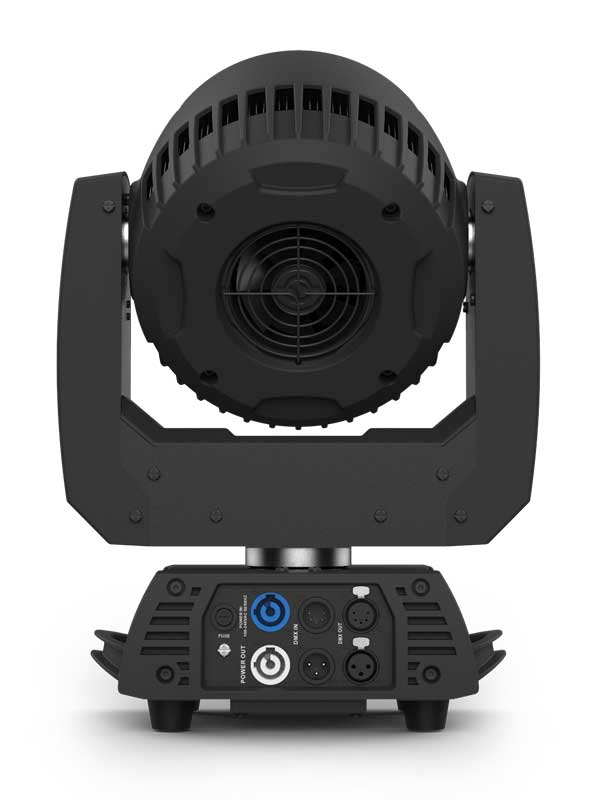

Connections Power Connection: Edison (Local) Plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3-and 5-pin XLR
Cable Length Power: 4.9′ / 1.5 m
Control Control Protocol: DMX, RDM
DMX Channels: 15, 17, 22, 33, 54, or 56
Modes/Personalities: Eight Personalities (15, 17, 22, 33, 33, 54, or 56)
Electrical Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power Linking: 4 Units at 120 V; 8 Units at 208 V; 9 Units at 230 V
Power and Current:
346 W, 2.8 A at 120 V, 60 Hz
337 W, 1.6 A at  208 V, 60 Hz
342 W, 1.4 A at  230 V, 50 Hz
Certifications CE, MET
IP Rating: IP20, Dry Location
Material of Construction Housing Material: High-Impact Flame-Retardant Polymer
Dimensions (L x W x H) 8.6 x 12.1 x 15.7″ / 21.8 x 30.6 x 39.8 cm
Weight 22.8 lb / 10.3 kg


Additional Information

Weight 29 lbs
Dimensions 19 × 11 × 15 in
