Chauvet DJ PinSpot Q1Z ILS compact 20-watt quad-color (RGBW) LED pinspot

Description

Pinspot Q1Z ILS

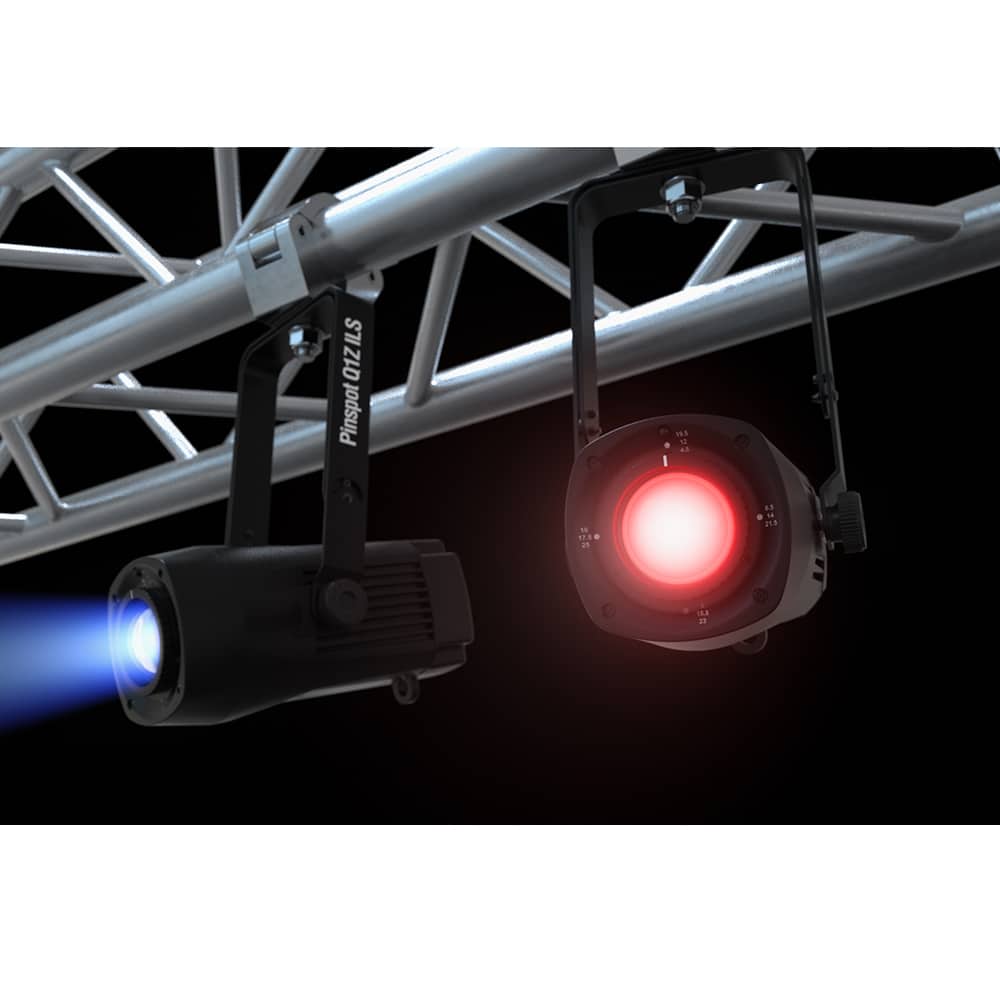

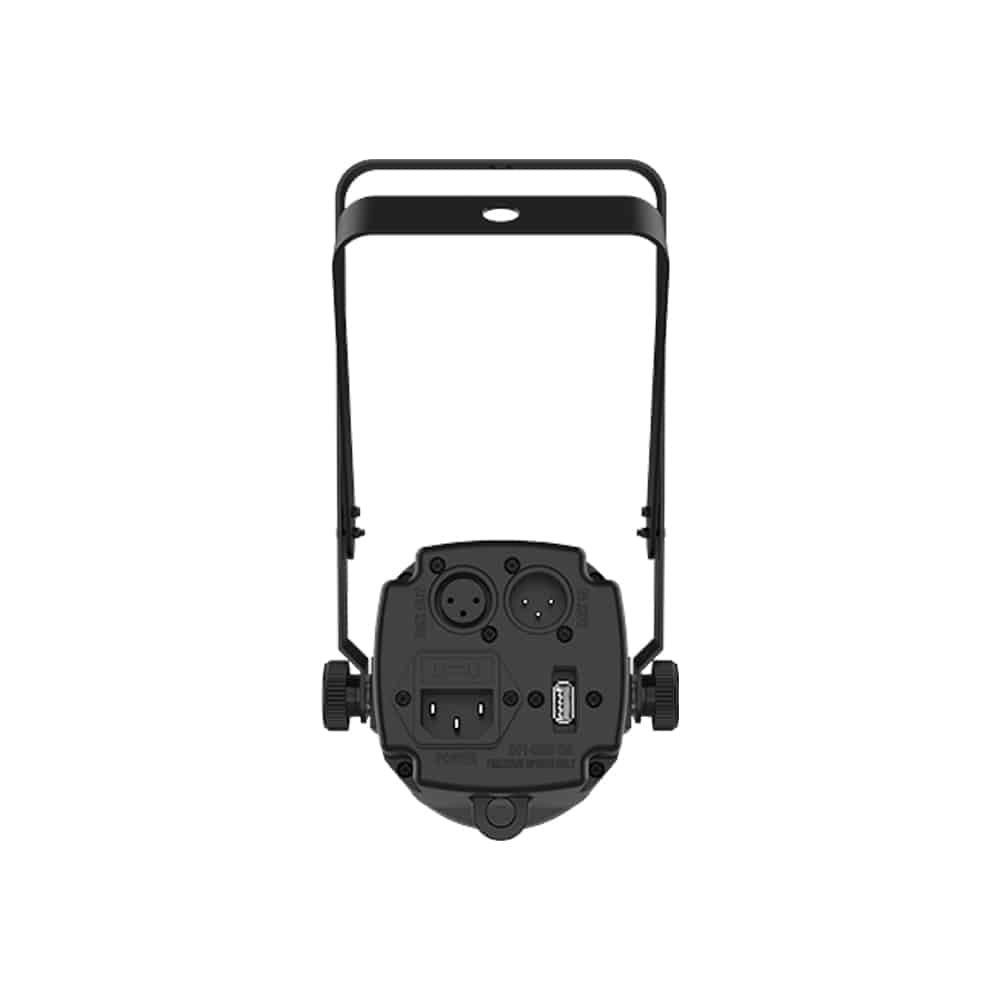

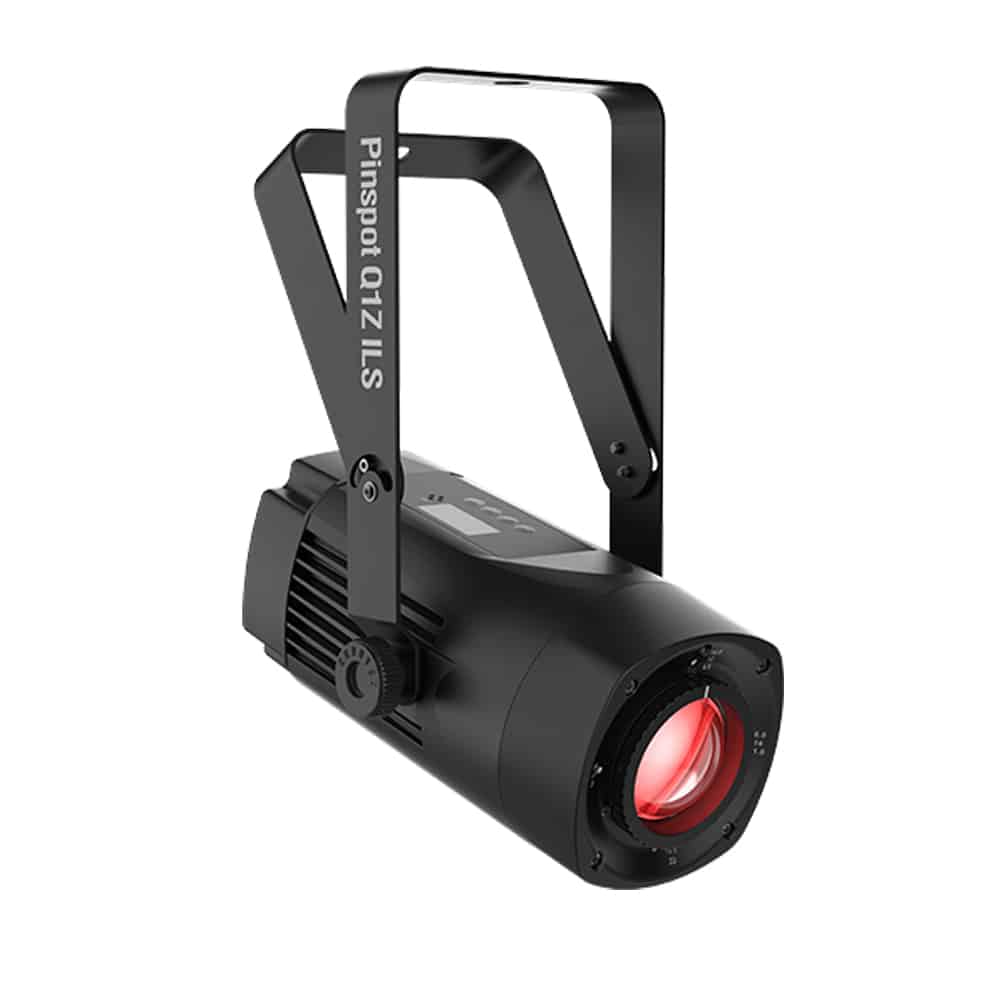

PinSpot Q1Z ILS is a compact 20-watt quad-color (RGBW) LED pinspot fixture with easy menu navigation from the OLED display. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Its manual zoom brings versatility to both short and long throw applications. Conveniently control this easy-to-use fixture with the IRC-6 remote, or your chosen ILS leader such as the ILS Command.

Highlights
Compact pinspot fitted with a 20W quad-color RGBW LED

Manual zoom for short or long throw applications

D-Fi USB compatibility for wireless master/slave or DMX control

Easy navigation and access to all functions directly from the OLED display

Convenient, wireless non-DMX control using the IRC-6 remote.

Fits best in the CHS-40 VIP Gear Bag

Specifications
DMX Channels: 4, 6, or 7DMX Connectors: 3-pin XLRLight Source: 1 LED (quad-color RGBW) 20 W, (5.3A), 50,000 hours life expectancyStrobe Rate: 0 to 33 HzZoom Angle: 5° to 25°Lumens: 617Weight: 3 lb (1.36 kg)Size: 12.1 x 3.5 x 8.5 in (308 x 89 x 217 mm)Approvals: CE, UKCA, ROHSPower and Current: 9 W, .3 A @ 120 V, 60 HzPower and Current: 20 W, .2 A @ 230 V, 50 HzOptional Controllers: IRC6, ILSCOMMANDInput Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Bracket Mounting Hole: M12Illuminance: (narrow): 4,081 lux @ 2 mIlluminance: (Wide): 623 lux @ 2 m
WHAT’S INCLUDED
Pinspot Q1Z ILSPower cordQuick Reference Guide
