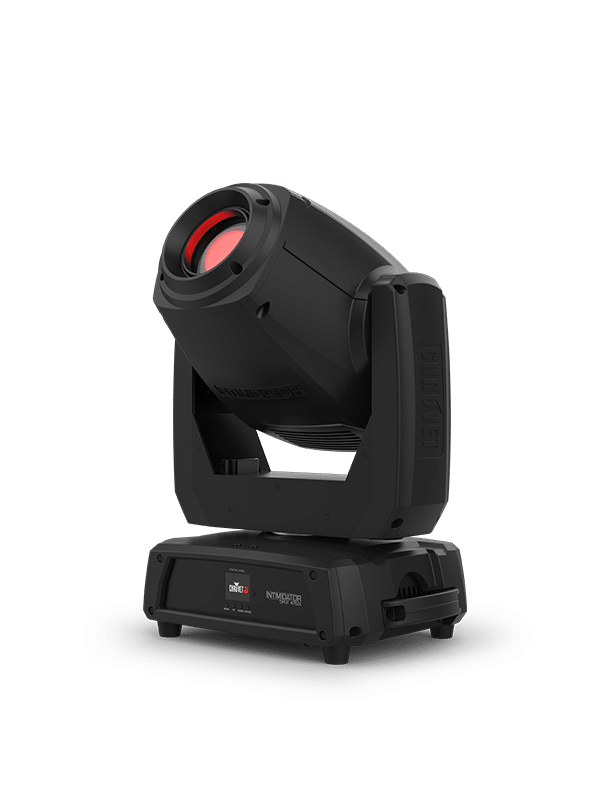

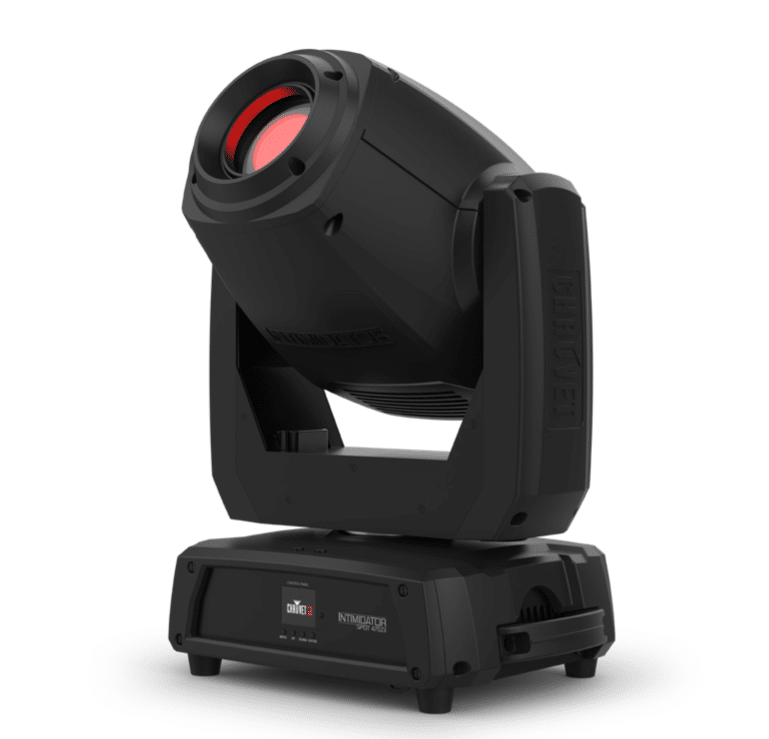

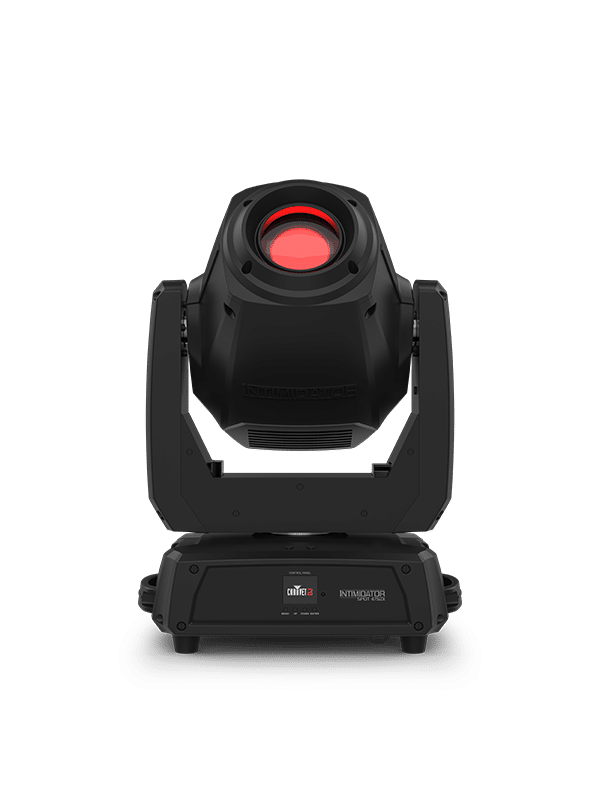

Chauvet DJ Intimidator Spot 475ZX 250W LED Moving head

Description

Intimidator Spot 475ZX

Unlock your best with X! Intimidator Spot 475ZX! This feature-packed powerhouse moving head packs a 250-watt punch for larger events. Intimidator Spot 475ZX comes equipped with a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes that provide a host of robust remote-control options. An updated CTO color wheel is on board and now software updates are easier than ever with the onboard USB-C port and a new home starting position for the moving head makes programming look smooth and more professional. Dual rotating prisms split the beam for great effects and wider coverage and the motorized zoom is perfect for short or long throw applications. Intimidator Spot 475ZX also boasts powerful gobo projection features including motorized zoom for crisp projections from nearly distance. Set, save, and recall 1 scene manually, directly from the full color LCD display. Beams always remain on the dance floor using the built-in, innovative Totem mode.

Highlights

    Compact moving head designed for large events

    Onboard USB-C port allows for quick software updates

    Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

    New home position allows for smoother programming

    Dual rotating prisms split the beam for great effects and cover a larger area

    Motorized zoom for short or long throw applications

    ¼-turn hanging bracket allows for single or dual clamp mounting options

    Project crisp gobos from nearly any distance with the motorized focus

    Beams always remain on the dance floor using the built-in, innovative Totem mode

    Set, save, and recall 1 scene manually, directly from the full-color LCD display

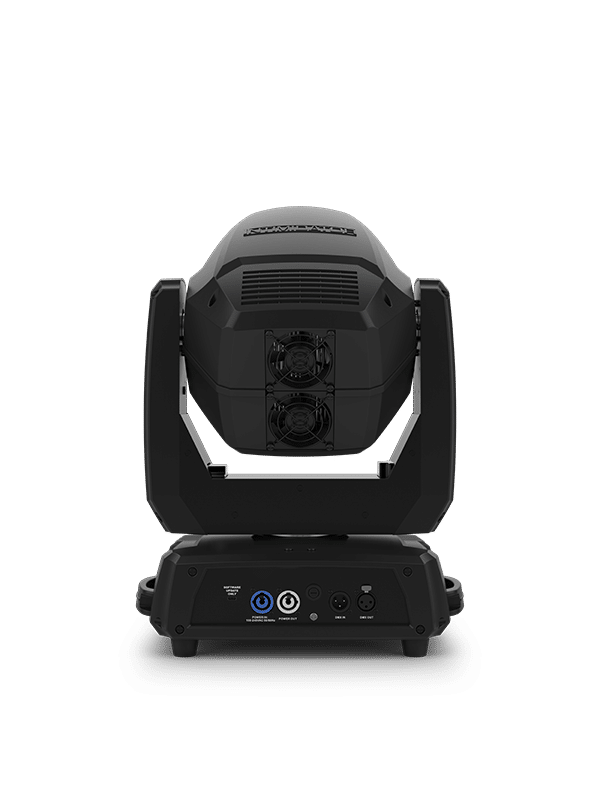

    powerCON®-compatible power input/output connections saves setup time

Specifications

    DMX Channels: 10 or 16
    DMX Connectors: 3 XLR
    Pan and Tilt: 540°/270°
    Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
    Colors: 7 + white, split colors, continuous scroll at variable speeds
    Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    Light Source: 1 LED (cool white) 250 W, (10 A), 50,000 hours life expectancy
    Strobe Rate: 0 to 20 Hz
    Lumens: 10,710
    Power Linking: 3 units @ 120 V; 7 units @ 230 V
    Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    Power and Current:
    378 W, 3.4 A @ 120 V, 60 Hz
    372 W, 1.9 A @ 230 V, 50 Hz
    Weight: 36.2 lb (16.5 kg)
    Size: 14.3 x 10 x 21 in (363 x 250 x 531 mm)
    Approvals: CE, UKCA, RoHS, MET
    Gobos: 8 + open, indexing, continuous scroll at variable speeds
    Gobo Size: 25.7 mm outside, 21 mm image, 1.3 mm max thickness
    Prism: 5-facet linear, bi-directional at variable speeds
    Prism: 6-facet round, bi-directional at variable speeds
    Zoom Angle (motorized): 13° to 28°
    Illuminance (13°) : 90,979 lux @ 2 m
    Illuminance (28°) : 24,565 lux @ 2 m
    Illuminance (13°) : 14,557 lux @ 5 m
    Illuminance (28°) : 3,930 lux @ 5 m
    Color Temperature: 15,000 K
    Optional Controllers: RFC, RFC-XL

What’s Included

    Fixture
    Power cord
    Hanging bracket
    Quick Reference Guide
