Chauvet DJ Freedom Connect App based control for Freedom Fixtures

Description

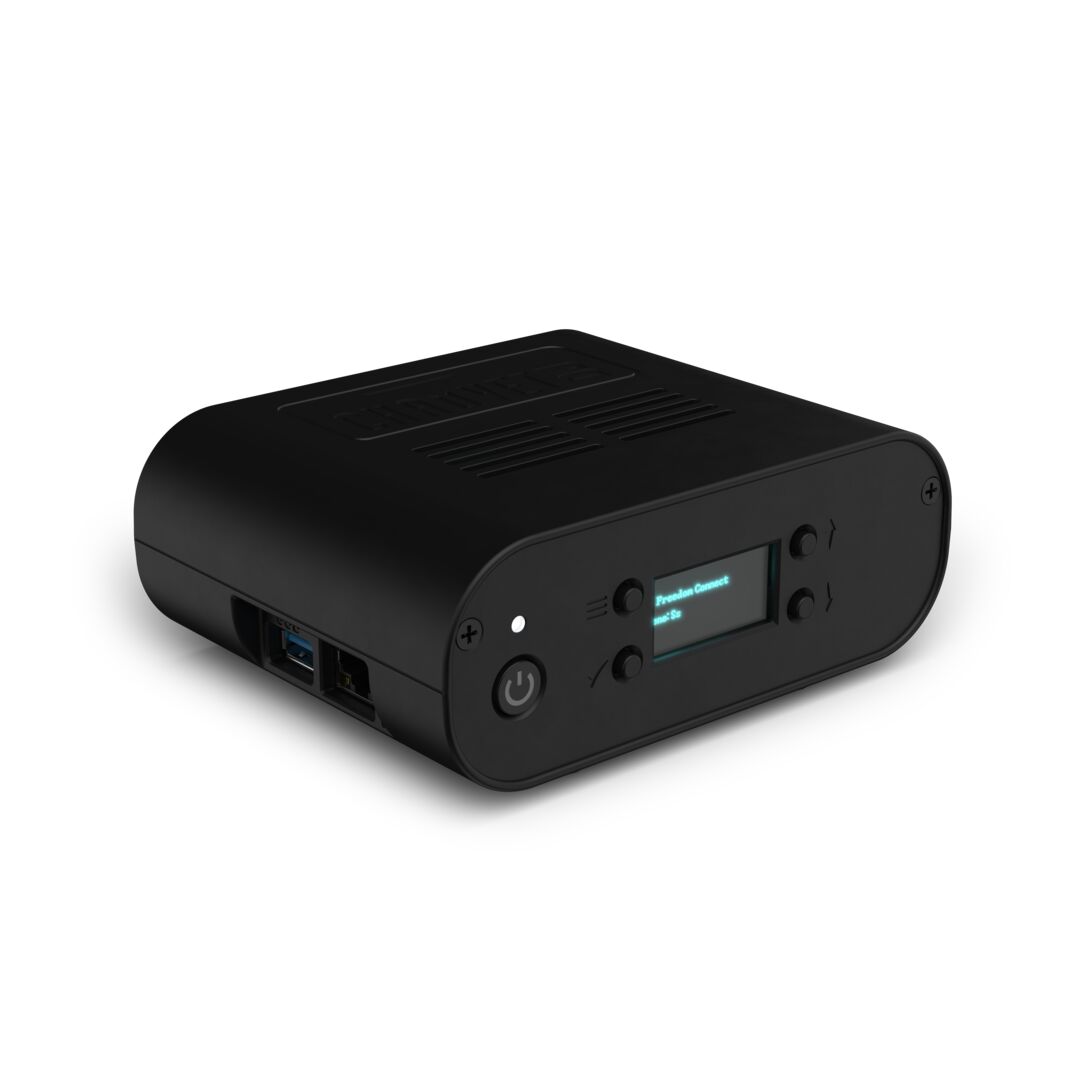

Chauvet DJ Freedom Connect

• Wireless Control Hub: Compact Bluetooth and D-FI transceiver
designed to control Freedom fixtures or any DMX lighting
system.
• App-Driven Operation: Pairs seamlessly with the ConnectFX
app on iOS and Android for intuitive wireless control of scenes
and effects.
• Flexible Input and Output Options: Supports both wireless &
wired DMX protocols, including DMX512, sACN, D-FI, and ArtNet,
providing reliable signal distribution for any setup.
• Smart Firmware Management: A web-based UI enables easy
firmware updates and configuration.

• Power Input: USB-C
• Data Connectors: 3-pin XLR IN/OUT, USB-A Female, RJ45
• Input Voltage: 5 VDC, 2A via USB-C
• Bracket Mounting Hole: M10
• Weight: 8.8oz (249g)
• Size: 4 x 4.1 x 2 in (130.5 x 106.5 x 52 mm)
• Approvals: CE, FCC, UKCA
• Max Unobstructed Distance: 394ft (120m)
• Operating Frequency: 2.4 -2.48 GHz
• RF output: 18 dBm
