Description
CHAUVET DJ EZLINK PAR Q1BT Overview

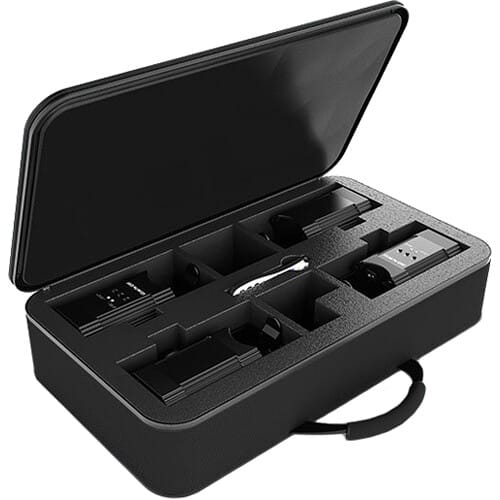

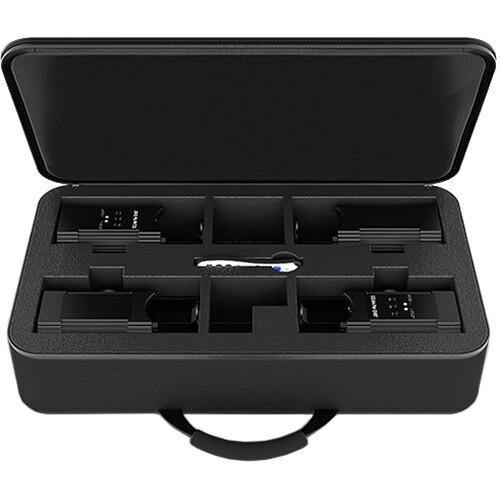

The Chauvet DJ EZLink Par Q1BT 4-Pack
bundles four fixtures with an IRC-6 remote and a carrying bag to create
an easily transportable lighting package that’s well suited for mobile
entertainer and event planners.

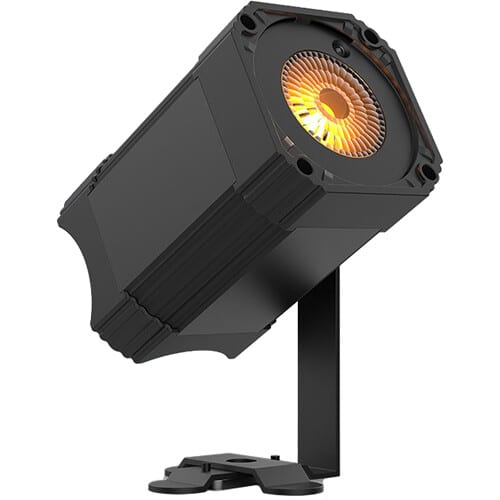

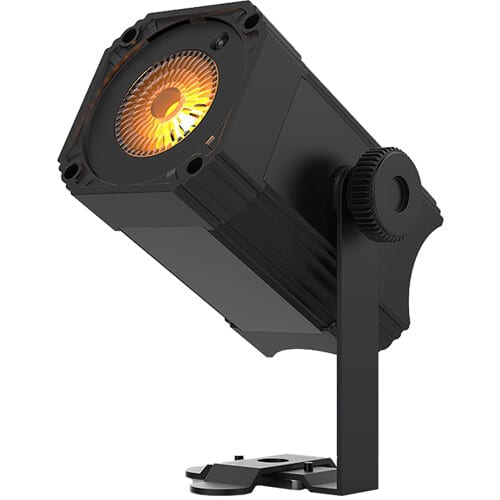

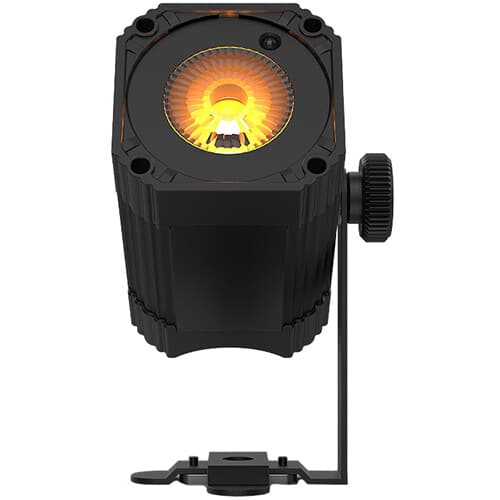

CHAUVET DJ EZLink Par Q1BT TRUE Wireless RGBA LED Wash with Bluetooth
The CHAUVET DJ EZLink Par Q1BT
is a rechargeable, wireless RGBA (red, green, blue, amber) LED wash
fixture with automated color mixing and an integrated Bluetooth
receiver. Designed to produce rich color washes for venues and
dancefloors, event producers and mobile DJs can quickly position the
fixture anywhere in the venue without running power cables.
The
EZLink Par Q1BT is equipped with one, 5W quad-color LED and a 15° beam
angle. The amber color provides richly vibrant and warm color mixing or
natural-looking color temperatures. It has a built-in battery that lasts
up to 20 hours on a full charge in single-color mode or 8 hours with
all colors on. The fixture features a magnetic base, which affixes to
most metal surfaces, eliminating the need for clamps. Its compact design
easily fits inside trussing or suspended overhead.
The EZLink Par
Q1BT can operate as a standalone with dynamic effects including two
auto modes and two sound modes. The fixture can be controlled via the
optional IRC-6 remote and is compatible with the free BTAir application
for smartphones and tablets, which allows you to control the fixture
from up to 150′ away. The EZLink Par Q1BT ships with a power supply and
hanging bracket.
- 100% TRUE wireless, rechargeable-battery operated, quad-color (RGBA) LED wash with built-in Bluetooth wireless technology
- Control directly from a smartphone or tablet without any additional hardware
- Magnetic base affixes to most metal surfaces, eliminating the need for clamps
- Convenient, wireless non-DMX control using the IRC-6 remote
- Compact size provides effortless transport and setup
- Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
- Compact design easily fits inside sticks of trussing
CHAUVET DJ EZLink Par Q1BT TRUE Wireless RGBA LED Wash with Bluetooth Specs
| Maximum Unobstructed Distance | 150′ / 45.7 m |
| Light Source | 1 x LED (Quad-Color RGBA) 5 W, (500 mA, (952 mA) Life Expectancy: 50,000 Hours |
| Strobe Rate | 0 to 20 Hz |
| PWM Frequency | 2.43 kHz |
| Beam and Field Angle | Beam Angle: 15° Field Angle: 25° |
| Maximum Run Time | All On: Up to 8 Hours Single Color: Up to 20 Hours |
| Recharge Time | 6 Hours |
| Operating Frequency | 2.4 GHz |
| Illuminance | 355 lux at 6.6′ / 2 m |
| Bluetooth | 4.2 |
| Approvals | CE, FCC |
| Power | Input Voltage: 100 to 240 VAC, 50/60 Hz (Auto-Ranging)
Power and Current: Output: 12 VDC, 1 A (External Power Supply: 100 to 240 VAC, 50/60 Hz 75 mA) |
| Mounting | Bracket Mounting Hole: M10 |
| Dimensions (L x W x H) | 5.1 x 4.4 x 3.5″ / 130 x 111.5 x 89 mm |
| Weight | 0.8 lb / 0.4 kg |
