Description

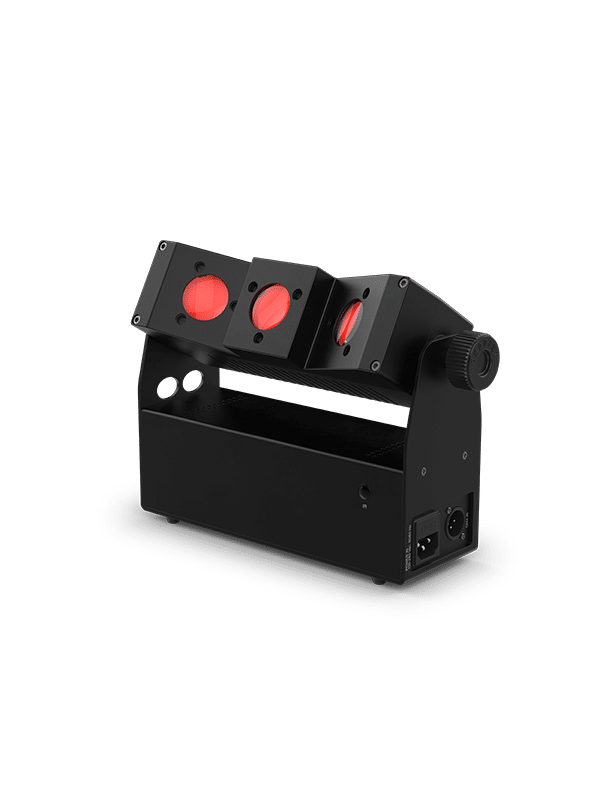

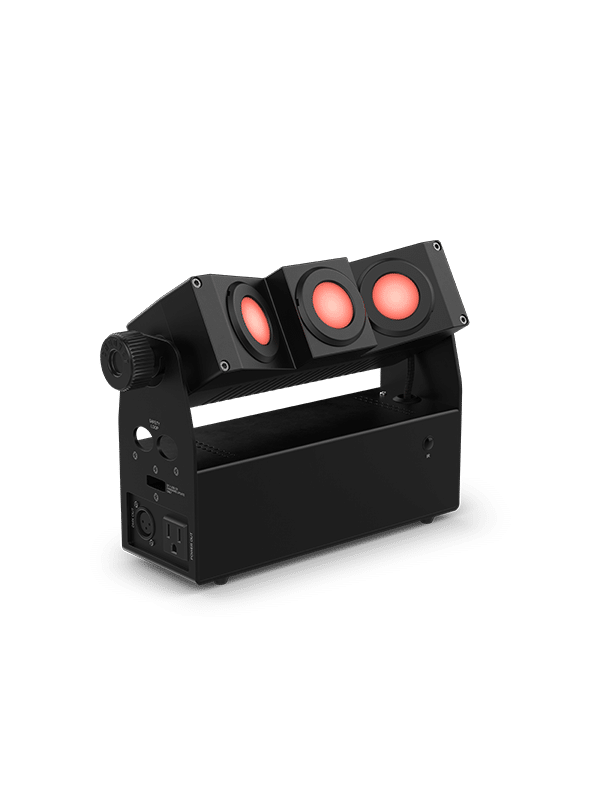

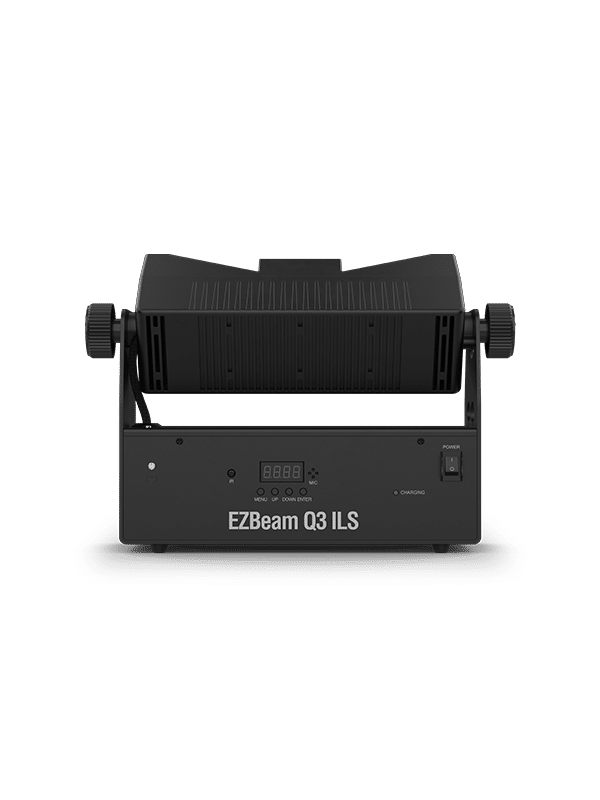

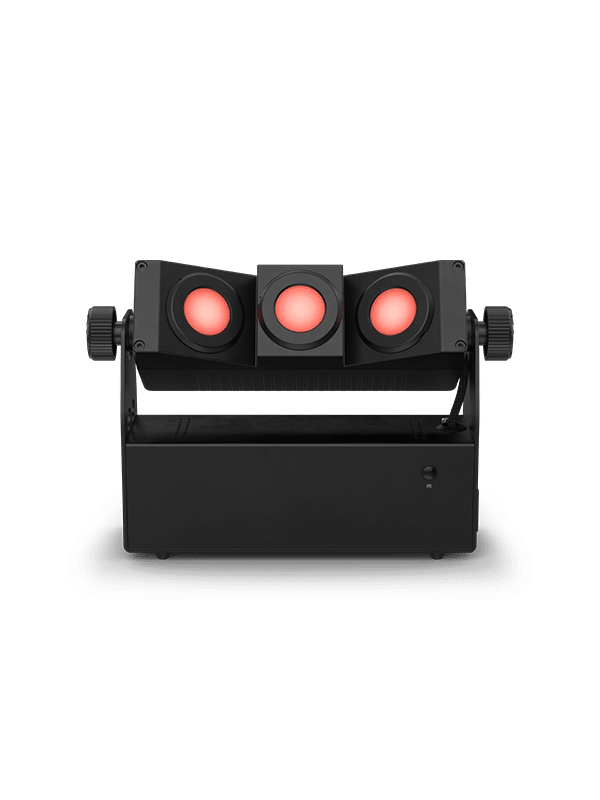

EZBeam Q3 ILS

EZBeam Q3 ILS is a battery-powered fixture that can work as both a wall accent and an effect light. Enjoy programming flexibility thanks to D-Fi compatibility for wireless DMX control. Combine multiple units to create unique wall art effects. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Silent operation makes this all-in-one fixture ideal for upscale, quiet events and environments.

Highlights
Battery-operated wall accent and effect light all in one

ILS compatibility for use in the ILS ecosystem

D-Fi USB compatibility for wireless master/slave or DMX control

Combine multiple units to create unique wall art effects

180° tilt range gives you lighting versatility

No moving parts means silent operation, ideal for quiet environments

Generate eye-catching effects with sound-activated and automated programs

Convenient, wireless non-DMX control using the IRC-6 remote

Specifications
DMX Channels:6, 9, 14 or 17DMX Connectors:3-pin XLRLight Source:3 LEDs (quad-color RGBA) 3.3 W, (1.3A), 50,000 hours life expectancyStrobe Rate:0 to 31 HzBeam Angle:16°Coverage Angle:24°Illuminance:172 lux @ 2 m (per pod)Power Linking:10 units @ 120 V; 18 units @ 230 VInput Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)Power and Current:55 W, 0.8 A @ 120 V, 60 HzWeight:7.6 lbs (3.4 kg)Size:12 x 3.5 x 8.5 in (308 x 89 x 217 mm)Approvals:CE, UKCA, RoHSOptional Controllers: IRC-6, ILS CommandMaximum Run Time (all on): up to 9 hoursMaximum Run Time (single color): up to 20 hoursRecharge Time: 5 hours
WHAT’S INCLUDED
EZBeam Q3 ILSPower cordQuick Reference Guide
