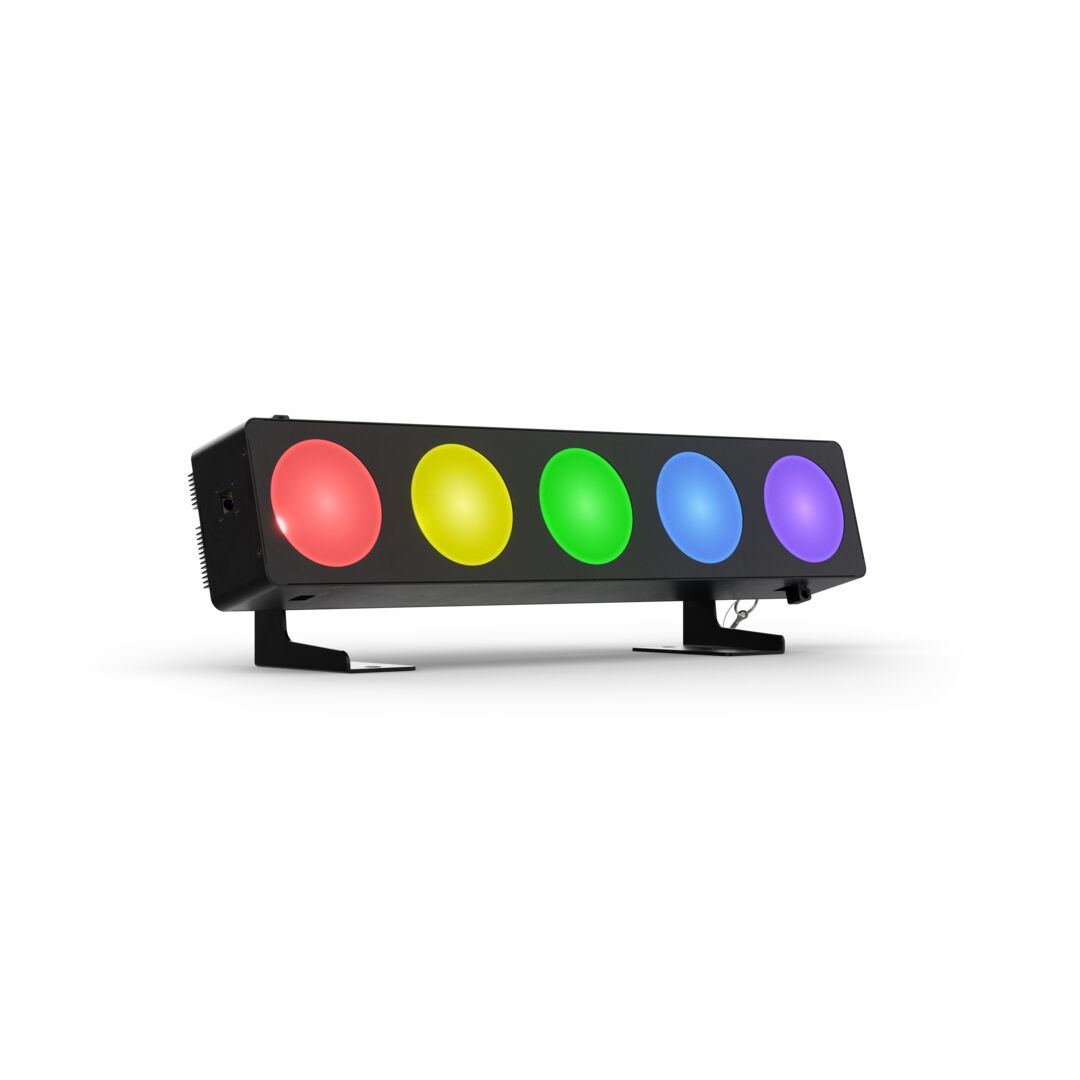

Chauvet DJ Core 5X1 ILS COB Blinder Wash with pixel mapping

Description

Core 5X1 ILS
Core 5×1 ILS projects smoothly saturated color with COB technology and a large reflector design ideal for bringing the most natural color tones to live setups. Create custom shapes with built-in tool-free connecting hardware. Add a D-Fi™ USB (sold separately) to wirelessly sync Core 5×1 ILS with multiple ILS fixtures of different types. Floor mount for a perfect uplight or attach multiple fixtures together for high-impact pixel-mapped looks, runway chase effects, blinder bursts or color washes.

Highlights
Multi-purpose effect light functions as a pixel-mapping effect, chase effect, blinder, or wash light.

Attach multiple fixtures together using the built-in, toolless connecting hardware

ILS compatibility for use in the ILS ecosystem (D-Fi™ USB sold separately)

Connect up to 6 fixtures together vertically using the toolless linking hardware

Generates a broad spectrum of colors and achieves natural-looking color temperatures with COB technology

Withstand the harshness of traveling from gig to gig with a robust housing

Offers multiple control options, including stand-alone, DMX, ILS, RF, or master/slave

Specifications
DMX Channels:4, 8, or 22DMX Connectors:3- and 5-pin XLRLight Source:5 LEDs (quad-color RGB+WW) 35W, (1.2A) 50,000 hours life expectancyStrobe Rate:0 to 20 HzBeam Angle:54°Field Angle:75°Illuminance:953 lux @ 2 mLumens:2,875Power Linking:6 units @ 120 V; 10 units @ 230 VInput Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)Power and Current:120 W, 1.8 A @ 120 V, 60 HzWeight:11 lbs (5 kg)Size:23.6 x 3.1 x 4.7 in (600 x 79 x 120 mm)Approvals:CE, RoHSCable Length: 5 ft (1.52 m)Bracket Mounting Hole: 13 mmOptional Controllers: ILS Command, RFC, RFC-XL
What’s Included
CORE 5X1 ILSPower cordQuick Reference Guide
