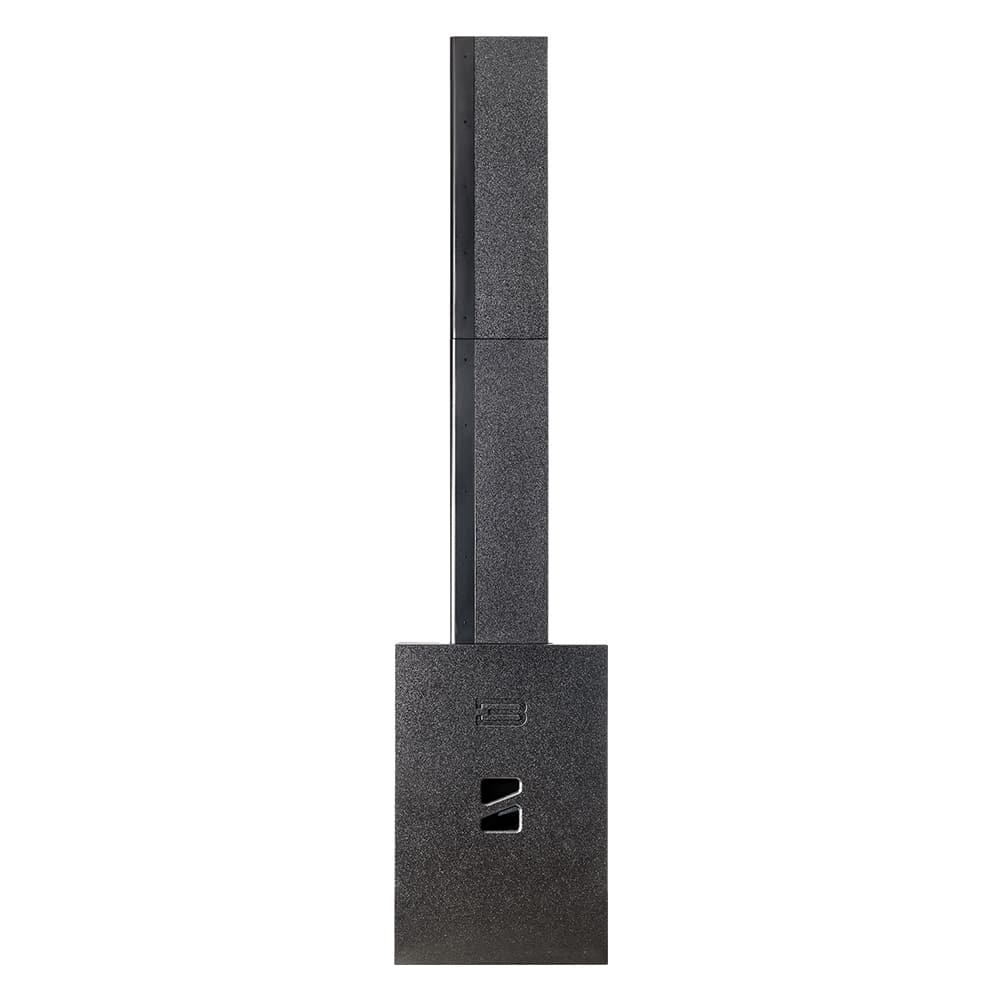

BASSBOSS Sublim8 Full Range Column PA Speaker w/ 18″ Sub – Black

Description

The BASSBOSS Sublim8 is a 3-Way Self-Powered Full Range Column Speaker System and Subwoofer Package that delivers exceptional coverage and fidelity along with super high output in a compact ready to roll package.

The Sublim8 is a fully re-imaged column; Deep, rich, crystal-clear, high output in a stealthy form factor that fits into any aesthetic and environment.   This 3-Way Self-Powered Full Range Column Speaker System and Subwoofer Package delivers exceptional coverage and fidelity along with super high output in a compact ready to roll package . The column-format section features dual 8” mid-ranges and a 3” voice coil, 1.4” throat compression driver on an isophasic wave guide.  The Integrated comprehensive DSP, 96kHz sampling rate, push button presets, and the BASSBOSS ControlBASS software application ensures ease of deployment, optimal sonic performance, and provides host of embedded features. The included wheel cart allows for efficient and streamlined transport.

Specifications
Acoustical
Loudspeaker Description Self-powered, 3-Way Active Full Range Loudspeaker Column
Frequency Response (±3 dB) 35Hz – 19,000Hz
Maximum Measured SPL 130 dB (half-space)
Max calculated SPL (Peak) 133 dB (half-space)
Nominal Dispersion (H° x V°) 120 x 20
Electrical
Amplification 4000W Class D (2400W LF + 800W MF + 800W HF)
Processing
Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton
presets. All presets include high pass filters, low pass filters, phase alignment,
equalization and multi-stage limiting. Storage capacity for up to 100 presets
Electrical Input Connector, Amp Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
Electrical Connector, Mains USA 3-pin grounding 120V electrical plug: NEMA 5-15; Outside
USA alternate connectors provided
Voltage Operating Range 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw, Nominal Display 5.4A @ 120V (nominal), 2.5A @ 240V (nominal)
LEDs for Power on/ready, Signal, -12dB, -6dB, Limiter Active, Thermal,
Protect and LAN Link Active. Eight LEDs indicating selected preset
Signal Input Connector XLR-F
Signal Output Connector XLR-M (Direct pass-through, unprocessed)
LAN Connectors EtherCON RJ45 (x2) with 2-port Ethernet switch

Physical
Enclosure Type
Transducer LF Transducer MHF Transducers, HF Cabinet Construction Suspension Points Dimensions (Transport) Dimensions (Assembled) Dimensions (Top) DImensions (Sub) DImensions (Spacer) Net Weight Shipping Weight Exterior Finish Grilles What’s Included
3-Way Full-Range Loudspeaker System. Vented direct radiator subwoofer
cabinet, vented direct radiator mid-bass cabinet with Isophasic waveguide
loaded High Frequency section and an interlocking spacer.
1 x 18 in. diameter (450mm) neodymium motor woofer with 4 in. (100mm) voice
coil, waterproof cone
2 x 8” diameter (210mm) neodymium motor woofers with dual 2” (51mm) voice
coils and waterproof cones
1 x 3 in. (76mm) diameter diaphragm compression driver with 1.4” (35mm)
exit mounted to isophasic wave guide
CNC machined 15 and 18mm Birch plywood with extensive bracing and dado
joinery. 3 interlocking sections: sub, spacer and top. 6 handles (2 per section).
None. Attachment to secure a light fixture is provided in the top section.
34” x 37” x 25.75” (86.36 x 93.98 x 65.41 cm)
106” x 19.75” x 24”
36” x 8.5” x 11.25” (91.44x 21.59 x28.58 cm)
36” x 19.75” x 24” (91.44 x 50.17 x 60.96 cm)
36” x 8.5” x 11.25” (91.44x 21.59 x28.58 cm)
200 lbs (90.7 kg) | Spacer: 22 lbs Top: 39 lbs Sub: 100 lbs (10 x 17.6 x 45.45 kg)
230 lbs (104 kg)
High-pressure, bonded polyurea coating. Rugged, waterproof. Black or white
Perforated, powder-coated steel with hydrophobic backing
Subwoofer Cabinet, Mid-high cabinet, Spacer cabinet, Pass-though speaker
interconnect cable, pass-through power cable, (for lighting) Transport Dolly Cart
with 4 locking 4” casters, Subwoofer Cover, Mid-high cover, Spacer Cover, 15-
foot (5m) Power Cord, Owner’s Manual, Warranty Registration Card
Included
Dolly Hardware Birch plywood flat cart with 4 locking wheels
M6 shoulder eye bolts. (2)
Our proactive philosophy causes specifications to be subject to change whenever improvements are made.
