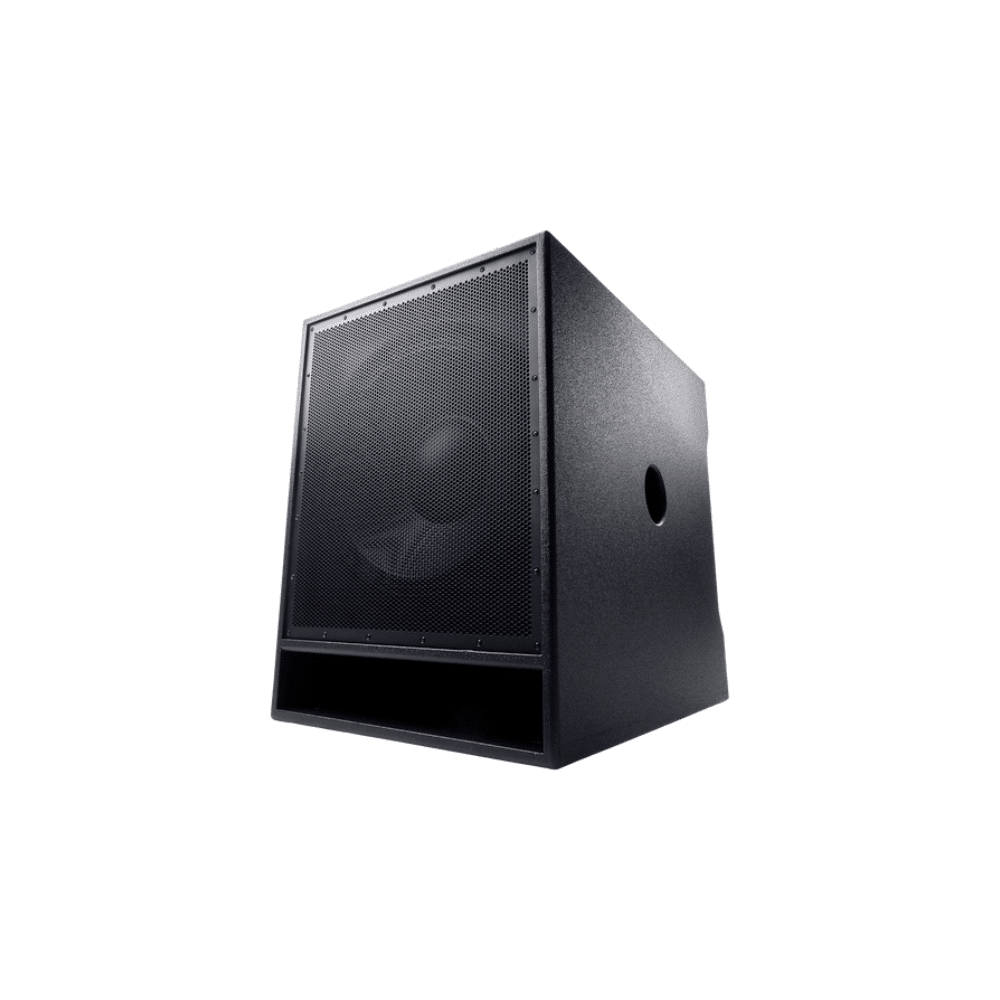

BASSBOSS DJ18S-MK3 Single 18ʺ Powered Subwoofer

Description

Single 18″ Self-Powered Vented Direct-Radiating Subwoofer

Frequency Response (±3 dB)
27 – 100Hz +-3 dB
Maximum Sustained Output
129 dB SPL 1m half-space
Max SPL (Peak)*
132 dB SPL 1m half-space
Nominal Dispersion (H° x V°)
360 x 360 – Cardioid Mode Available with Multiple Boxes
Amplification
2500 Watts Class D
Processing
Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage apacity for up to 100 presets
Electrical Connector Amp
Neutrik powerCON True 1 TOP IP65 rated waterproof connectors
Electrical Connector Mains
Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)
Voltage Operating Range
100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)
Current Draw 120V
4.6 Amps (Nominal)
Current Draw 240V
2.3 Amps (Nominal)
Signal Input Connector
XLR-F
Signal Output Connector
XLR-M (direct pass-through only)
Enclosure Type
Direct radiating, vented enclosure, optimally tuned for high sensitivity at low frequencies
Transducer Low Frequency
1 x 18 in. diameter (457mm) neodymium motor woofer with 4.5 in. (115mm) voice coil
Cabinet Construction
CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 2 integrated handles. 1 x 35mm steel pole socket. 4 rubber feet. 16 T-nuts and bolts for mounting optional casters.
Exterior Finish
High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black
Grille
Perforated, powder-coated steel
Dimensions (HxWxD)
27.5 in. x 20.5 in. x 29.5 in. (28.75 in. high with feet)
Net Weight
110 lbs
Shipping Weight
120 lbs
What’s Included
Loudspeaker, 15′ (5m) Power Cable, Manual, Warranty Card
