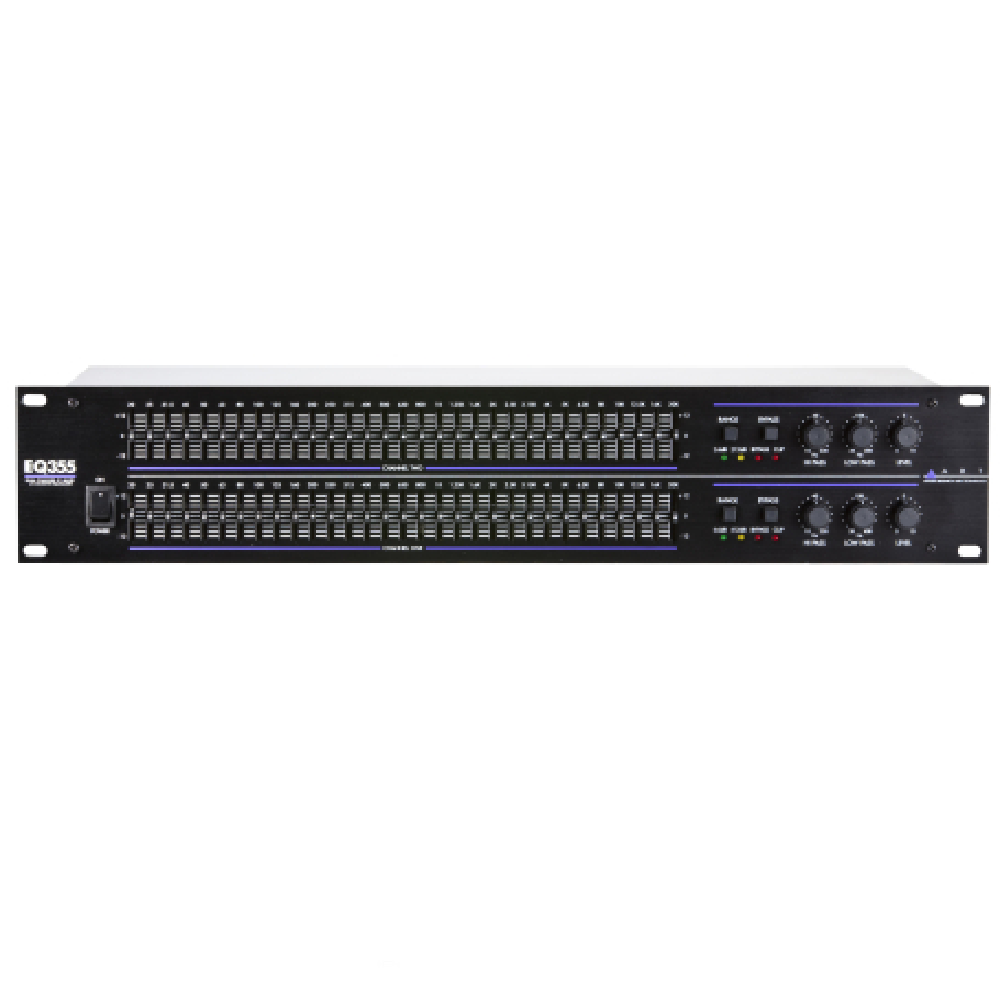

ART-EQ355 Dual 31-Band Graphic EQ

The EQ355 is a dual-channel EQ with 31 bands per channel. Each channel has an independently switchable range of 6 or 12 dB, variable high-pass and low-pass filters, master level control, and bypass switch to quickly compare the dry and processed signals.

The rear panel has balanced XLR, balanced 1/4 TRS, and unbalanced RCA connectors, so the EQ355 is easy to integrate into any system. It also features a ground lift switch to help eliminate hum.

Just need a single channel? Check out the EQ351.

Features

• Dual 31-Band Graphic EQ
• 20mm Sliders with Centre Detent
• Switchable 6 dB or 12 dB Range
• Variable High-Pass and Low-Pass Filters
• Master Level Controls
• Balanced XLR and 1/4″ TRS Inputs and Outputs
• Unbalanced RCA Input and Output
• 2U Rackmount

• Specifications

  Channels	2
  Bands per Channel	31 (1/3 Octave, ISO Spacing)
  Accuracy	+/- 3% of Centre Frequency
  Sliders	20 mm with Centre Detent
  Range	+/- 6 dB or +/- 12 dB
  Inputs	2x Balanced XLR and 1/4″ 2x Unbalanced RCA
  Input Impedance	20 kΩ (Balanced) 15 kΩ (Unbalanced)
  Maximum Input Level	+22 dBm (Level Control at Centre)
  Outputs	2x Balanced XLR and 1/4″ 2x Unbalanced RCA
  Output Impedance Level	<150Ω (Typical)
  Frequency Response	20 Hz to 20 kHz (+/- 0.5 dB)
  Signal to Noise Ratio	-94 dB
  Total Harmonic Distortion	0.01%
  High-Pass Filter	10 Hz – 250 Hz (12 dB per Octave)
  Low-Pass Filter	3 kHz – 40 kHz (12 dB per Octave)
  Overload LED Threshold	6 dB below Clipping (All Filters Flat)
  Dimensions (HWD)	3.5” x 19” x 7 8.9 cm x 48.3 cm x 17.8 cm)
  Weight	9.0 lbs / 4.1 kg
