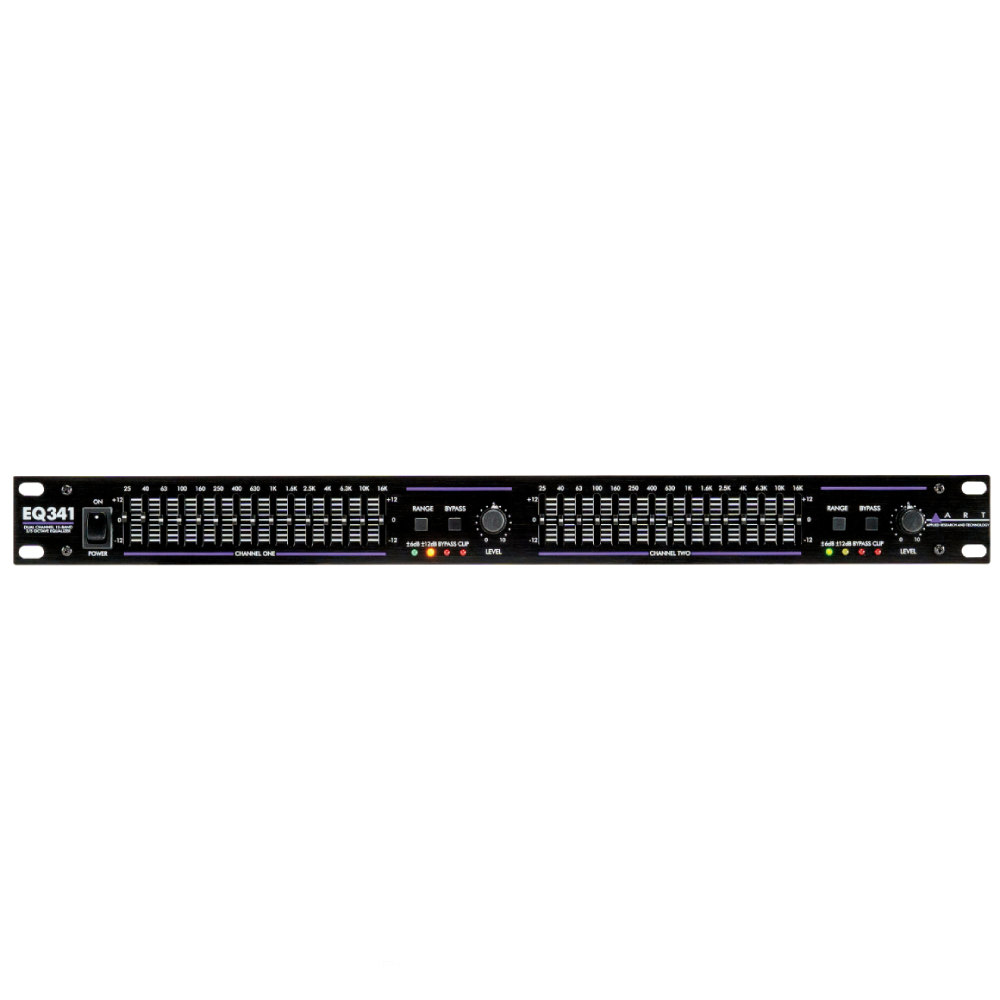

ART-EQ341 Dual 15-Band Graphic EQ

Description

ART 300-Series graphic equalizers are designed for live sound, studio, and installation audio applications to provide intuitive sound shaping, versatile features, and silent operation.

The EQ341 is a dual-channel 15-band EQ. Each channel has an independently switchable range of 6 or 12 dB, master level control, and bypass switch to quickly compare the dry and processed signals.

The rear panel has balanced XLR, balanced 1/4” TRS, and unbalanced RCA connectors, so the EQ341 is easy to integrate into any system. It also features a ground lift switch to help eliminate hum.

Looking for even more control? Check out the dual 31-band EQ355.

Features

• Dual 15-Band Graphic EQ
• 20mm Sliders with Centre Detent
• Switchable 6 dB or 12 dB Range
• Master Level Controls
• Balanced XLR and 1/4″ TRS Inputs and Outputs
• Unbalanced RCA Input and Output
• 1U Rackmount

• Specifications

  Channels	2
  Bands per Channel	15 (2/3 Octave, ISO Spacing)
  Accuracy	+/- 3% of Centre Frequency
  Sliders	20 mm with Centre Detent
  Range	+/- 6 dB or +/- 12 dB
  Inputs	2x Balanced XLR and 1/4″ 2x Unbalanced RCA
  Input Impedance	20 kΩ (Balanced) 15 kΩ (Unbalanced)
  Maximum Input Level	+22 dBm (Level Control at Centre)
  Outputs	2x Balanced XLR and 1/4″ 2x Unbalanced RCA
  Output Impedance Level	<150Ω (Typical)
  Frequency Response	20 Hz to 20 kHz (+/- 0.5 dB)
  Signal to Noise Ratio	-94 dB
  Total Harmonic Distortion	0.01%
  Channel Separation	>50 dB
  Overload LED Threshold	6 dB below Clipping (All Filters Flat)
  Dimensions (HWD)	1.75” x 19” x 5.5” 4.4cm x 48.3 x 14 cm
  Weight	4.85 lbs. / 2.2 kg
