ADJ Focus Spot 7Z

$4,699.99

Free Shipping
More on the way soon!


-

Contact us for exact availability - 1-888-621-DJDJ (3535)
Or send us an email
SKU: FOC750 Category: Brand:

Description

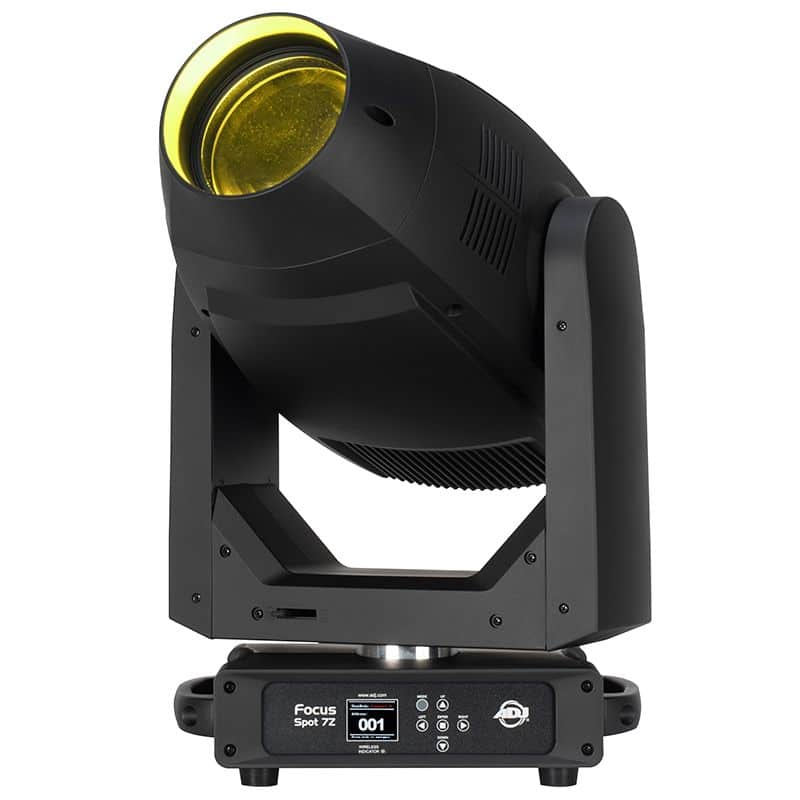

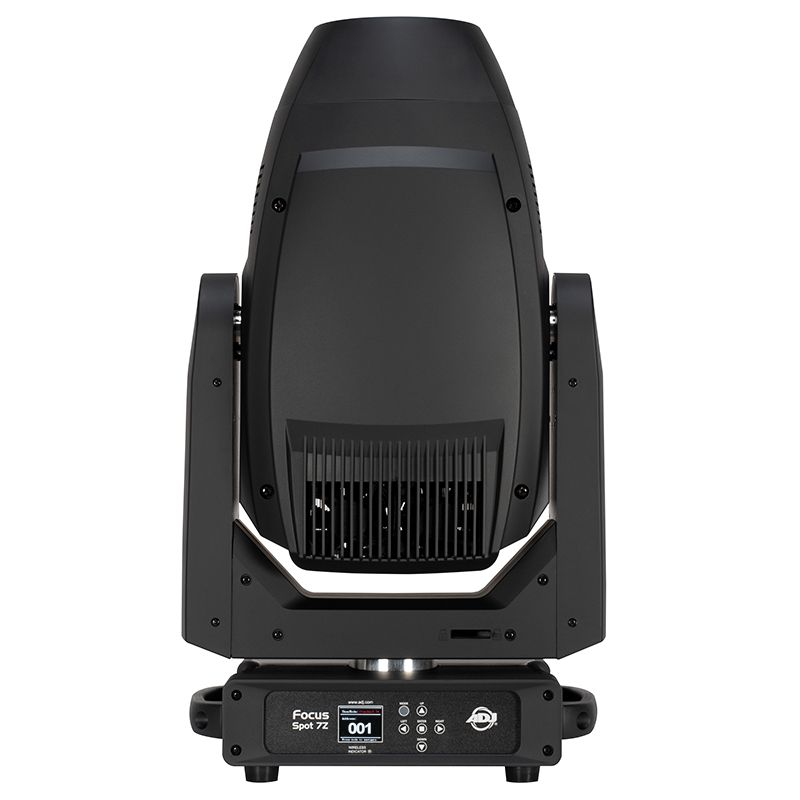

Offering an impressive output of 20,000 Lumens, the ADJ Focus Spot 7Z is
a powerful and feature-packed moving head spot luminaire capable of
producing spot and wash effects. Its efficient 420W LED light engine and
superior optics allow the fixture to deliver crisp and even
projections, while its extensive collection of integrated beam-shaping
tools provide lighting designers with immense creative potential. These
include full CMY + CTO color mixing; an animation wheel; motorized zoom
(6° ~ 48°), focus and iris; as well as twin GOBO wheels, rotating prisms
and frost filters.



Part of ADJ’s popular Focus Series of LED-powered moving head
luminaires, the Focus Spot 7Z is a potent and feature-rich spot fixture.
Its light source is an efficient 420W white (8,000K) LED engine, which
has an average operational life of 20,000 hours. Focused through
precision-engineered optics, it allows the fixture to generate a bright,
punchy and even output of 20,000 Lumens.

An
exhaustive collection of beam-shaping tools is packed into the Focus
Spot 7Z, equipping lighting designers to fully unleash their creative
potential. This begins with an advanced color selection system which
combines a variable CMY and CTO (2,700K to 8,000K) color mixing system
with a color wheel that features seven dichroic slots (including High
CRI and CRB filters).
The fixture features two
independent GOBO wheels, each of which incorporate seven slots for
interchangeable, indexed-rotating patterns. In addition, it also
incorporates an animation wheel with indexed rotation as well as two
separate rotating prisms (4-facet circular and 6-facet linear).
Motorized zoom (6° ~ 48°), focus and iris are integrated into the
optical system as are two separate frost filters (Light to blur GOBO
patterns and Heavy to generate a wash output).
Weighting
in at only 51.7 lbs. (23.45kg), the Focus Spot 7Z is lighter and has a
smaller footprint than other leading spot/wash fixtures in its class.

SOURCE

420W White LED Engine
20,000 Hour Average LED Life

PHOTOMETRIC DATA
20,000 Total Lumens
8,000K, >73CRI (without CRI Filter)
7,700K >85CRI (with CRI Filter)
56,513 LUX @16.4’ (5m) (6° Beam)
1,585 LUX @16.4’ (5m) (48° Beam)

EFFECTS
4-Facet Circular & 6-Facet Linear Rotating Prisms
2 Frost Filters (Light & Heavy)
Animation Wheel (Rotatable and Indexable)
Motorized Zoom (6° ~ 48°)
Motorized Focus
Motorized Iris
Electronic Dimming & Strobe (1-20Hz)

COLOR
Full CMY color mixing
Variable CTO (2,700K to 8,000K)
Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
CMY and Color Wheel preset macros

GOBOS
(2) Gobo Wheels
#1 – (7) Interchangeable Rotating-Indexing Glass Gobos
#2 – (7) Interchangeable Rotating-Indexing Glass Gobos

CONTROL / CONNECTIONS
(3) DMX Channel Modes (30 / 34 / 45)
DMX512, ArtNet and sACN protocols
WiFLY Wireless DMX Built-in
RDM (Remote Device Management) compliant
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
5-pin XLR DMX In/Out
RJ45 connectors In/Out
Locking In/Out power connections
With Wired Digital Communication Network

PAN / TILT
Pan: 540-degrees
Tilt: 270-degrees
Pan & Tilt Locks
SIZE / WEIGHT
Length: 18.8” (477.5mm)
Width: 14.7” (374mm)
Vertical Height: 25.7” (653mm)
Center Spacing: 24.0” (609.6mm)
Weight: 55.3 lbs. (25.1kg)

ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
Max Power Consumption: 524W
Max ambient temperature: 14°F to 113°F (-10°C to 45°C)
Max housing temperature: 136°F (58°C)
TECHNICAL DATA
DB Rating @ 3ft.: 49dB
BTU: 0.53
BTU/H: 1,909.60

APPROVALS / RATINGS
CE | ETL Approved (Control #4010765)
IP20
INCLUDED ACCESSORIES
Locking Power cable
180mm Omega brackets (x2)
