ADJ D4 Branch RM 4-Way DMX Splitter w/ 3-pin & 5-pin

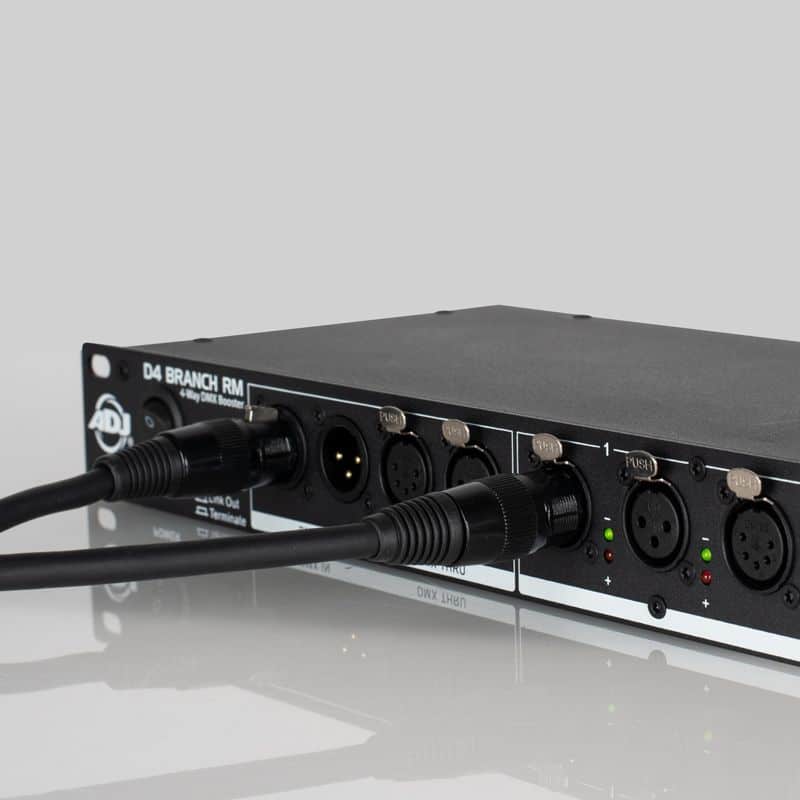

The ADJ D4 Branch
RM is a single rack space, 4-way distributor/booster with 3-pin and
5-pin XLR input and output jacks. This unit takes the incoming DMX
signal and splits it to four (4) separate outputs that are
electronically isolated from each other to ensure uninterrupted data. In
addition, each output has dedicated drivers to boost the incoming
signal, and the unit includes a link / terminate button for easy
troubleshooting.

• 4-Way DMX Data Splitter / Fully DMX512 (1990) Compliant

• Built-in signal amplifier boosts the DMX signal for each port

• Link / Terminate Button for Easy Troubleshooting

• DMX Status LED Indicator

• (1) 3-pin + (1) 5-pin XLR Isolated Inputs

• (1) 3-pin + (1) 5-pin XLR Passive Loop Output

• (4) 3-pin + (4) 5-pin XLR Isolated Outputs

 • 19” (482mm) x 5.5” (139.8mm) x 1.7” (44mm)

• 5.3 lbs. (2.4kg)

 • AC 120V/60Hz (U.S. Only), AC 240V/50Hz (E.U. Only)

• cETLus pending

• CE approved
