Description

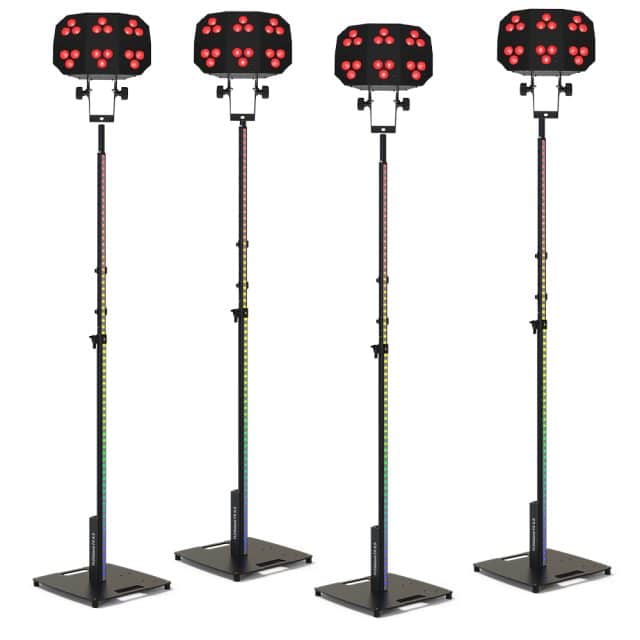

FLEXstand FX ILS

Simplify setups and get the party started faster with FLEXstand
FX ILS, the multi-purpose stand that doubles as a lightshow. This
heavy-duty timesaver has 68 built-in LEDs and auto programs
that can be resized to fit the chosen stand height. Its trigger-style
safety release enables DJs, performers, and event managers to
make smooth and secure height adjustments on the fly. ILS, RF,
and DMX control options mean this stand can be operated just
like any other lighting fixture for flawlessly synced shows every
time. Quickly achieve eye-catching mobile entertainment setups
with FLEXstand FX ILS.

HIGHLIGHTS
Multi-purpose, telescoping stand safely supports lighting
and audio gear
Built-in LED strip adds pizazz and eye-candy effects to
mobile entertainment setups
Auto programs can be resized to fit the chosen height of the
stand
Built-in RF receiver and compatible with the RFC and RFC-
XL remotes (sold separately)
Compatible with the ILS ecosystem (DFI-USB sold
separately)
Different pole diameters accommodate clamps and taper
into a speaker mount on top
Trigger-style safety release allows the pole to descend
safely
Toolless design allows for fast and easy setup and tear
down
Threaded pole can be inserted into multiple positions for different applications
Cast iron base includes rubber feet that won’t scratch delicate floors and allows for quick retrieval

SPECIFICATIONS
DMX Channels : 4, 15, 18, 34, 66, or 94
DMX Connectors : 3-pin XLR
Light Source : 68 LEDs (quad-color RGB+WW) 0.8W, 50,000 hours life expectancy
Strobe Rate : 0 to 20 Hz
Operating Frequency : 2.412 to 2.48 GHz
Power Linking : 34 units @ 120 V; 47 units @ 230 V
Input Voltage : 100 to 240 VAC, 50/60 Hz (auto-ranging)
Approvals : CE, FCC
Load Capacity : 132 lb (60 kg)
Cable Length : 5 ft (1.52 m)
Power and Current : 15 W, 0.2 A @ 230 V, 50 Hz
Power and Current : 15 W, 0.3 A @ 120 V, 60 Hz
Weight (pole) : 8.2 lbs (3.7 kg)
Weight (base) : 34.2 lbs (16 kg)
Weight (combined) : 42.4 lbs (19.2 kg)
Threaded inserts (bottom) : M10-1.0 TPI
Threaded insert (top) : M10-1.5 TPI
Pole Height : 4.8 to 8 ft (1.5 to 2.4 m)
Pole Diameter (Top) : 1.34 in (34 mm)
1.7 in (44 mm) : Pole Diameter (Bottom)
2 in (50 mm) : Optional Controllers

WHAT’S INCLUDED
FLEXstand FX ILS
Power cord

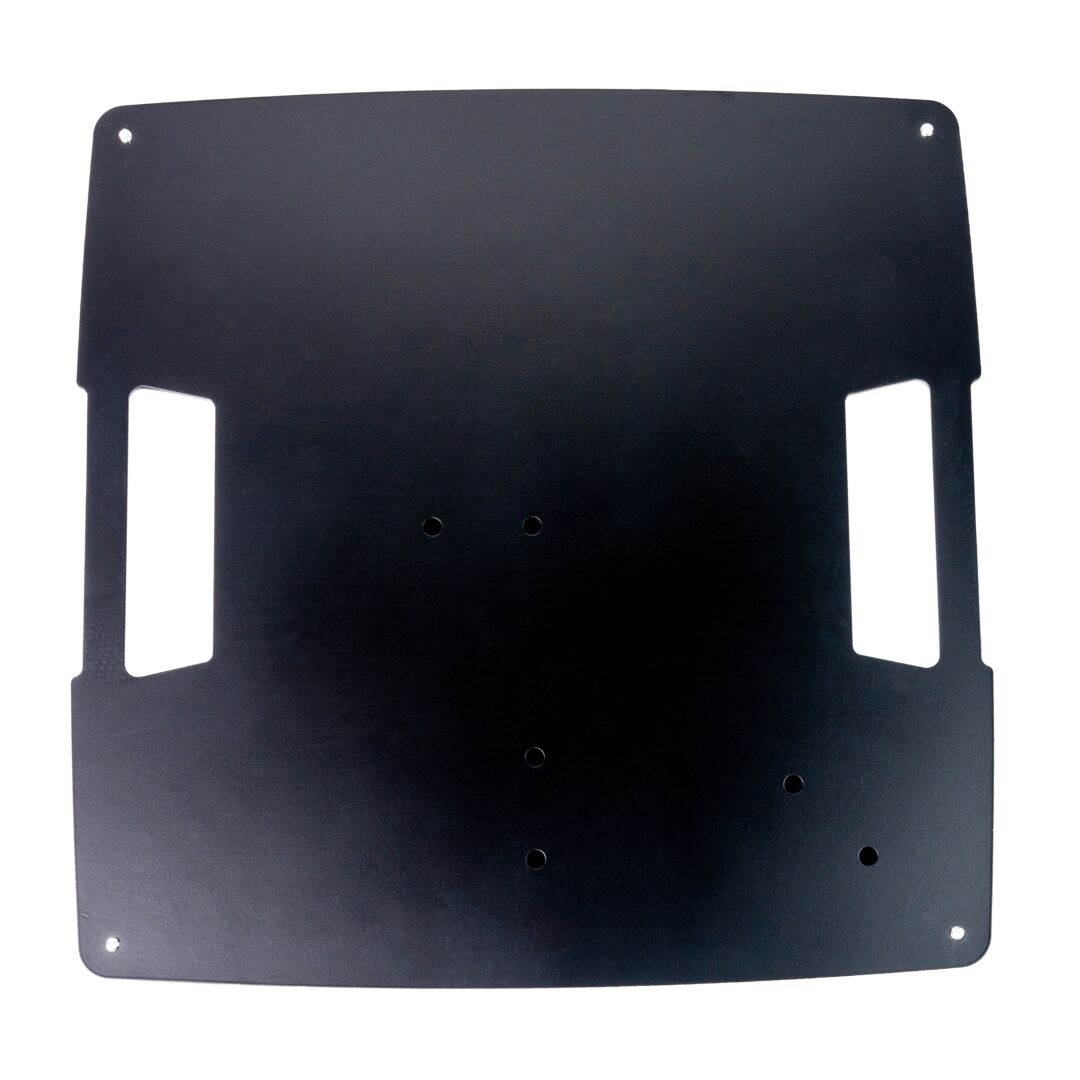

Base

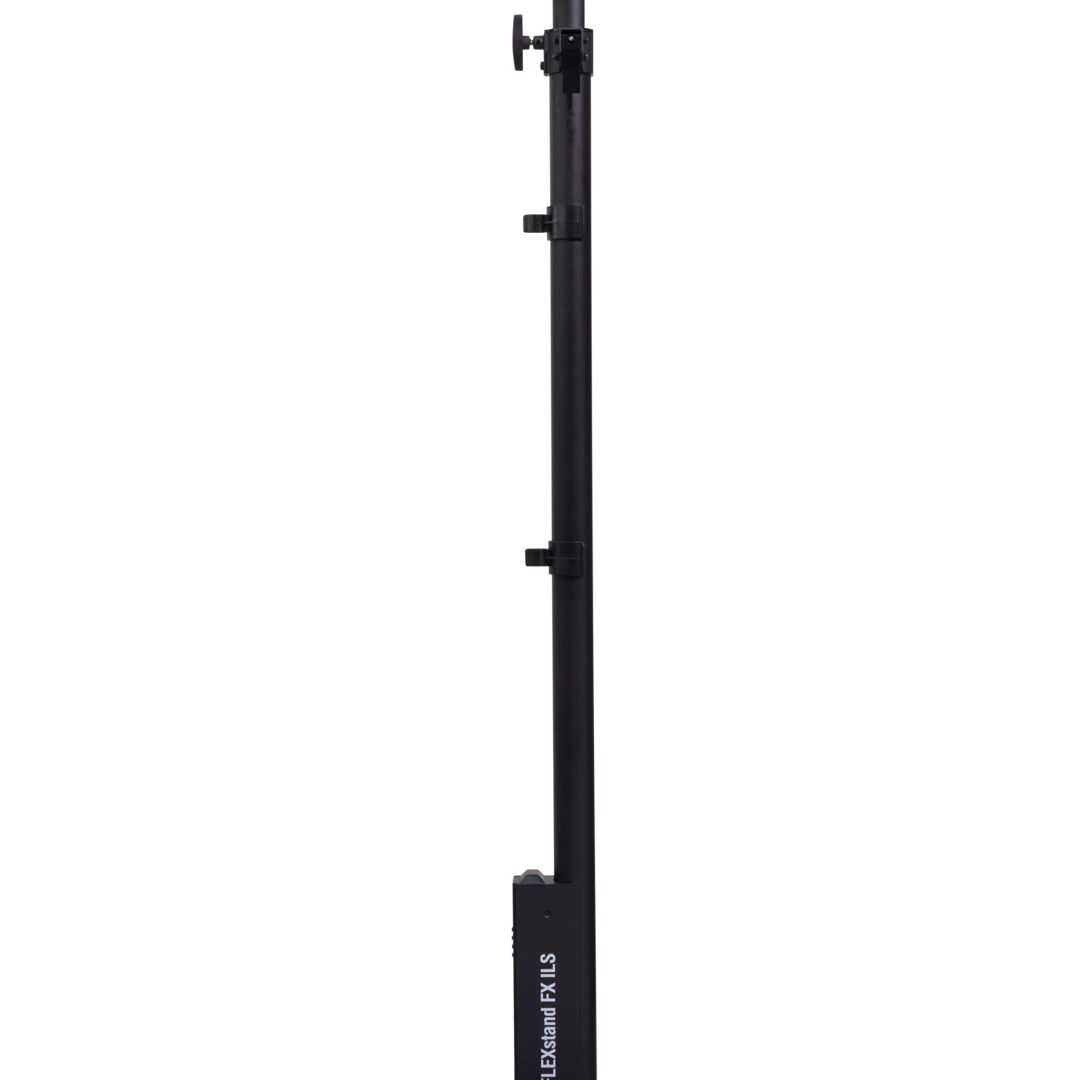

Extension pole

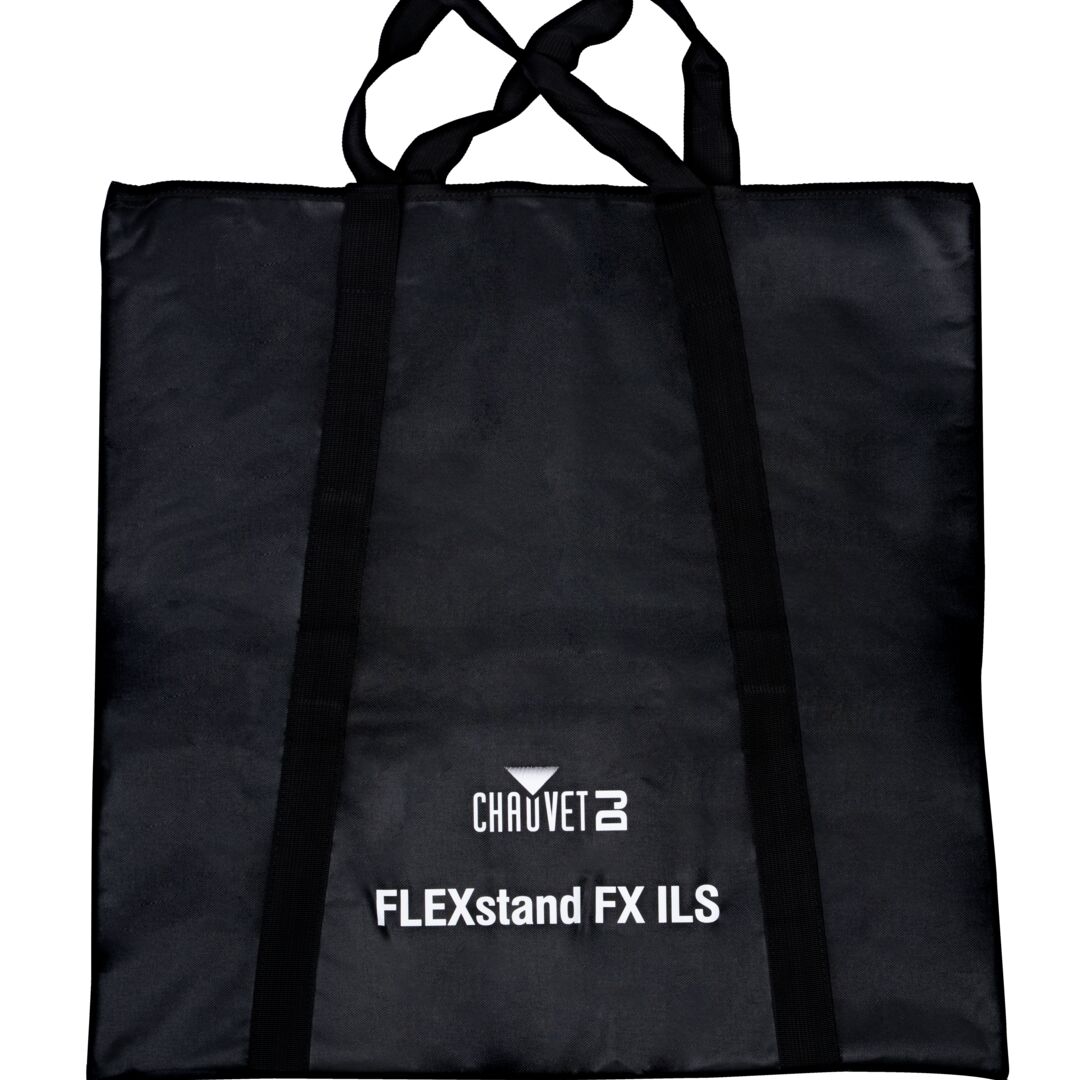

Carry Bag
Cable clips (x2)
QRG
