4 Channel XLR-M CAT6 Audio/DMX Portable Snake Box

Description

Description

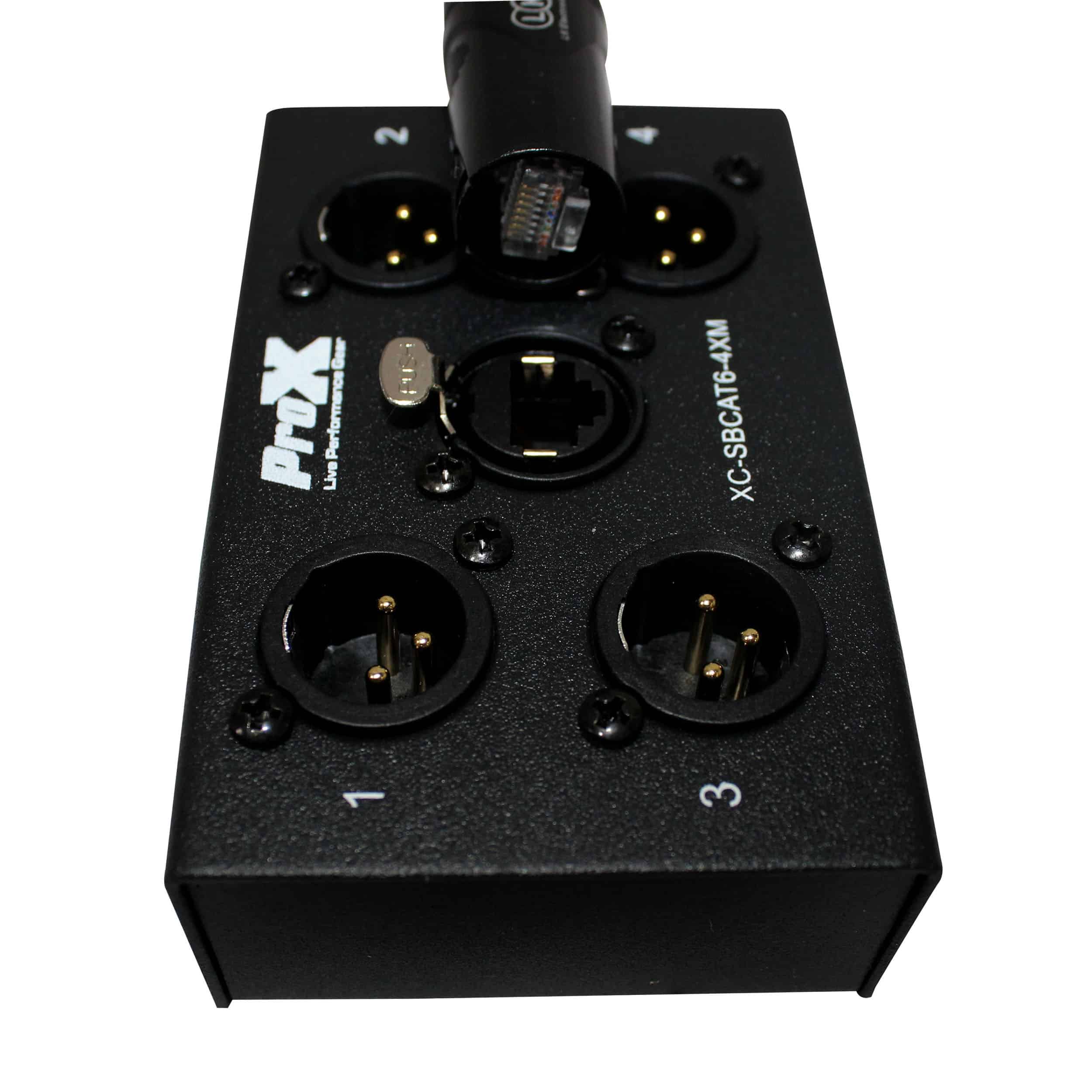

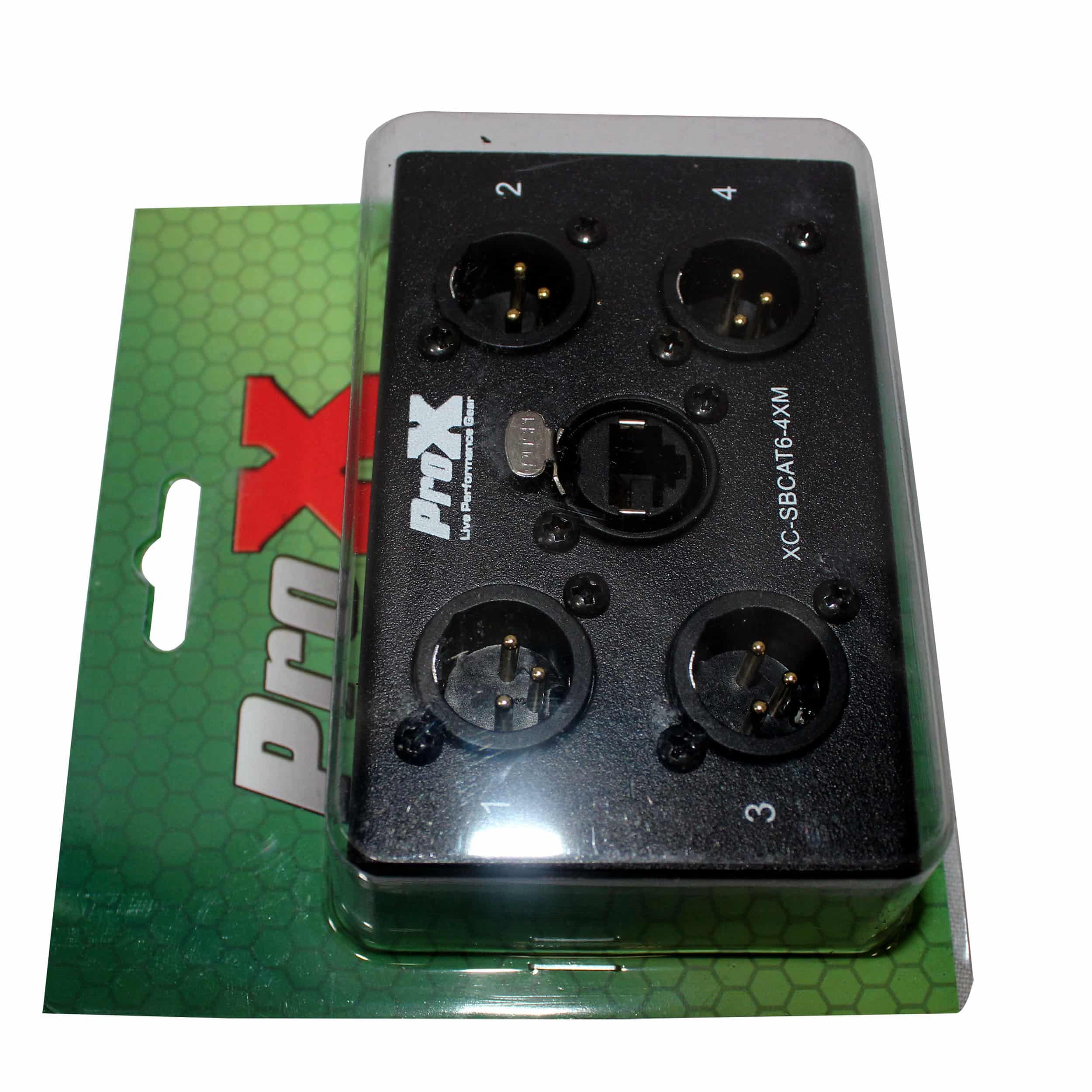

The ProX XC-SBCAT6-4XM Audio Snake Box is half of a pair of metal boxes that are used to send up to four audio/DMX signals over a single run of CAT-5, CAT-5E or CAT-6 cables. They are low-cost & compact.  Both an XC-SBCAT6-4XF and an XC-SBCAT6-4XM are required for the working pair.

Designed to the highest professional standards the XC-SBCAT6-4XM Snake Box has a wide, flat frequency response

You can mix and match Mic/Line, Line or AES/EBU configurations making the Snake Box a very versatile high-quality means of transporting analog or digital signals. This Snake Box has been factory tested over CAT-5 UTP & CAT-6 STP cables.

Features

    Analog Audio or Digital DMX
    Gold Plated Contacts
    Mic / Line / AES audio all on the same cable
    Supports 48V Phantom power (needs STP Shielded CAT-x cable
    No Ground Loops
    Add a second unit to increase the number of channels
    Rugged ‘road-ready’ construction
    RoHS Compliant
    Bandwidth: 20 Hz to 20 kHz
    Crosstalk: Better than -95 dB at 20 KHz
    Connectors: PBE-202S Sending end – 4x Female XLR to Ethercon RJ45 jack
    PBE-202R Receiving end – Ethercon RJ45 to 4x Male XLR
    Dimensions: 107mm x 70mm x 45mm
    Weight: 400 grams (0.4 Kg)
