2 Pack Ortofon OM Scratch White Premounted on Blue SH-4 Headshell (White/Blue)
$371.98
Free Shipping
-
In stock
Description
Ortofon SCRATCH WHITE OM PREMOUNT Overview

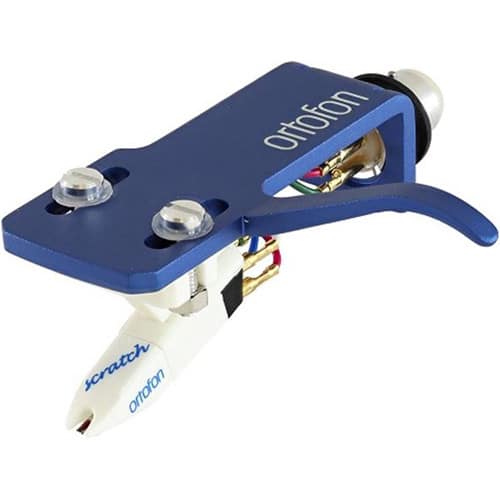

The white and blue Ortofon OM Scratch Pre-Mounted on SH-4 Headshell
combines the white Scratch cartridge and spherical stylus with a blue
SH-4 headshell to create a ready-to-install turntable solution for
S-shaped tonearms.
The OM Scratch is designed to provide
increased tracking ability and features reinforced rubber suspension to
ensure sound quality and lengthen stylus life when working with higher
tracking forces. With solid bass reproduction and extended highs, the
Scratch can be used for any music style.
- Universal mount fitting a wide range of S-shaped tonearms
- Correct Baerwald alignment with the major part of tonearms with universal mount
- Spherical stylus minimizes scratching
- Increased tracking ability
- Reinforced rubber suspension
Ortofon SCRATCH WHITE OM PREMOUNT Specs
| Output Voltage | 7 mV at 1 kHz, 5 cm per Second |
| Channel Balance | 1.5 dB at 1 kHz |
| Channel Separation | 25 dB at 1 kHz 15 dB at 15 kHz |
| Frequency Range | 20 Hz to 20 kHz (-3 dB) |
| Frequency Response | 20 Hz to 15 kHz (+3 dB / -2 dB) |
| Tracking Ability | Recommended Tracking Force: 80 μm at 315 Hz |
| Compliance | Dynamic Lateral: 6 μm/mN |
| Stylus Type | Spherical |
| Stylus Radius | Tip: R 18 μm |
| Tracking Force | Range: 3 to 5 g (30 – 50 mN) Recommended: 4 g (40 mN) |
| Tracking Angle | 20° |
| Internal Impedance | DC Resistance: 750 Ohms |
| Internal Inductance | 450 mH |
| Load Resistance | Recommended: 47 kOhms |
| Load Capacitance | Recommended: 200 to 600 pF |
| Replacement Stylus | Scratch White |
| Cartridge Weight | OM Premounted on SH-4 Weight: 0.5 oz / 14.5 g (Includes Screws) |
