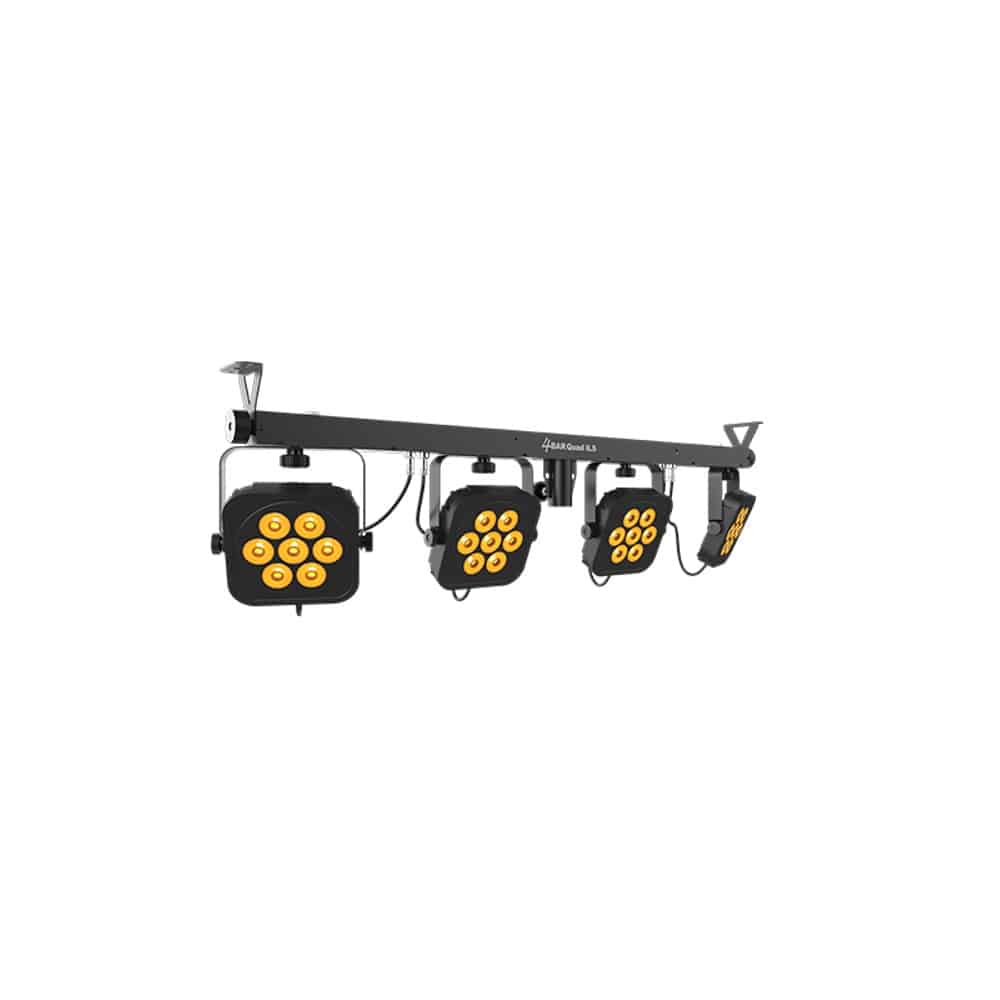

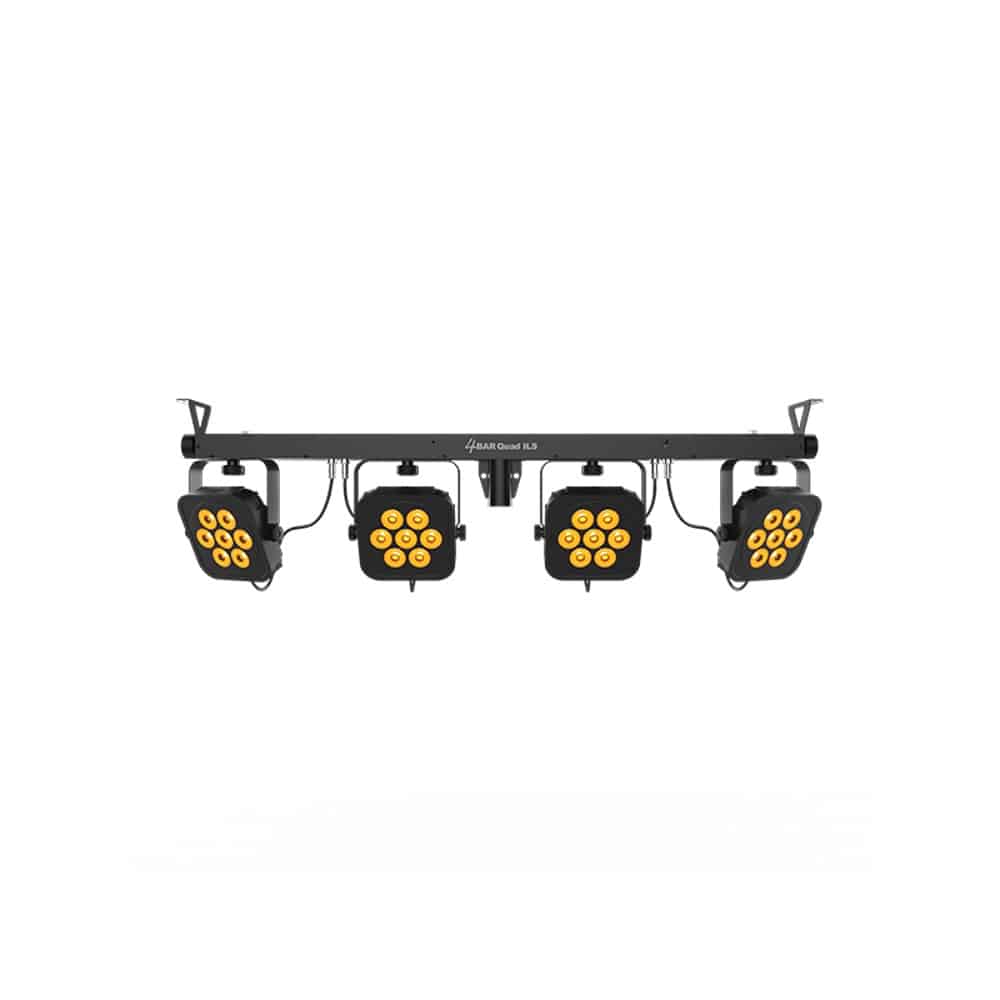

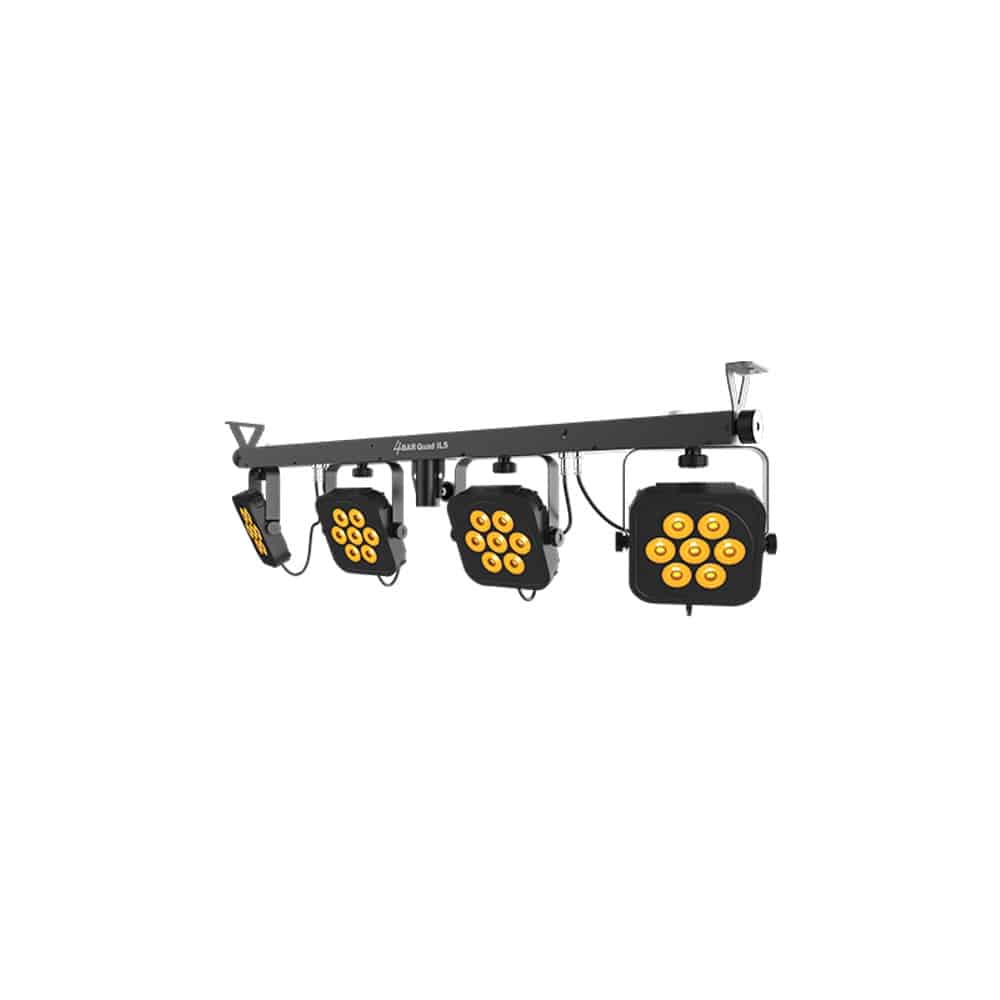

Chauvet 4BAR Quad ILS wash lighting

Description

Highlights

    Complete wash lighting solution fitted with high-intensity, quad-color (RGBA) LEDs

    ILS compatibility for use in the ILS ecosystem

    Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs

    Out of the box wireless control with included footswitch or optional IRC-6 controller

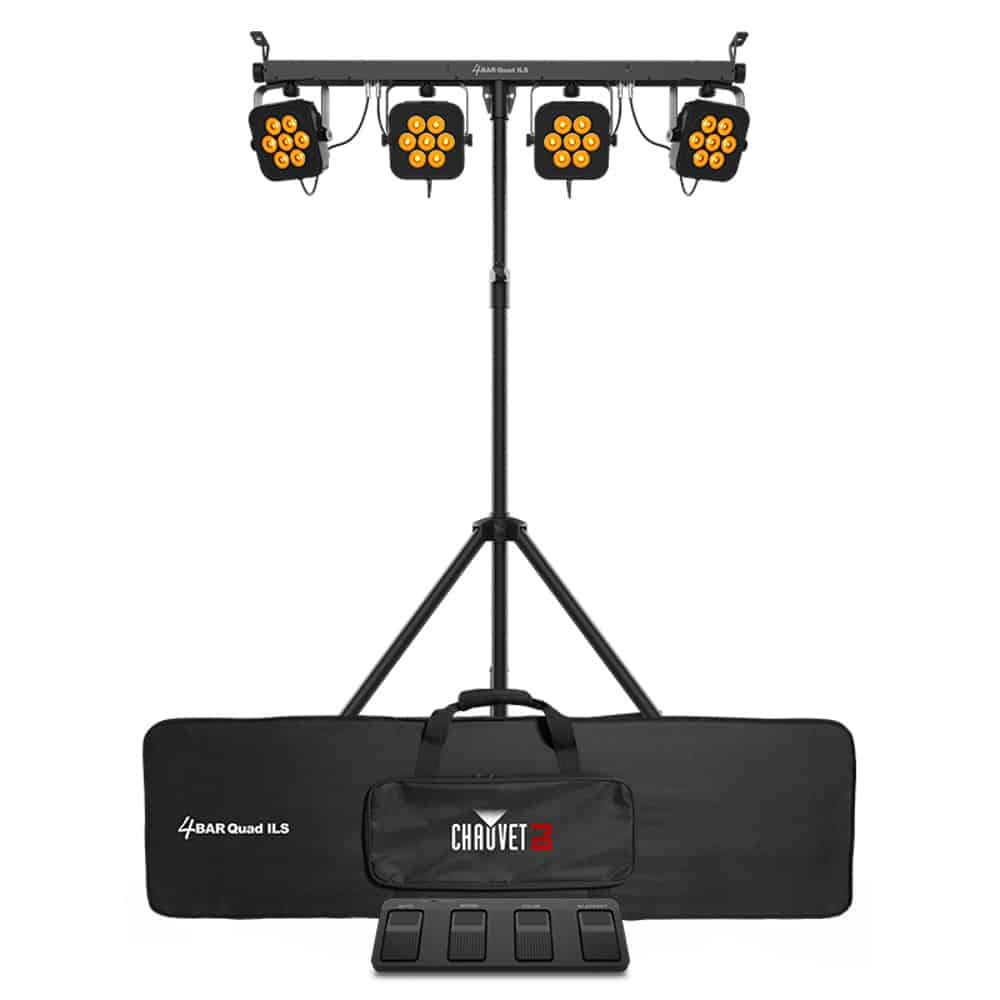

    Easily set up and tear down in minutes with the included tripod stand and carrying bags

    D-Fi™ USB compatibility for wireless Master/Slave or DMX control (D-Fi™ USB sold separately)

    Achieve total room or stage coverage with 4 individually adjustable heads

    Increase mounting options by safely mounting to truss using built-in bolts

Specifications

    DMX Channels:4, 6 or 19
    DMX Connectors:3-pin XLR
    Light Source:28 LEDs (quad-color RGBA) 3.5 W, (1.3 A), 50,000 hours life expectancy
    Strobe Rate:0 to 20 Hz
    Beam Angle:14°
    Field Angle:23°
    Illuminance:2,353 lux @ 2 m (per pod)
    Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
    Power and Current:
    80 W, 1.2 A @ 120 V, 60 Hz
    78 W, 0.6 A @ 230 V, 50 Hz
    Weight:12.2 lb (5.5 kg)
    Size:45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
    Approvals:CE, RoHS, UKCA
    Operating Frequency (D-Fi): : 2.412 to 2.484 GHz
    Operating Frequency (foot switch): : 433 MHz
    Max Unobstructed Distance (foot switch): : 100 ft (30.5 m)
    Footswitch battery: : 9 V
    Stand Height: : 7 ft 4 in (2.2 m)
    Fits Tripod Sizes: : 1.5 in (36.80 mm)
    Bracket Mounting Hole: : M10 (1.5 mm pitch)
    Weight (Controller): : 1.2 lb (0.6 kg)
    Size (Controller): : 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
    Optional Controllers: : IRC-6, D-Fi USB
